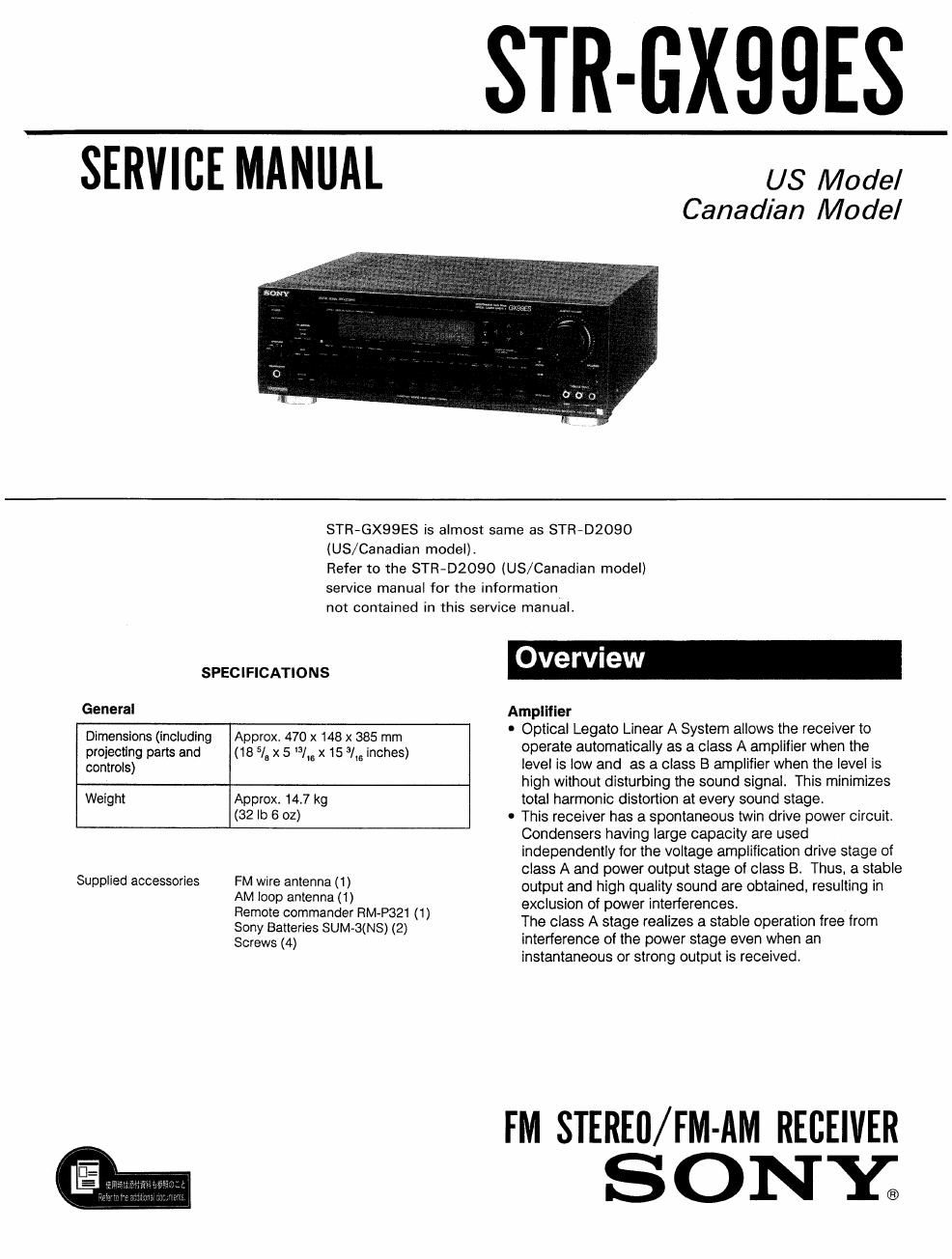

STR-GX99ES

SERVICE MANUAL us Model

Canadian Model

STR-GXQQES is almost same as STR-D2090
(US/Canadian model).

Refer to the STR-DZOQO (US/Canadian model)
service manual for the information

not contained in this service manual.

SPECIFICATIONS 0V6 VIEW

General Amplifier
Dimensions (including Approx. 470 x 148 x 385 mm . Optical Legato Linear A SyStem allows the receiver 0
projecting parts and (13 5/5 x 5 I"; x 15 3/15 inches) operate automatIcally as a class Aa'mplIerr when the.
controls) level Is low and as a class B amplifier when the level IS
high without disturbing the sound signal. This minimizes
Weight Approx. 14.7 kg total harmonic distortion at every sound stage.
(32 lb 6 oz) c This receiver has a spontaneous twin drive power circuit.

Condensers having large capacity are used
independently for the voltage amplification drive stage of
class A and power output stage of class 8. Thus, a stable

suppl'ed accessories :M 1"6 antenna (1) output and high quality sound are obtained. resulting in
Hymgsggfierggfiég RM_P321 (1) exclusion of power interferences
Sony Batteries SUM-3(NS) (2) The class A stage realizes a stable operatIon free from
Screws (4) interference of the power stage even when an

instantaneous or strong output is received.

FM STEREfl/FM-AM RECEIVER

SONY;
