Sony str dh 710 brochure

Page 1

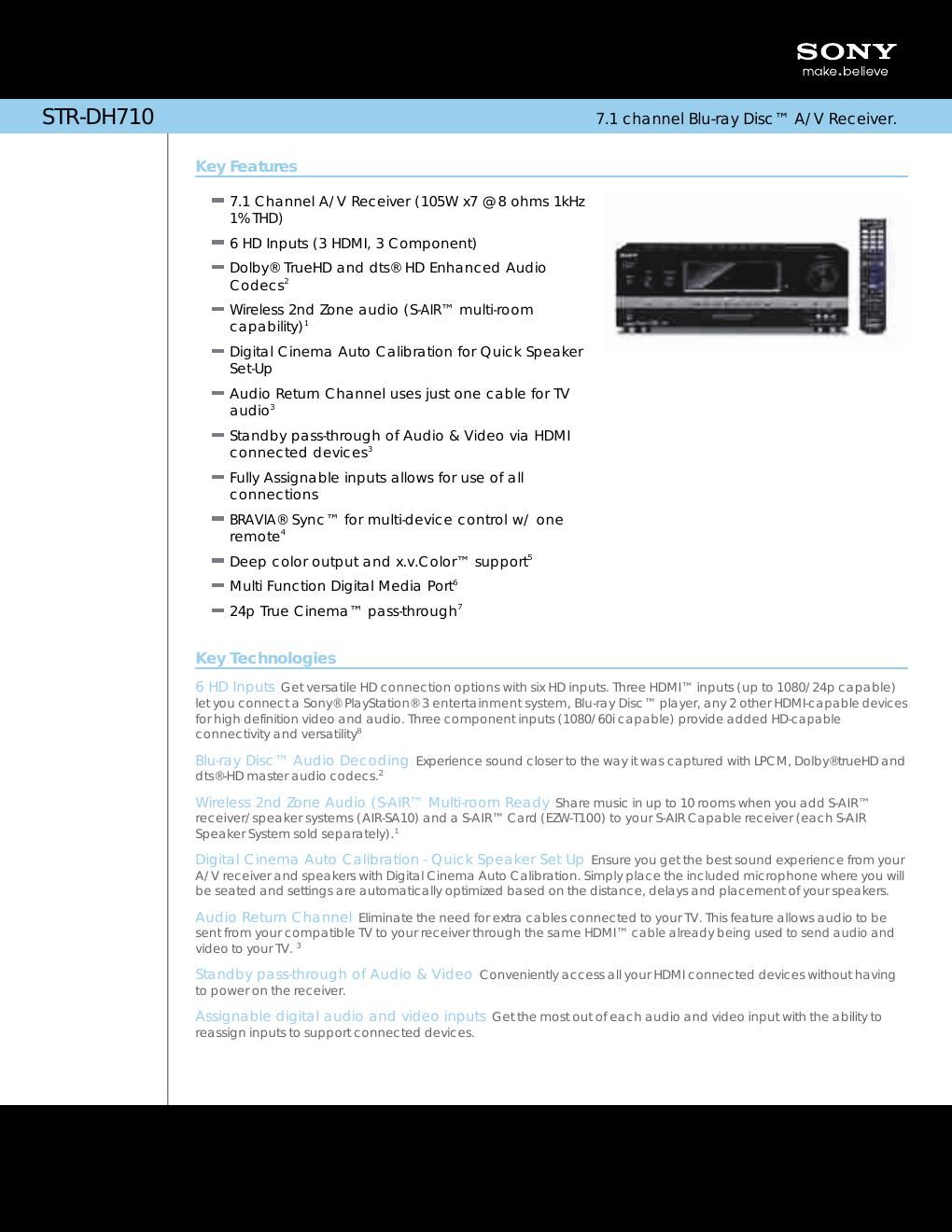

Sony Electronics Inc. - 16530 Via Esprillo - San Diego, CA 92127 - 1.800.222.7669 - www.sony.com Last Updated: 05/13/2010 STR -DH710 7.1 channel Blu - ray Disc -„¢ A/V Receiver.       Please visit the Dealer Source for current information at www.sony.com/dealersource Features General Power Consumption: 240W Power Stand By: 0.3W Auto Standby: Yes Display: 8 Seg. FL Panel: Mold, Black Pin Jack: Nickel Power Requirement: 120V 60Hz Remote Commander: U - RM; RM -AAU073 Sleep Timer: Yes Video A/V SYNC: Yes(Variable) A/V Sync Sampling Frequency: 96kHz A/V Sync Time (msec): 300msec Assignable Component Video IN: Yes Assignable HDMI Video IN: Yes BRAVIA ® SYNC -„¢ ( CEC Control): Yes HDMI Pass Through: Yes Theater Mode Selector: Yes Audio Return Channel: Yes HDMI -„¢ Video Output Capability: 1080p; 1080/24p; Deep Color; x.v.Color (xvYCC) Convenience Auto Tuning: Yes Amplifier (8Ohms 1kHz) THD RMS: 1% (8Ohms 20 -20kHz) THD: 0.09% 8Ohms 1kHz RMS: 105W + 105W 8Ohms 20 -20kHz: 95W + 95W Headphone Out: Yes(Gold) Night Mode: Yes Number of Amp channels: 7ch Portable Audio Enhancer: Yes Sound Field Program (2ch): 2 Sound Field Program (A.F.D.): 2 Sound Field Program (Headphone): 2 Sound Field Program (Movie): 8 Sound Field Program (Music): 10 Speaker Selector: A/B/A+B Speaker Terminal: Front(Screw)/Others (Push) 4 Ohm/8 Ohm Switching: No(8 Ohm only) Analog Direct: Yes Cinema Studio EX. A/B/C mode: Yes DSP: Titanium(DA788) Equalizer(F/C/Sur/Sur B) Bass,Mid,Treble: B,T/ - / - / - Sound Field Link (w Lock): Yes( -) Sub Woofer X' Over: 17 points (40 -200Hz) Type: Analog Bi -AMP: YES DCAC Band: 6 DCAC: Silver Mic: MONO Specifications S -Air Feature Multi Room (In case of Multi Source) Transfer Down Mixed 2ch Signal: Yes S -AIR Ready Transmittor: Yes Wireless Surround - Source for Headphone: Yes Wireless Surround - Surround Back Lch/Rch: Yes Wireless Surround - Surround Lch/Rch: Yes Inputs and Outputs A/V In/Out (S -Video I/O): Including Front AV: 4/1(0/0) Analog Audio In (Inc TV CEC)/Out (excl. tuner)/TV(CEC): 2/1/Yes Coaxial: 1/0 Component Video In/Out (Pass through): 3/1 DMPORT: 1 Digital Input Assign: Yes Front Input: AV(Gold) HDMI In/Out: (Front input): 3/1 Monitor Out (S -Video Out): 1(0) Opt. In/Out/TV(CEC): incl Front input & TV (CEC): 2/0/Yes Pre Out: SW x1 SPDIF UPDATE: Yes Tuner Auto Tuning: Yes Direct Tuning: Yes(RM) Preset Channel: TTL60 ( - / - /30/30) Station Name: Yes Decoding Format(S) 96k/24Bit PCM: Yes DTS 96/24: Yes DTS HD/DolbyTruHD/Dolby Digital+: Yes/Yes/Yes DTS NEO:6: Yes DTS -ES (MATRIX6.1/DISCRETE6.1): Yes (Yes/Yes) Dolby Digital EX: Yes Dolby Digital/DTS: Yes/Yes Dolby Dual Mono: Yes Dolby Prologic: Yes Dolby Prologic II: Yes Dolby Prologic IIx: Yes LPCM (2CH/5.1CH/7.1CH) thru HDMI: Yes/Yes/Yes Dolby Prologic IIz: Yes Color: Black UPC Code: 027242779976 1. Transmits up to 164 feet. Signal and sound quality may vary. 2. Dolby ® True - HD and dts ® - HD Master Audio decoding require HDMI -„¢ cable and capable source device (both sold separately). 3. Requires sources connected with HDMI -„¢ cables (sold separately) and compatible HDTV. Sound quality will vary depending on source. 4. Works with other BRAVIA ® Sync or Theatre Sync -„¢ labeled home audio/video products when connected via HDMI -„¢ interface. 5. Deep Color and x.v. Color -„¢ technology are supported only when source product, HDMI -„¢ cable, media and HDTV all support this feature. 6. iPod ® support is limited to the following players with the supplied dock: iPod® touch, iPod ® classic, iPod ® Nano 1st, 2nd & 3rd generation, iPod® 4th& 5th generation & iPod ® Mini. The optional TDM -IP50 dock will support iPhone ® as well. 7. 24p playback capable device required, sold separately 8. HDMI cable required and sold separately. © 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, BRAVIA, BRAVIA Sync, x.v. Color, and their respective logos are trademarks of Sony. Blu - ray Disc is a trademark. Dolby is a registered trademark of Dolby Laboratories. dts is a trademark of dts Inc. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice. Non - metric weights and measures are approximate.
