Sony str dh 100 brochure

Page 1

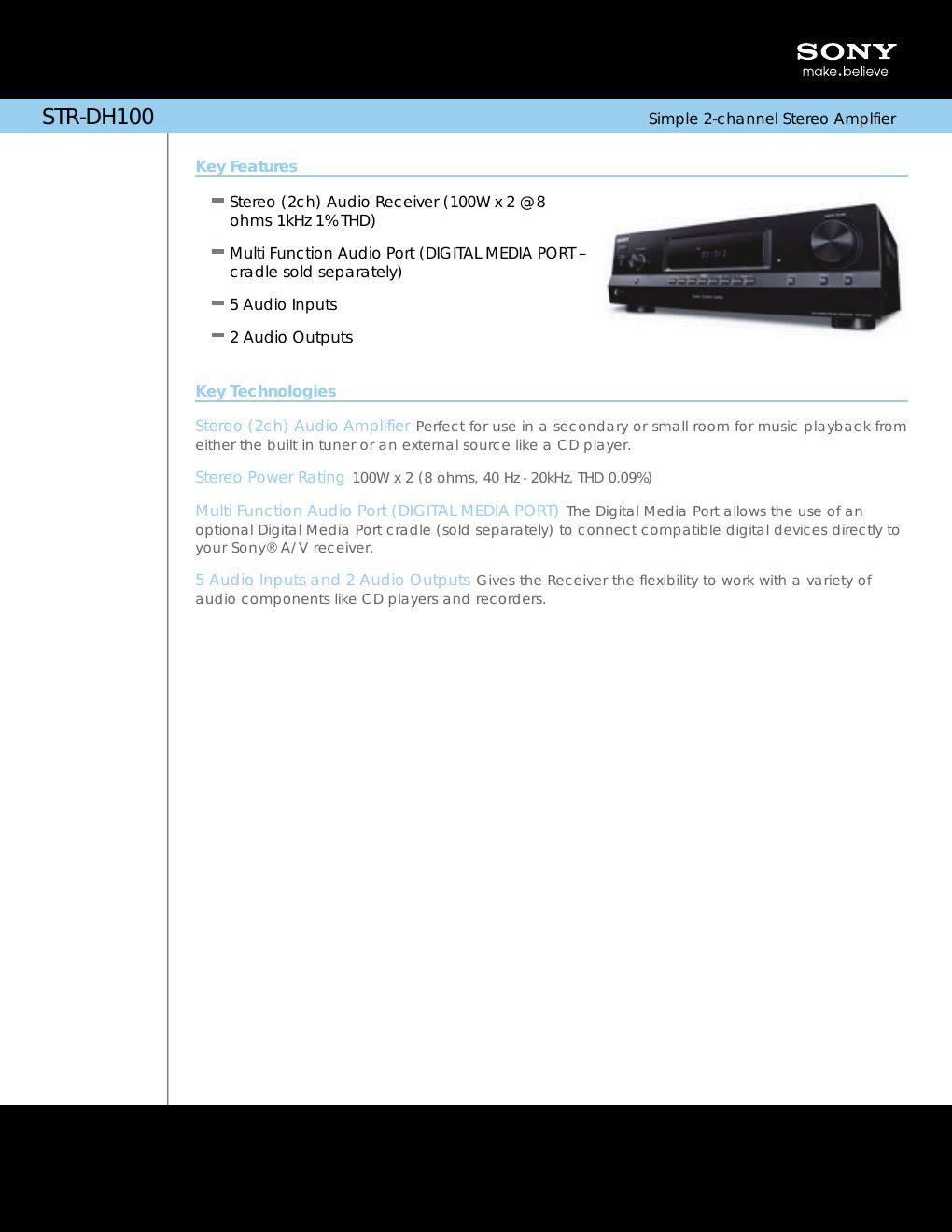

Sony Electronics Inc. - 16530 Via Esprillo - San Diego, CA 92127 - 1.800.222.7669 - www.sony.com Last Updated: 05/13/2010 STR -DH100 Simple 2 - channel Stereo Amplfier       Please visit the Dealer Source for current information at www.sony.com/dealersource Features General Power Consumption: 200W Power Stand By: 0.3W Display: 8 Seg. FL Panel: Mold, Black Pin Jack: Nickel Power Requirement: 120V60Hz Remote Commander: U - RM; RM -AAU055 Sleep Timer: Yes Convenience Auto Tuning: Yes Amplifier (8Ohms 1kHz) THD RMS: 1% (8Ohms 20 -20kHz) THD: 0.09% 8Ohms 1kHz RMS: 100W + 100W 8Ohms 20 -20kHz: 90W + 90W Headphone Out: Yes (Gold) Number of Amp channels: 2ch Speaker Selector: A/B/A+B Speaker Terminal: A: Push, B: Push Analog Direct: Yes Equalizer(F/C/Sur/Sur B) Bass,Mid,Treble: Bass & Treble Type: Analog Specifications Inputs and Outputs Analog Audio In (Inc TV CEC)/Out (excl. tuner)/TV(CEC): 5/2/No DMPORT: 1 (No OSD Support) Tuner Auto Tuning: Yes Direct Tuning: Yes(RM) Preset Channel: TTL60 ( - / -/30/30) Sirius Ready: No Station Name: Yes XM Ready: No Service and Warranty Information Limited Warranty Term: 2 Years Supplied Accessories Instruction Manual FM Wire Antenna Remote Commander ® Remote Control (RM -AAU055) AM Loop Antenna Size AA Batteries (2) Optional Accessories CD Player Stereo Cables Color: Black UPC Code: 027242753570 1. Requires Digital Media Port accessory compatible with the device (sold separately). 2. iPod ® support is limited based upon which optional Digital Media Port is being used. The TDM - IP10 will support the following players: iPod ® touch, iPod ® classic, iPod ® Nano 1st, 2nd & 3rd generation, iPod ® 4th& 5th generation &iPod ® Mini. The TDM - IP 50 adds iPhone -„¢ support as well. ©2009 Sony Electronics Inc.  Sony and its logo are trademarks of Sony. All other trademarks are property of their respective owners.  All rights reserved. Features and specifications are subject to change without notice.
