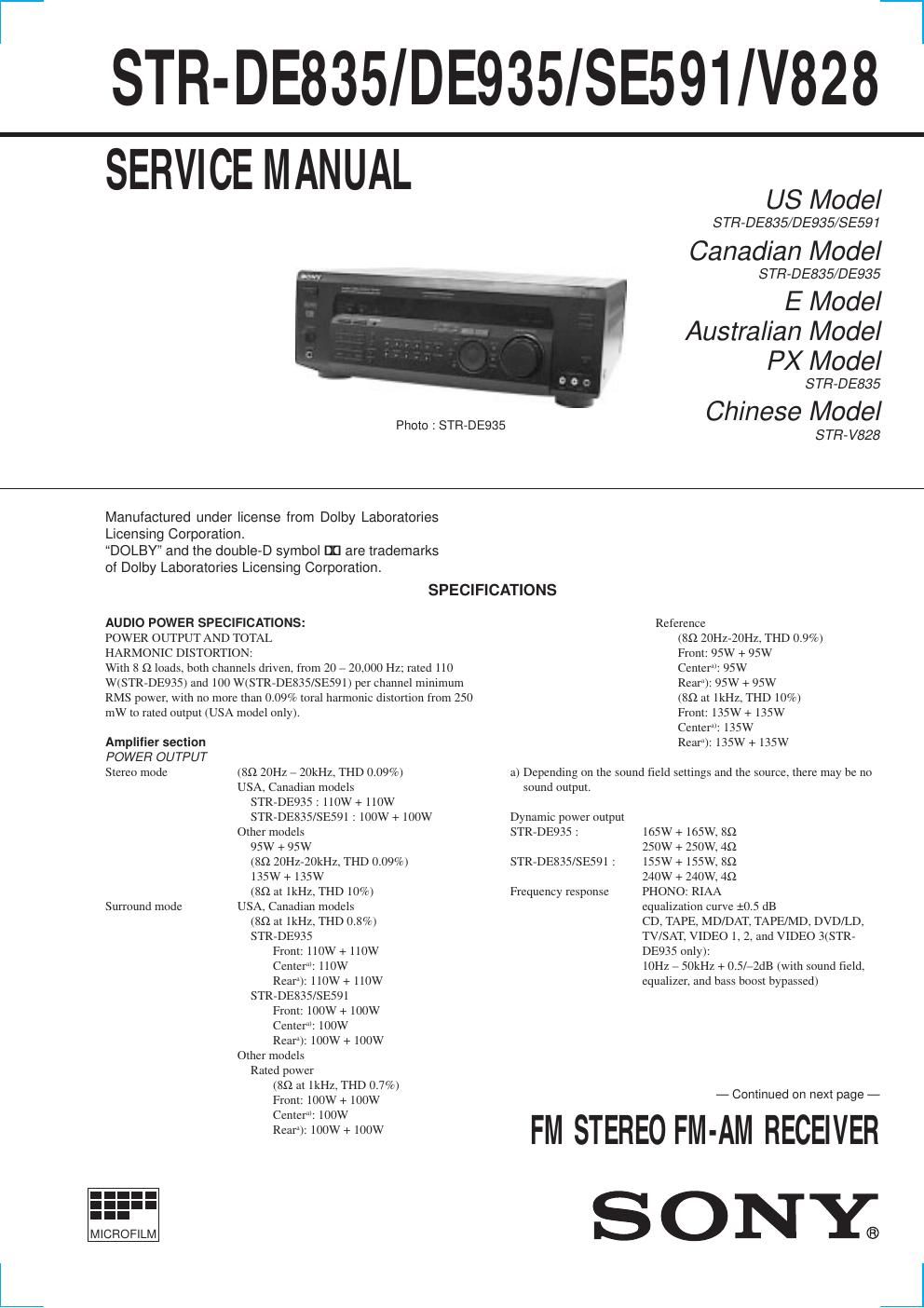

STR-DE835/DE935/SE591/V828

SERVICE MANUAL

Photo : STR-DE935

US Model

STH-DE835/DE935/SE591

Canadian Model

STFi-DE835/DE935

E Model
Australian Model
PX Model

STR-DE835

Chinese Model

S TR- V828

Manufactured under license from Dolby Laboratories

Licensing Corporation.

DOLBY and the double-D symbol [It] are trademarks

of Dolby Laboratories Licensing Corporation.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS:
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8 £2 loads, both channels driven. from 20 - 20,000 Hz; rated 110
W(STR-DE935) and 100 W(STR-DE835/SE591) per channel minimum
RMS power. with no more than 0.09% total harmonic distortion from 250

mW to rated output (USA model only).

Amplifier section
POWER OUTPUT

Stereo mode

Surround mode

.-
MICROFILM

(89 201-12 - 20kHz,T1-1D 0.09%)
USA. Canadian models
STR-DEBS : 110W+ 110W
STR-DEX35/SES91 : 100W+ 100W
Other models
95W + 95W
(89 20Hz-20kHz, THD 0.09%)
135W + 135W
(89 at 1kHz, THD 10%)
USA, Canadian models
(89 at 1kHz,THD 0.8%)
STR-DEBS
Front: 110W + 110W
Center: 110W
Rear): 110W + 110W
STR-DEX35/SES91
Front: 100W + 100W
Center: 100W
Rear): 100W + 100W
Other models
Rated power
(89 at 1kHz,THD 0.7%)
Front: 100W + 100W
Center: 100W
Rear): 100W + 100W

Reference
(89 20Hz-20Hz,T1-1D 0.9%)
Front: 95W + 95W
Center": 95W
Rear): 95W + 95W
(89 at 1kHz.T1-1D 10%)
Front: 135W+ 135W
Center: 135W
Rear): 135W + 135W

:1) Depending on the sound field settings and the source, there may be no
sound output.

Dynamic power output

STR-DE935 : 165W + 165W» 89
250W + 250W, 4Q

STR-DE835/SE591 : 155W + 155W, 89
240W + 240W, 49

Frequency response PHONO: RIAA

equalization curve 10.5 dB

CD, TAPE, MD/DAT, TAPE/MD. DVD/LD,
TV/SAT. VIDEO 1, 2, and VIDEO 3(STR-
DE935 only):

101-11 - 501(1-12 + 0.5l-2dB (with sound field,
equalizer, and bass boost bypassed)

- Continued on next page -
