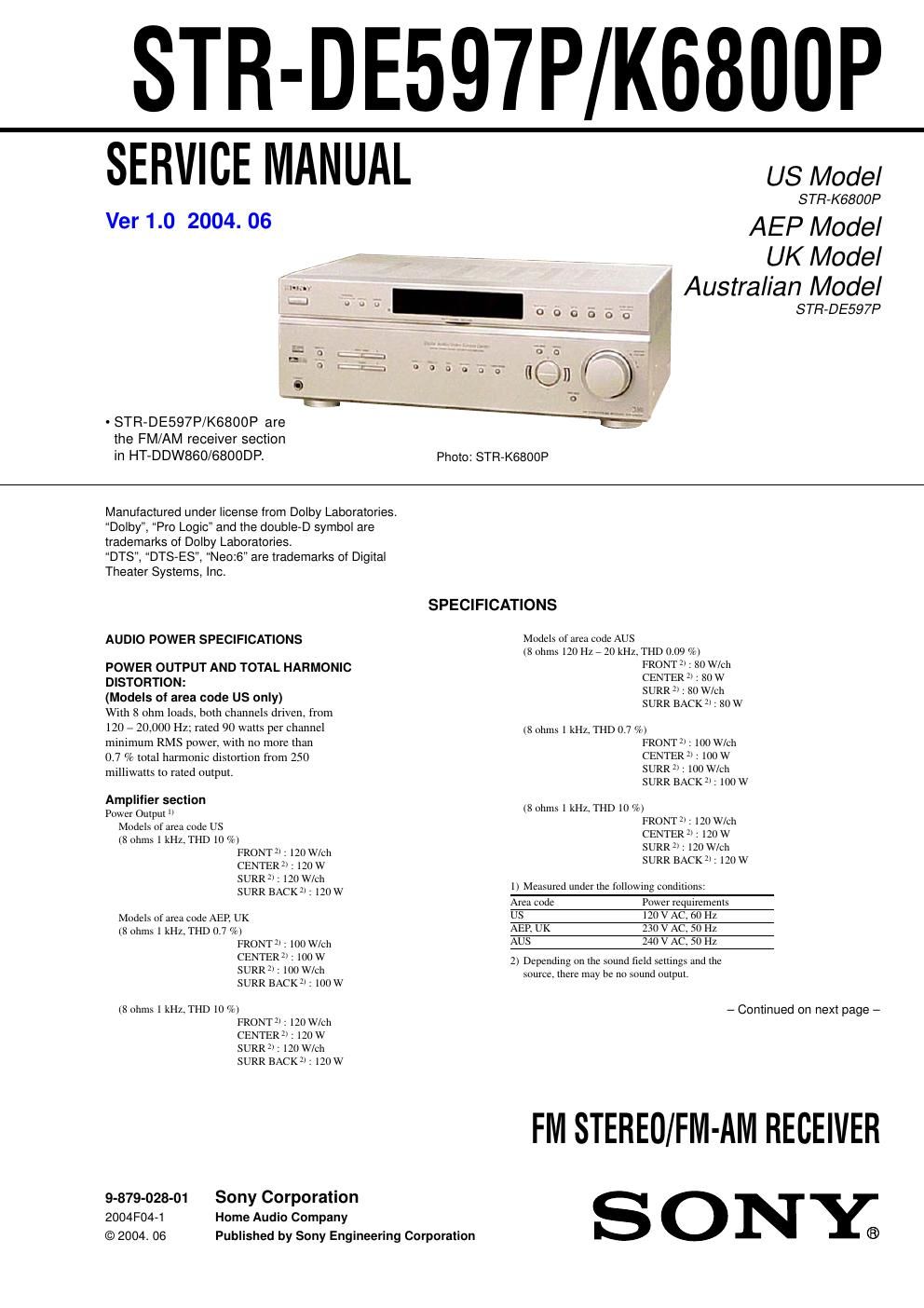

Sony str de 597p rec service manual

Page 2

STR-DE597 P/K6800P

Inputs (Analog)
MULTI CH IN, SArCD/
CD, MD/TAPE. DVD.
VIDEO 1, 2

Inputs (Digital)
DVD (Coaxial)

VIDEO 2, SArCD/CD
(Optical)

Outputs (Analog)

MD/IAIE (OUT), Volmge: 800 mV
VIDEO 1 (AUDIO OUT) Impedance: 10 kllOOIimS
SUB WOOFER Voliage: 2 V

Impedance: 1 kiloohms

Reproduction frequency range:
28 , 20,000 Hz

dB,1d

FM tuner section

Tuning range 87.5 , 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms. unbalanced
Intermediate frequency 10.7 MHz

AM tuner section
Tuning range
Models of area code US
With lOrkHz tuning scale: 530 , 1,7l0 kHz 1»
Witli 91H; tuning scale; 531 , 1,7l0 kHz 3!
Models of area code AEP, UK. AUS
Witli 91H; tttning scale; 531 , 1,602 kHz
Antenna Loop antenna
Ititerniediate frequency 450 kHz

3) You can change the AM tuning scale to 9 kHz or 10 kHz.
After tuning in any AM station, turn off the receiver. While
holding down PRESET TUNING + or TUNING +, press
l/L'). All preset stations will be erased when yott change
the tttning scale. To reset the scale to 10 kHz (or 9 kHz).
repeat the procedure.

Video section
Inputs/Outputs
Video: 1 Vprp. 75 ohms
COMPONENT VIDEO:
(Except for models of area code AEP. UK)
v; 1 Vprp, 75 ohms
Pa/CE/BrY: 0.7 Vprpl

75 ohms
PR/CR/RrY: 0.7 Vprpi
75 ohms

80 MHz HD Pass Through

General

Power requiremenrs

Area code Power reqt reinent.

US 120VAC,6() Hz

AEP UK 230V A 0/60 Hz

AUS 0 V A 0 Hz

Power consumption 220 w

Power consumption (during standby mode)
0.3 w

Dimensions (w/h/d) (Approx)
430 x 157.5 x 312 mm
(167/21 x 6m x 12 an
inches) including
projecting parts and
controls

Mass (Approx.) 13.0 kg (17 lb 11 oz)

Design and specifications are subject to change
without notice.

- Abbrevimion
AUS :Ausimlian model
