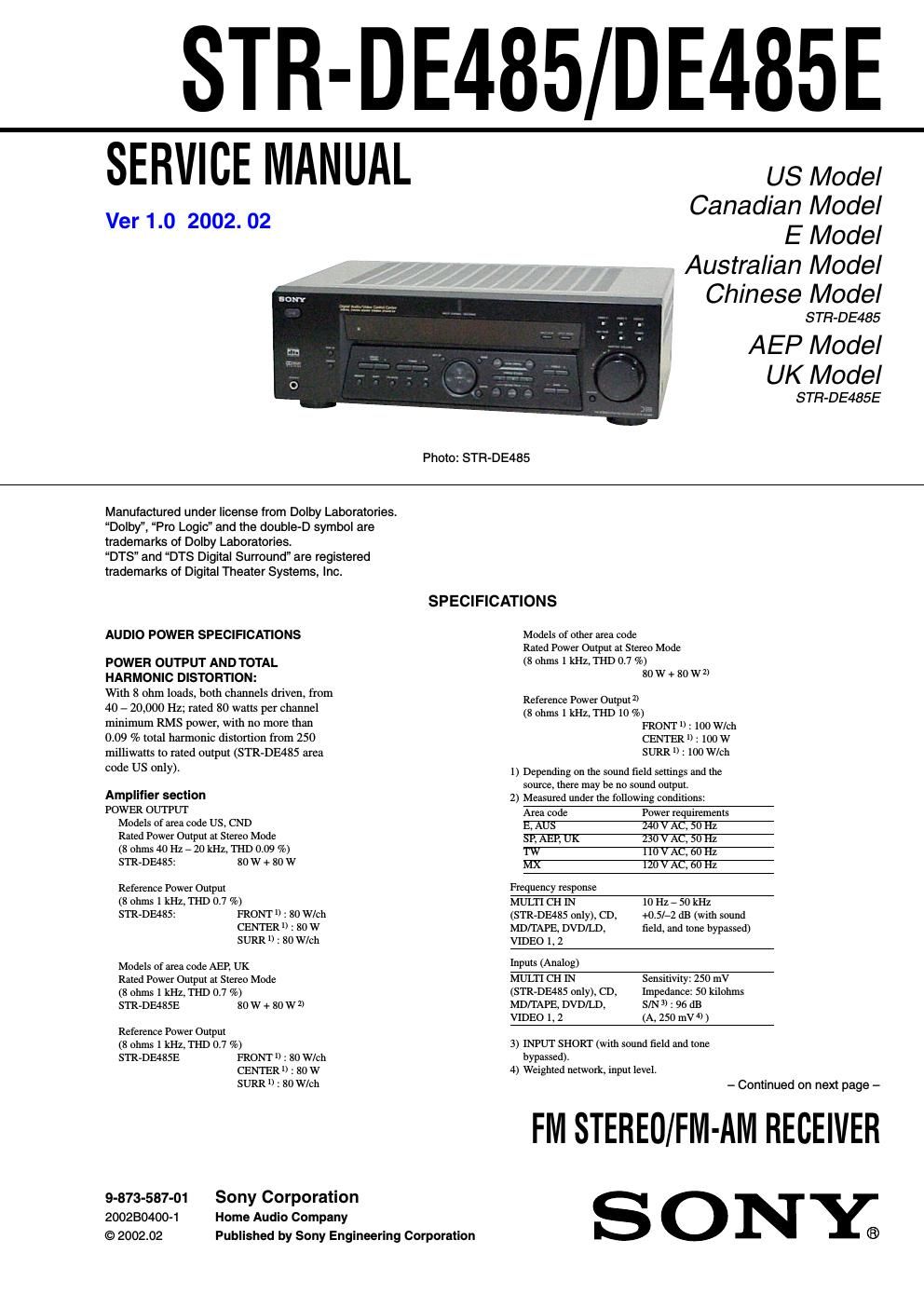

Page 1
2
STR-DE485/DE485E
Inputs (Digital)DVD/LD (Coaxial) Sensitivity: -“
Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
VIDEO 2 (Optical) Sensitivity: -“
Impedance: -“
S/N: 100 dB
(A, 20 kHz LPF)
Outputs
MD/TAPE (REC Voltage: 250 mV
OUT), VIDEO1 Impedance: 10 kilohms
(AUDIO OUT)
SUB WOOFER Voltage: 2 V Impedance: 1 kilohms
Tone
Gain levels: ±6 dB, 1 dB step
FM tuner sectionTuning range 87.5 - 108.0 MHz
Antenna terminals 75 ohms, unbalanced
Intermediate Frequency 10.7 MHz
Sensitivity
Mono: 18.3 dBf, 2.2 µV/75 ohms
Stereo: 38.3 dBf, 22.5 µV/75 ohms
Usable sensitivity 11.2 dBf, 1 µV/75 ohms
S/N
Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response 30 Hz -“ 15 kHz,
+0.5/-“2 dB
Selectivity 60 dB at 400 kHz
AM tuner sectionTuning range
Models of area code US, CND
With 10-kHz tuning scale: 530 -“ 1710 kHz
5)
With 9-kHz tuning scale: 531 -“ 1710 kHz 5)
Models of area code E2, MX
With 10-kHz tuning scale: 530 -“ 1610 kHz 5)
With 9-kHz tuning scale: 531 -“ 1602 kHz 5)
Models of area code AUS, SP, AEP, UK, TW
With 9-kHz tuning scale: 531 -“ 1602 kHz
Antenna Loop antenna
Intermediate Frequency 450 kHz
Usable sensitivity 50 dB/m (at 1,000 kHz or
999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5 % (50 mV/m, 400 Hz)
Selectivity
At 9 kHz: 35 dB
At 10 kHz: 40 dB
5) You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. Hold down PRESET TUNING + and
press ?/1 . All preset stations will be erased when
you change the tuning scale. To reset the scale to
10 kHz (or 9 kHz), repeat the procedure.
Video sectionInputs
Video: 1 Vp-p, 75 ohms
Outputs
Video: 1 Vp-p, 75 ohms
GeneralPower requirementsArea code Power requirementsUS, CND, MX 120 V AC, 60 HzAEP, UK 230 V AC, 50/60 HzSP 220 -“ 230 V AC, 50/60 HzE 120/220/240 V AC, 50/60 HzTW 110 V AC, 50/60 HzAUS 240 V AC, 50Hz
Power consumption
Area code Power consumptionUS, MX STR-DE485: 180 WCND STR-DE485: 260 VAAEP, UK STR-DE485E: 155 WAUS, SP, E STR-DE485: 155 WTW STR-DE485: 400 W
Power consumption (during standby mode)
0.5 W
Dimensions 430 × 145 × 298 mm
(16
7/8 × 5 6/8 × 11 6/8 in.)
including projecting parts
and controls
Mass (Approx.) 7.0 kg (15lb 7 oz)
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
- STR-DE485E/DE485 only
Remote commander RM-U306 (1)
R6 (size-AA) batteries (2)
Design and specifications are subject to change
without notice.
- Abbreviation
CND : Canadian model
AR : Argentina model
AUS : Australian model
CH : Chinese model
MX : Mexican model
SP : Singapore model
TW : Taiwan model
Page 2
3
STR-DE485/DE485E
MODEL IDENTIFICATION
- BACK PANEL -
Part No.
MODEL PART No.
US 4-238-188-0s
Canadian 4-238-188-1s
Australian 4-238-188-2s
Singapore 4-238-188-3s
Chinese 4-238-188-4s
E 4-238-188-5s
AEP 4-238-188-6s
UK 4-238-188-7s
Mexican 4-238-188-8s
Argentina 4-238-188-9s
Taiwan 4-238-189-9s
1.5 k -„¦ 0.15 µF AC
voltmeter
(0.75 V) To Exposed Metal
Parts on Set
Earth Ground
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suit-
able. (See Fig. A)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
