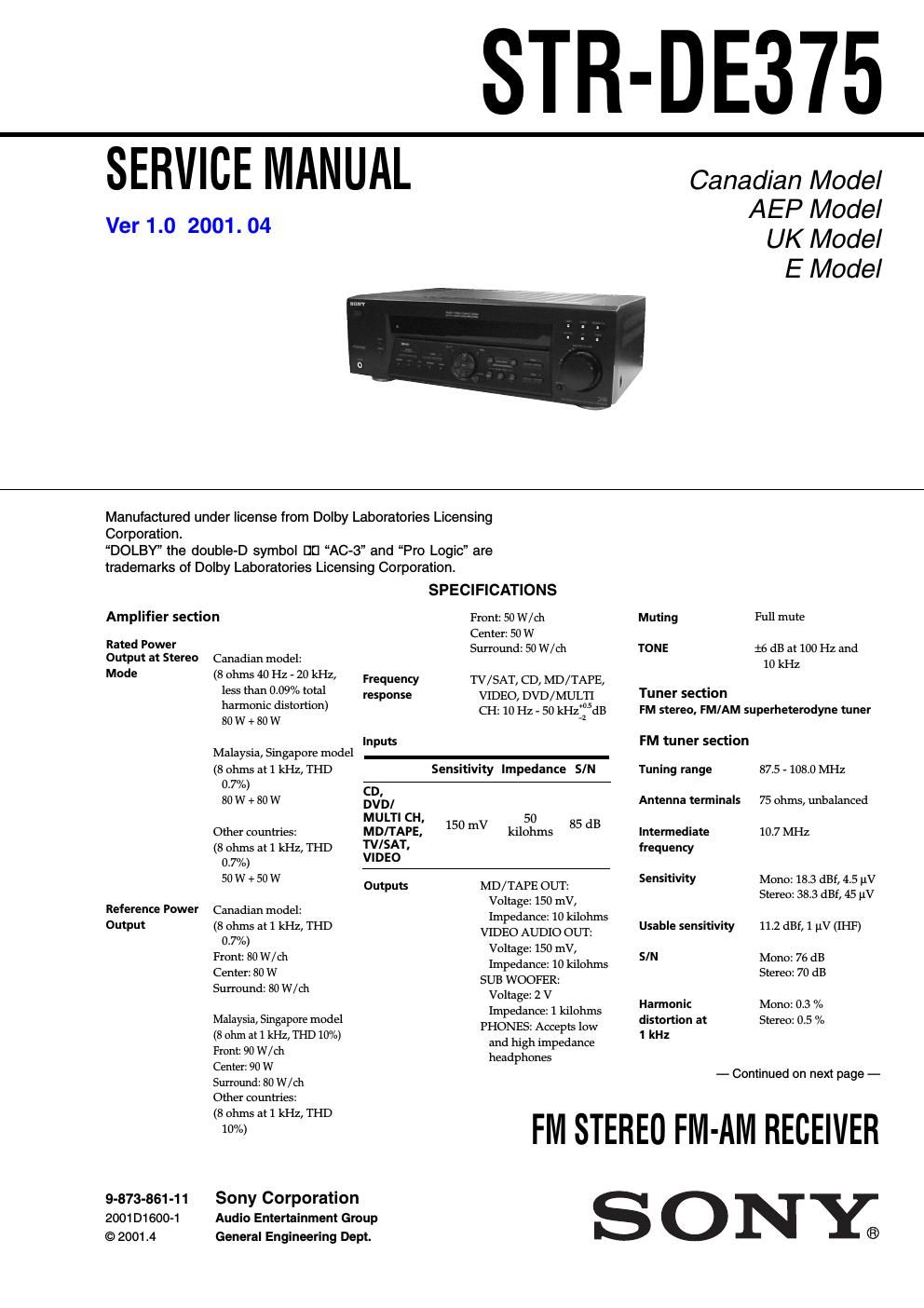

Extracted text from sony str de 375 service manual (Ocr-read)
Page 1
2
STR-DE375
MODEL IDENTIFICATION
- BACK PANEL -
Parts No.
MODEL PARTS No.
AEP model 4-232-119-0s
UK model 4-232-119-1s
Malaysia,Singapore model 4-232-119-3s
E model 4-232-119-4s
Canadian model 4-232-119-5s
Argentina model 4-232-119-7s
System
Power
requirementsPower
consumption
Dimensions
Mass
(Approx.)
Supplied
accessories Tuner section: PLL
quartz-locked digital
synthesizer system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier section:
Pure-complementary
SEPP
Canadian model:
120 V AC, 60 Hz
Malaysia, Singapore model
220-230 V AC,
50/60 Hz
Other countries:
120/220/240 V AC,
50/60 HzCanadian model:
240 VA
Standby mode: 0.5 W
Malaysia, Singapore model
175 W
Standby mode: 0.5 W
Other countries:
160 W
Standby mode: 0.5 W
430 x 145 x 298 mm
Malaysia, Singapore model
5.5 kg
Canadian and other
countries:
6 kg (13 lb 4 oz)
General
The specification measured
is under
-230 AC 50 Hz condition
(Malaysia, Singapore model)
Design and specifications are
subject to change without notice. -FM wire antenna (1)
-AM loop antenna (1)
-Remote commander
(remote) (1)
-Size AA (R6) batteries (2) * You can change the AM tuning interval
between 9 kHz and 10 kHz. Turn off the
receiver and press ?/1 (power) for more
than 4 seconds until INITIAL appears.
1) After tuning in any AM station, turn
off the receiver.
2) Hold down PRESET TUNING +
button and press the ?/1 (power)
button. 9k STEP appears.
To change to 10k Step, repeat step 1 and 2
until 10k STEP appears. Note that all
preset stations, index names and sound
field are cleared after you make the
procedure above. Separation
Frequency
response
Selectivity
+0.5
-2
AM tuner section
45 dB at 1 kHz
30 Hz - 15 kHz dB
60 dB at 400 kHz
Tuning range
Antenna
Intermediate
frequency
Usable sensitivity
S/N
Harmonic
distortion
SelectivityMalaysia, Singapore model
531 - 1602 kHz (9 kHz
step)
Canadian model:
530 - 1710 kHz (10 kHz
step)*
531 - 1710 kHz (9 kHz
step)*
Other countries models:
530 - 1610 kHz (10 kHz
step)*
531 - 1602 kHz (9 kHz
step)*
Loop antenna
450 kHz
50 dB/m (at 999 kHz)
54 dB (at 50 mV/m)
0.5 % (50 mV/m, 400 Hz)
At 9 kHz: 35 dB
At 10 kHz: 40 dB
Page 2
3
STR-DE375
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15 ยตF
1.5 k-ฆAC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
ATTENTION AU COMPOSANT AYANT RAPPORT
ร- LA SรCURITร!
LES COMPOSANTS IDENTIFรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES SONT
CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIรSES SONY
DONT LES NUMรROS SONT DONNรS DANS CE MANUEL OU
DANS LES SUPPรMENTS PUBLIรS PAR SONY.
TABLE OF CONTENTS
1. GENERAL
ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
2. TEST MODE ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
3. DIAGRAMS
3-1. Circuit Boards Locationยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท7
3-2. Block Diagramยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท9
3-3. Printed Wiring Board Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท10
3-4. Schematic Diagram Main Section (1/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท11
3-5. Schematic Diagram Main Section (2/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท12
3-6. Schematic Diagram Main Section (3/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท13
3-7. Printed Wiring Board Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท14
3-8. Schematic Diagram Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท15
3-9. Printed Wiring Board Power Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท16
3-10. Schematic Diagram Power Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท17
3-11. IC Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท18
3-12. IC Pin Function Descriptionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท18
4. EXPLODED VIEWS
4-1. Front Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท20
4-2. Chassis Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท21
5. ELECTRICAL PARTS LIST ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท22
