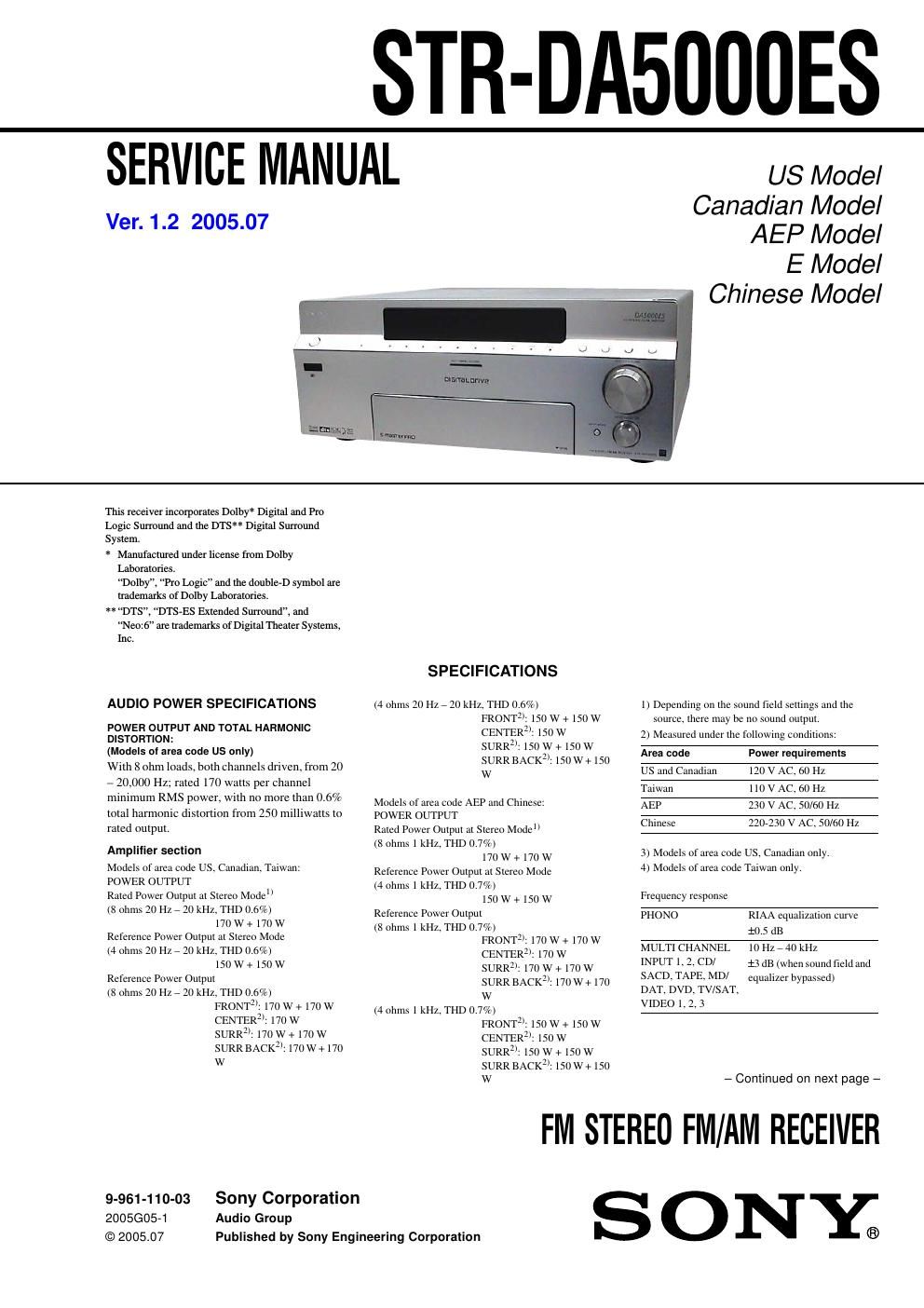

Page 1

STR-DA5000ES

SERVICE MANUAL

Ver. 1.2 2005.07

US Model
Canadian Model
AEP Model

E Model
Chinese Model

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under License from Dolby
Laboratories.
"Dolby", Pro Logic" and the doubleeD symbol are
trademarks of Dolby Laboratories.

**DTS", "DTSVES Extended Surround", and
"Neo:6" are trademarks of Digital Theater Systems,
Inc.

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTIDN:

(Models 0! area code US only)

With 8 Ohm loads, both channels driven, from 20
- 20,000 Hz; rated 170 watts per channel
minimum RMS power, with no more than 0.6%
total harmonic distortion from 250 milliwatts to
rated output.

Amplifier section

Modeis of area code US, Canadian, Taiwan:

POWER OUTPUT

Rated Power Output at Stereo Mode

(3 ohms 20 Hz , 20 kHz, THD 0.6%)
170 w + 170 w

Reterence Power Output at Stereo Mode

(4 ohms 20 Hz , 20 kHz, THD 0.6%)
150 w + 150 w

Reterenee Power Output

(8 ohms 20 Hz , 20 kHz, THD 0.6%)
FRONTZ: 170 w + 170 w
CENTER: 170 w
SURRZ: 170 w + 170 w
SURR BACK: i70w +170
w

9-961-110-03 Sony Corporation
2005605-1 Audio Group
© 2005.07

Published by Sony Engineering Corporation

SPECIFICATIONS

(4 ohms 20 Hz , 20 kHz, THD 0.5%)
FRONTZI: 150 w +150 w
CENTER: 150 w
SURRZI: 150 w +150 w
SURR BACKZI: 150 w +150
w

Modeis of area code AEP and Chinese:

POWER OUTPUT

Rated Power Output at Stereo Mode

(8 ohms i kHz, THD 0.7%)
170 w + 170 w

Reference Power Output at Stereo Mode

(4 ohms l kHz, THD 0.7%)
150 w + 150 w

Reference Power Output

(8 ohms 1 kHz, THD 0.7%)
FRONTZI: 170 w + 170 w
CENTER: 170 w
SURRZI: 170 W +170 w
SURR BACKZ: i7o w +170
w

(4 ohms l kHz, THD 0.7%)
FRONT; 150 w +150w
CENTERZI: 150 W
SURRZI: 150 w +150 w
SURR BACKZI: 150 w +150
w

1) Depending on the sound field settings and the
Source, there may be no sound output.

2) Measured under the following condition, .

Area code Power requirements

US and Canadian 120 V AC, 60 Hz

Taiwan 1 10 V AC, 60 Hz

AEP 230 V AC, 50/60 Hz

Chinese 770230 V AC, 50/60 Hz

3) Models of area code US, Canadian only.
4) Models of area code Taiwan onIyr

Frequency response

PHONO RIAA equalization curve
i0.5 dB

MULTI CHANNEL 10 Hz 7 40 kHz

INPUT 1, 2, CD/ :7) dB (when sound field and

SACD, TAPE, MD/
DAT, DVD, TV/SAT,
VIDEO 1, 2, 3

equalizer bypassed)

- Continued on next page -

FM STEREO FM/AM RECEIVER

SONY;
