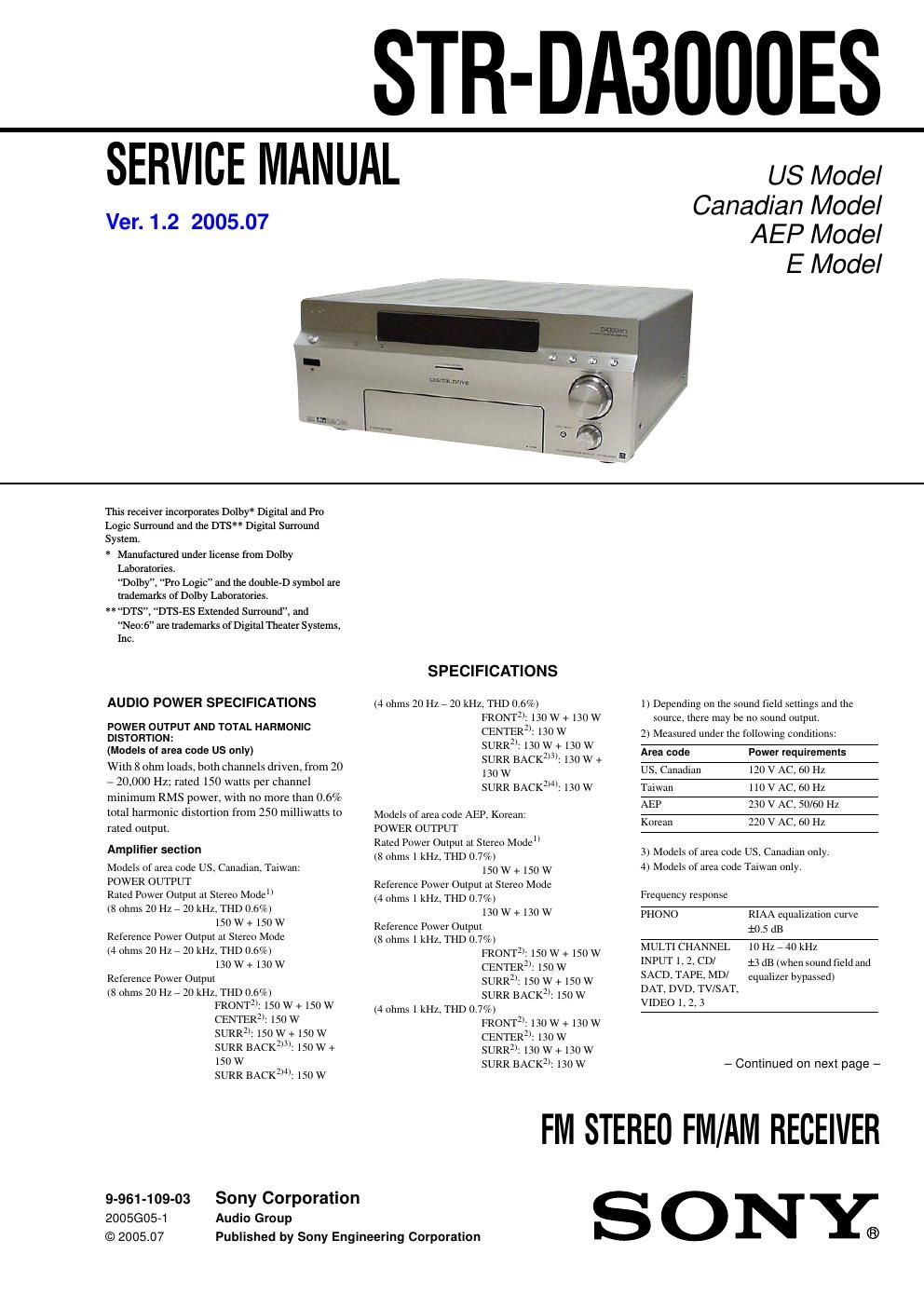

Page 1

TR-DA3000ES

SERVICE MANUAL

Ver. 1.2 2005.07

US Model
Canadian Model
AEP Model

E Model

This receiver incorporates Dolby* Digital and Pro

Logic Surround and [he DTS** Digital Surround

System.

* Manufactured under license from Dolby
Laboratories.
Dolby". Pro Logic" and the doubleeD symbol are
trademarks of Dolby Laboratories.

**DTS", DTSVES Extended Surround", and
Neo:6" are trademarks or Digital Theater Systems,
Inc.

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTIDN:

(Models of area code US only)

With 8 ohm loads. both channels driven, from 20
- 20,000 Hz; rated 150 watts per channel
minimum RMS power, with no more than 0.6%
total harmonic distortion from 250 milliwans 10
rated Output.

Amplifier section

Models of area code US, Canadian. Taiwan:

POWER OUTPUT

Rated Power Output at Stereo Mode

(2; ohms 20 Hz 7 20 kHz, Tl-lD 0.6%)
150 w + 150 w

Reference Power Output at Stereo Mode

(4 ohms 20 Hz 7 20 kHz, Tl-lD 0.6%)
130 w + 130 w

Reference Power Output

(2; ohms 201-11 7 20 kHz, 11-11) 0.6%)
FRONTZ: 150w + 150w
CENTER . 50 w
SURR: 150 w + 150 w
SURR BACKZW: 150 w +
150 w
SURR BACKZW: 150 w

9-961-109-03 Sony Corporation
2005605-1 Audio Group
© 2005.07

Published by Sony Engineering Corporation

SPECIFICATIONS

(4 ohms 20 Hz , 20 kHz. Ti-iD 0.6%)
FRONTZ): 130 w + 130w
CENTERZI: 130 w
SURRZ): 130 w + 130 w
SURR BACK: 130 w +
130 w
SURR EACKZW: 130 w

Models of area code AEP, Korean:

POWER OUTPUT

Rated Power Output at Stereo Mode

(8 ohms 1 kHz, THD 0.7%)
150 w + 150 w

Reference Power Output at Stereo Mode

(4 ohms 1 kHz, THD 0.7%)
130 w + 130 w

Reference Power Output

(8 ohms 1 kHz, THD 0.7%)
FRONTZI: 150 w + 150 w
CENTERZI: 150 w
SURRZI: 150 w + 150w
SURR BACKZ): 150 w

(4 ohms 1 kHz, THD 0.7%)
FRONTZI' 130 w + 130 w
CENTERZI: 130 w
SURRZI: 130 w + 130w
SURR BACKZ): 130 w

1) Depending on the sound field settings and the
source. there may be no sound output.

2) Measured under the following conditions:
Area code Power requirements

US, Canadian 120 V AC, 60 Hz

Taiwan 1 10 V AC, 60 Hz
AEP 230 V AC, 50/60 Hz
Korean 220 V AC, 60 Hz

3) Models of area code US, Canadian only.
4) Models of area code Taiwan only

Frequency response

PHONO RIAA equalizaiion curve
fl).5 dB
MULTI CHANNEL 10 Hz 7 40 kHz

INPUT 1, 2. CD/
SACD. TAPE, MD/
DAT. DVD, TV/SAT,
VIDEO I, 2, 3

fl dB (when sound field and
equalizer bypassed)

- Continued on next page -

FM STEREO FM/AM RECEIVER

SONYe
