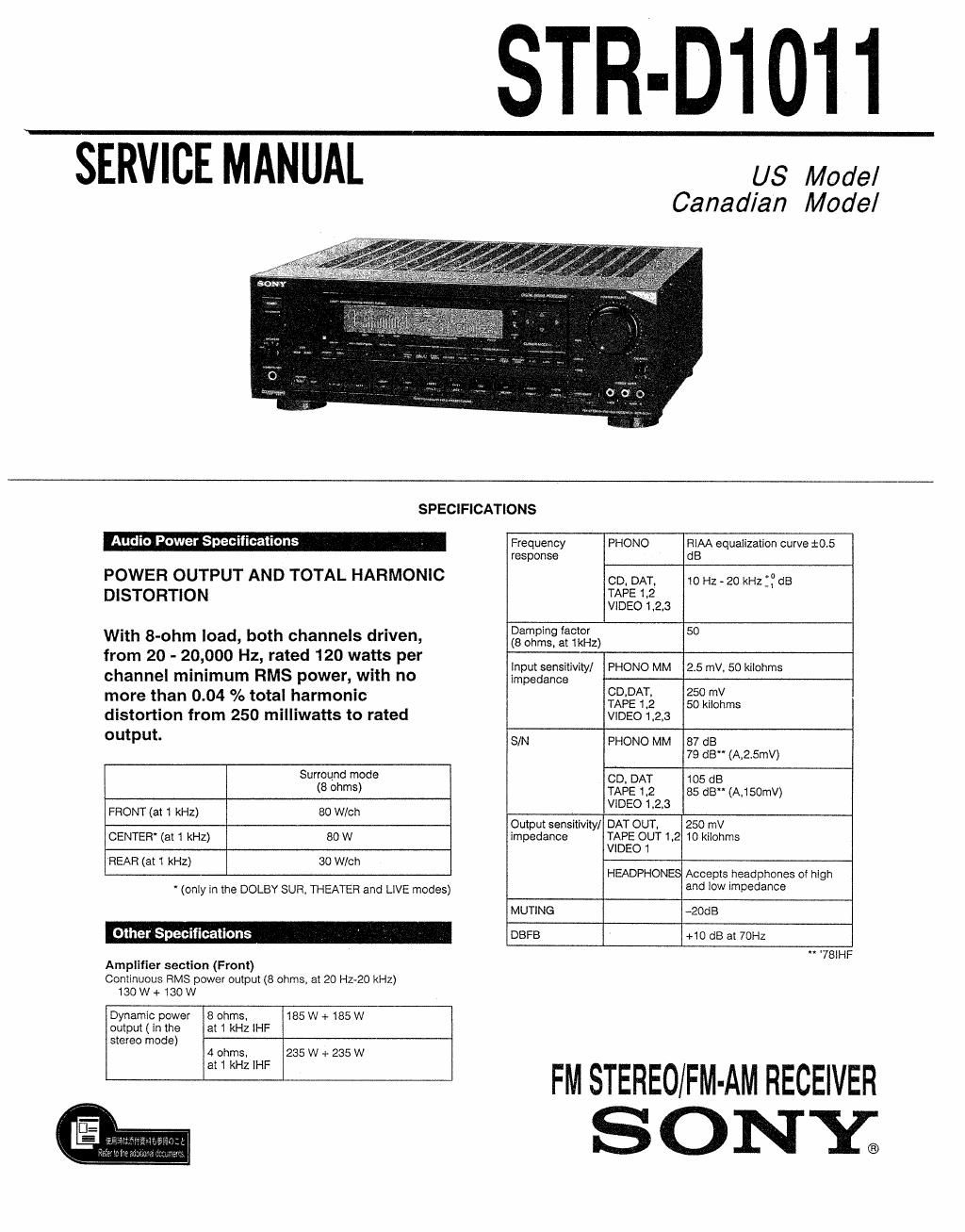

This is the 42 pages manual for sony str d 1011 rec service manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Digital signal processor section
Modulation (AID conversion)
High Density Linear Converter
Demonstration (D/A conversion)
High Density Linear Converter
(Pulse D/A Convener)
Sampling frequency
48 kHz
Image response ratio 70 dB
IF response ratio 70 dB
Spurious response ratio 80 dB
FtF intermodulation
at 800 60 dB
Equalizer Band 3-band. Bass/Trebie/Mid kHz
Turnover Bass: 125 Hz - 1 kHz Auto tuning Low 30 dBi
frequency Treble: 1 kHz - 8 kHz threshold
High 50 dBi
Center Mid: 54 Hz - 8 kHz '
frequency
AM tuner section
Level :10 dB. 1 dB step
. . Frequency range 530 - 1.710 kHz (with 10 kHz interval)
Slope (0) 3-star? selectable. Wldet Mid. 531 - 1,710 kHz (with 9 kHz interval)
Narrow
Surround ROOM SIZE 16-step adjustable Antenna L009 antenna
WALL 16-step adjustable Usable sensitivity 50 dB/m (at 1000 kHz or 999 kHz)
SEAT 16-step adjustable 3/ 54 dB (at 50 mV/m)
POSITION FIR
' Harmonic distortion 0.5% (50 mV/m. 400 Hz)
SEAT 16-step adjustable
POSITION L/R Selectivity 35 dB (9 kHz), 40 dB (10 kHz)
EFFECT 20-step adjustable Auto tuning threshold 55 dB/m
LEVEL
REVERB TIME ifs-step adjustable Video seem)"
DELAY TiME 15.0 ms-30.0 ms. 01 ms step Inputs VIDEO 123: 1 Vp-p 75 ohms
REAR LEVEL +10 ---50 dB. 1 dB step Outputs VIDEO 1, MONITOR: 1 Vp-p 75 ohms
CENTER +10 - -50 dB. 1 dB step
LEVEL General
[NPUT Automatic Tuner section PLL quartz-locked digital synthesizer
BALANCE system
" (only in the DOLBY SUR mode)
System Preamplifi
er Low-noise NF type equalizer
(only in the DOLBY suR, THEATER and LIVE modes) 5mm"
Power amplifier Pure-complimentary SEPP
FM tuner section section
Frequency range 87.5 - 108.0 MHz Power requirements 120 V AC,60 Hz
Antenna terminals 75 ohms. unbalanced Power consumption USA model: 260 W
Canada model: 320 VA
Sensitivity at 50 dB 18.3 dBf. 4.5 (N (mono)
38.3 dBf, 45 LlV (stereo) AC outlets Two switched. total 120 WI1 A max.
Usable sensitivity
11
.2 der, 2 av (iHF)
projecting parts an
Dimensions (including Approx. 480 x 148 x 385 mm (w/h/d)
d (17 x 5 3/IE x 15 3/5 inches)
Frequency response
so Hz .15 kHz :gdB
Seiectivity 60 dB at 400 kHz
Capture ratio 1.2 dB
AM suppression ratio 54 dB
S/N Mono 80 dB controls)
Stereo 74 dB Mass Approx. 13.2 kg
(29 lb 2 oz)
Harmonic Mono 0.3 %
distortion at
1 kHz Stereo 05 % Supplied accessories FM wire antenna (1)
AM loop antenna (1)
lM distortion Mono 0,3 % Remote commander (1)
Sony Batteries SUM»3(NS) (2)
Stereo 05 %
Desi n and s ec'l'catons b t t h th t t ,
Separation 45 dB at 1 kHz g p I | i are su rec o c ange wr ou no ice
