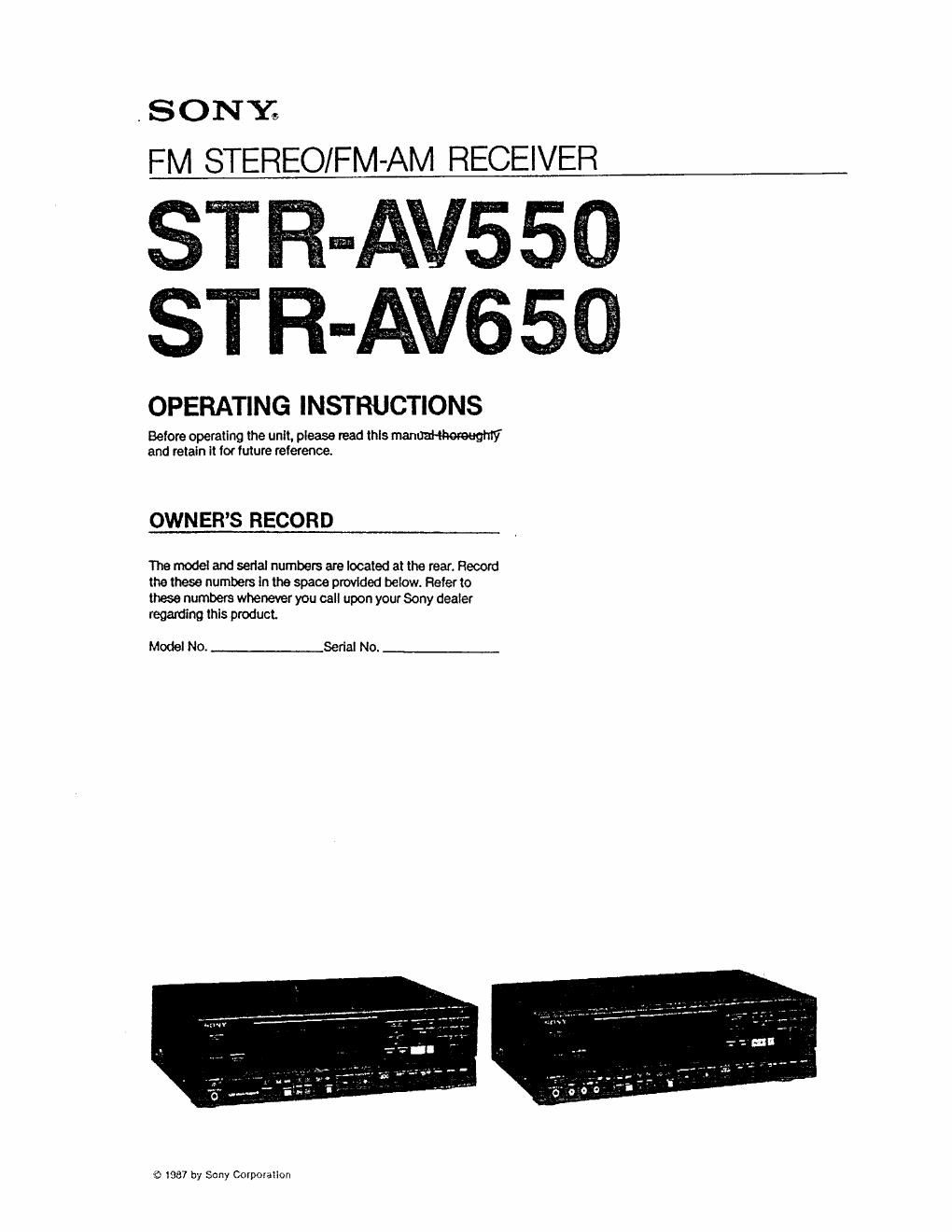

Page 1

.SONY;
FM STEREO/FM-AM RECEIVER

ST 5 9
ST R-AVG 5 I

OPERATING INSTRUCTIONS

Before operating the unit, piease read this manna-mommy
and retain it for future reference.

OWNERS RECORD

The model and serial numbers are located at the rear. Record
the these numbers in the space provided below. Refer to
time numbers whenever you call upon your Sony deaier
regarding this product.

Model No. Serial No.

2'6 1387 by Sany Corporation

Page 2

meme

To prevent fire or shock hazard, do not ex-
pose the unit to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK
00 NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK),
NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the
user to the presence of uninsulated
dangerous voltage" within the prod-
uct's enclosure that may be of suiti-
cient magnitude to constitute a risk ol
electric shock to persons.

This symbol is intended to alert the
user to the presence at important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.

This instruction manual covers the STR-AVSSO and the STR~
AV650,
The photos and illustrations used in the manual are oi the

STE-AVSSO.
The difference between the two models are shown in the

table below.

STR~AV550 STHAVBSO
Front VIDEO? INPUT Jacks not equipped equipped
rvvtoeo lNIAUDlO IN lacks not equipped equipped
CATV ANTENNA terminals not equipped equipped
Remote commander supplied RM-Sw RM-U70
Power output 55W 65w

The remote commander is supplied with the unit For
connections and operations of the remote commander, refer
to its instmction manual.

CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE

FEATURES

The STR-AVWGSO is a combined receiver and audio/video
control centen You can listen to various audiolvideo program
sources through the ampiiiier oi the receiver and the
speakers connected to it.

- TV or CATV (STR-AVBSO only) programs can be enjoyed
with FM simulcast.

. Various audio program sources can be added on a
video tape during tape editing.

- The supplied remote control allows you to remotely
control the connected equipment as well as the receiver.

Tuner

- Precise tuning with the quartz-locked digital synthesizer
system.

'A total at 10 FMIAM stations can be preset.

Others

0 The surround sound system enhances live atmosphere of
the sound

- The volume lode-in function increases the volume
gradually from the minimum to a previously set level when
the unit ls turned on.
