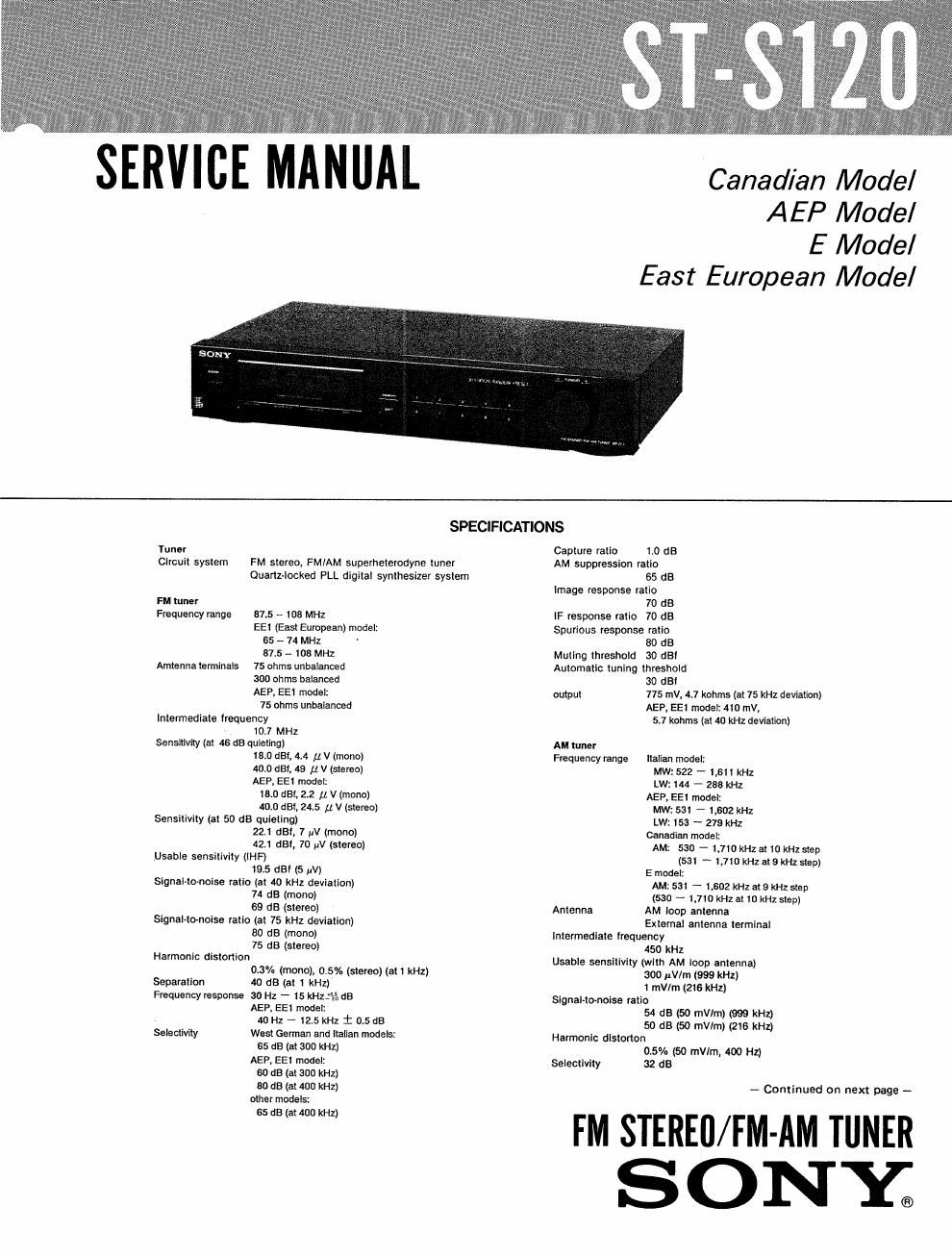

Sony st s 120 service manual

Page 2

ST-S120

Genar-I
Power requirements
AEP, EE1 model: 220 VAC (or 240 V AC
Adjustable by authorized Sony personal),
513/50 HI
Canadian model: I20 V AC, 60 Hz
E model: I10 - 120 V or220 - 240 V AC
adlustable, 50/60 Hz
Power consumption
10 W

Dimensions Approxt 430x85><295 mm (win/d)
(17x8/.x11/. Inches)
Weight Approx. 2.8 kg (6 lb 3 oz)

Accessories supplied
Remote control cord (1)
Connecting cord (1)
FM antenna (1) {Except West Germany
model)
AM loop anlenna (1)

Design and specifications subject to change without notice:

MODEL IDENTIFICATION
- Specification Label -

0n safety

0 Before connecting the unit to the power source, check
that the operating voltage of your unit is the same as
the local power line voltage.

Where purchased Operating voltage

Canadian Model 120 V AC, 60 Hz

AEP, EE1 Model 220 V AC, 50/60 Hz (240 V AC,
adjustable by authorized Sony

personnel)

110420 or 220-240 V AC, 50/60
Hz (Adjustable using the voltage
selector at the rear)

E Model

VOLYAGE SELECTOR
no my 220 440v
L .

W

0 Should any solid object or liquid fall into the unit,
unplug the unit and have it checked by qualified

SONY®

FM STEREO/FM-AM TUNER

MODEL NO. ST-S120

personnel before operating it an further.

- Unplug the unit from the wall outlet if it is not to be
used for an extended period of time To disconnect the
cord, pull it out by grasping the plug. Do not pull the

" cord itself.

SERIAL NO.
MADE IN
JAPAN
FRANCE

AC: 120V60 HZ IOW

AC: 220 V 50/60 H210W
AC: 110 ~ 120 V/220 - 240V
50/60 HZ10W

Canadian Model:
AEP, EE1 Model:
E Model:

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AUCOMPOSANT AVANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT cal'rrouEs POUR LA sécunrré
DE FONCTIONNEMENT. NE REMPLACER ces com-
POSANTS OUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNés DANS CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR soNv.
