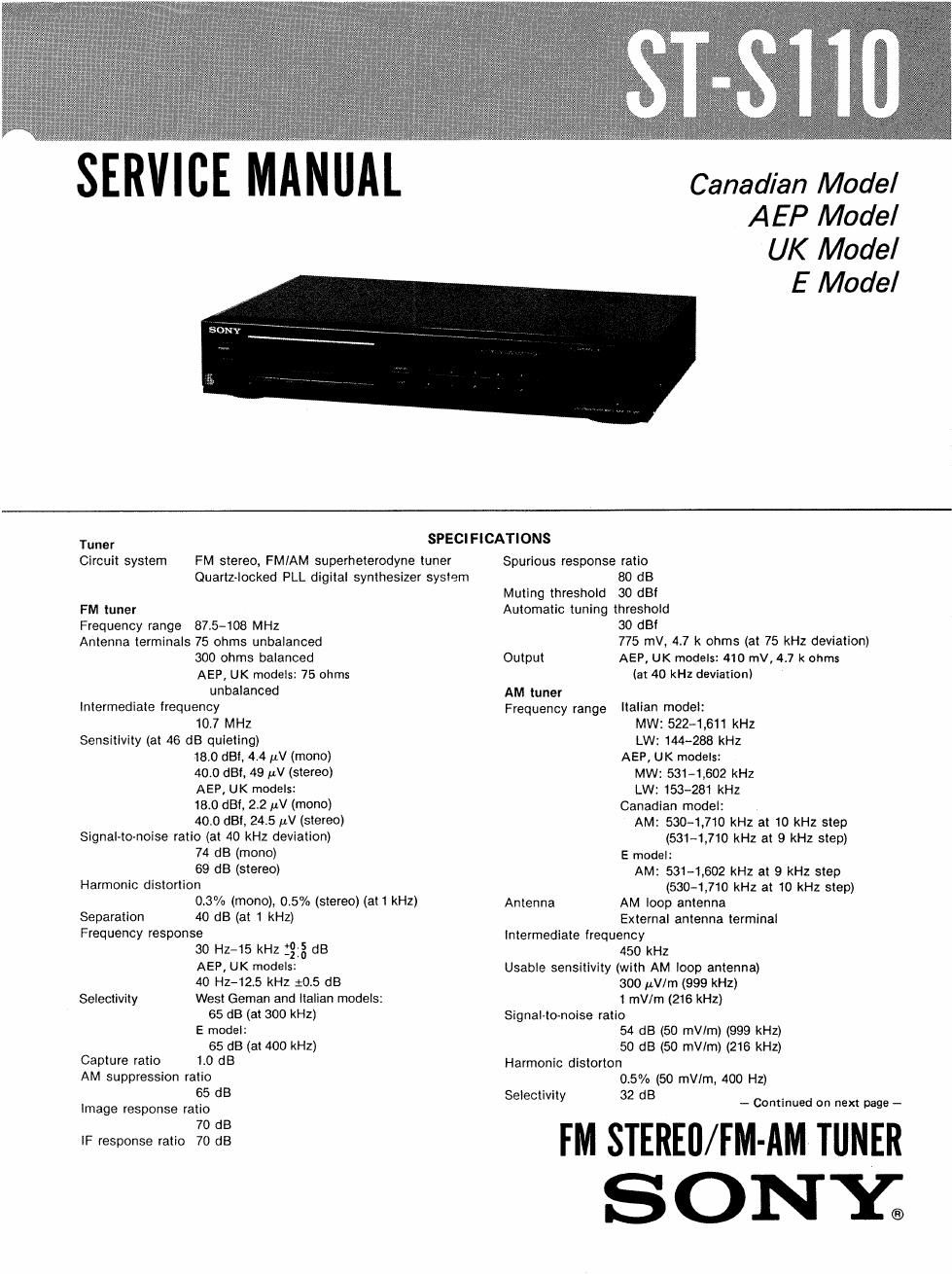

ST-S110

General
Power requirements
U.K. model: 240 V AC (or 220 V AC
adjustable by authorized Sony personnel),
50/60 Hz
AEP model: 220 V AC tor 240 V AC
adjustable by authorized Sony personnel),
50/60 Hz
Canadian model: 120 V AC, 60 Hz
E model: 110-120 V or 220-240 V AC
adjustable, 50/60 Hz
Power consumption
10 W
Approx. 430x80><295 mm (w/h/d)
(17><3/.><115/8 inches)
Weight Approx. 2.8 kg (6 lb 3 02)
Accessories supplied
Remote control cord (1)
Connecting cord (1)
FM antenna (1) (Except West Germany
model)
AM loop antenna

Dimensions

Design and specifications subject to change without notice.

MODEL IDENTIFICATION
- Specification Label -

SONYE

FM STEREO/FM-AM TUNER

MODEL NO. ST-S110

SERIAL NOL
MADE IN

JAPAN
FRANCE

Canadian Model: AC: 120 V 60 Hz 10W
AEP Model: AC: 220 V 50/60 Hz 10 W
UK Model:,AC: 240 V 50/60 Hz 10 W

E Model: AC: 110-120 V/220-240 V 50/60 Hz 10 W

SAFETV

COMPONENTS IDENTIFIED BV MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

On safety

. Before connecting the unit to the power source, check
that the operating voltage of your unit is the same as
the local power line voltage.

Where purchased Operating voltage

Canadian Model 120 V AC, 60 Hz

UK Model 240 V AC, 50/60 Hz

AEP Model 220 V AC, 50/60 Hz (240 V AC.
adjustable by authorized Sony
personnel)

E Model 110420 or 220-240 V AC, 50/60

Hz (Adjustable using the voltage
selector at the rear)

VOLTAGE SELECTOR
Ito lZOV 220-240V

W

0 Should any solid object or liquid fall into the unit,
unplug the unit and have it checked by qualified
personnel before operating it an further.

0 Unplug the unit from the wall outlet if it is not to be
used for an extended period of time. To disconnect the
cord, pull it out by grasping the plug Do not pull the
cord itself.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT camoues POUR LA sécumTé
DE FONCTIONNEMENT. NE REMPLACER ces com-
POSANTS ous PAR DES PIECES s0Nv DONT LES
NUMEROS SONT DONNES DANS cs MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
