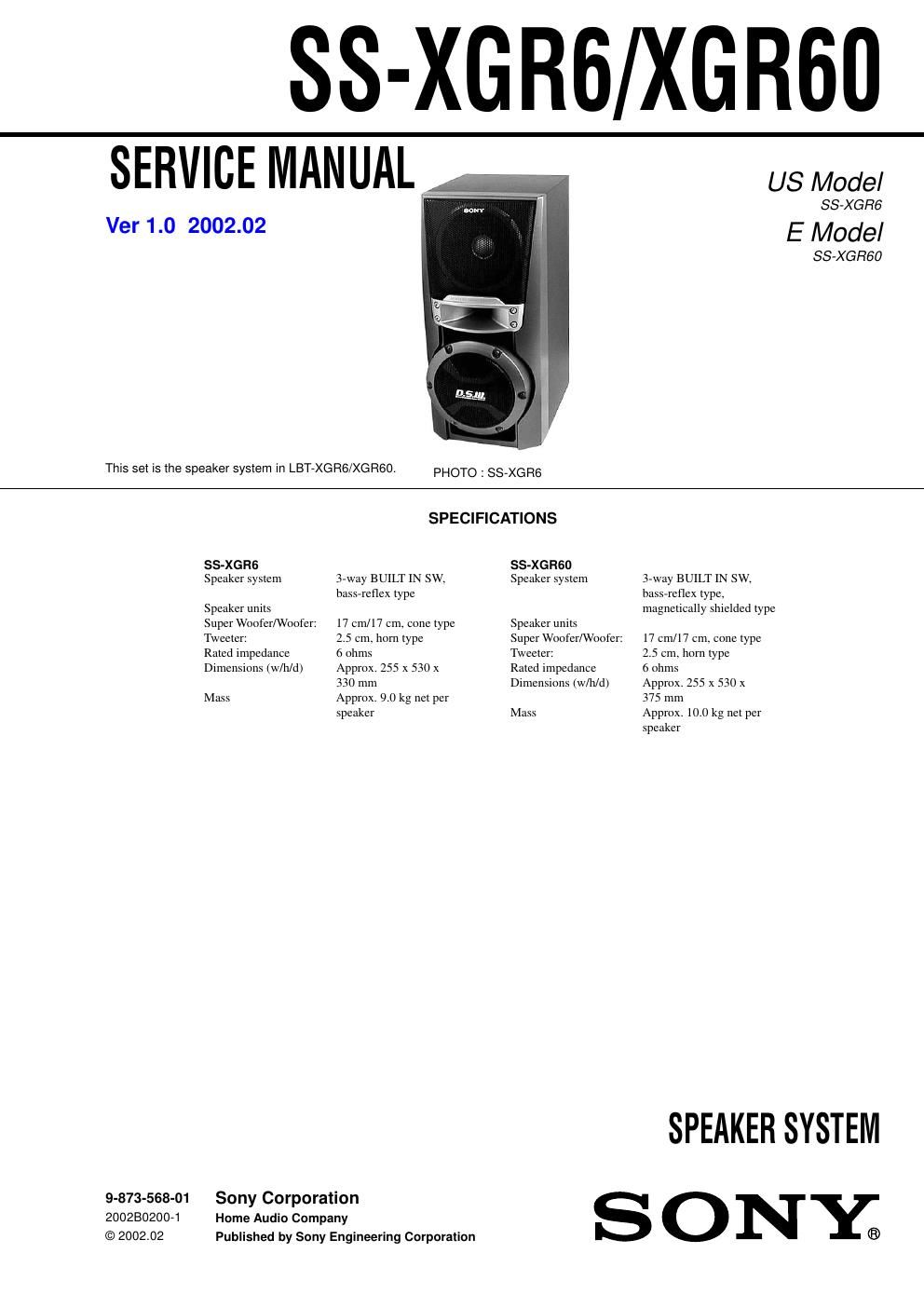

SS-XGR6/XGR60
NOTE:
- Items marked * are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
- Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
Ref. No. Part No. Description Remark
EXPLODED VIEW AND PARTS LIST
Ref. No. Part No. Description Remark
5
4 3
6 3
2
1
#1 #1
SP3 SP2SP1
not suppliednot supplied
1 4-999-101-01 SCREW, HEXAGON HOLE TAPPING
2 4-238-050-01 HORN, TW
3 4-874-614-31 SCREW (1) (3.5X12), TAPPING
4 4-227-036-01 BRACKET
5 4-942-029-01 PACKING
6 X-4954-396-1 PANEL ASSY, FRONT
SP1 1-529-957-11 SPEAKER (16cm) (XGR60)
SP1 1-529-959-11 SPEAKER (16cm) (XGR6)
SP2 1-825-109-11 SPEAKER (2.5cm)
SP3 1-529-611-11 SPEAKER (16cm) (XGR60)SP3 1-529-657-11 SPEAKER (16cm) (XGR6)
#1 7-685-661-19 SCREW +BVTP 4X12 TYPE2 N-S
******************************************************
ACCESSORIES***********
1-775-512-21 CORD, SPEAKER CONNECTION (1.5m)
4-210-254-02 CUSHION (FOOT)
