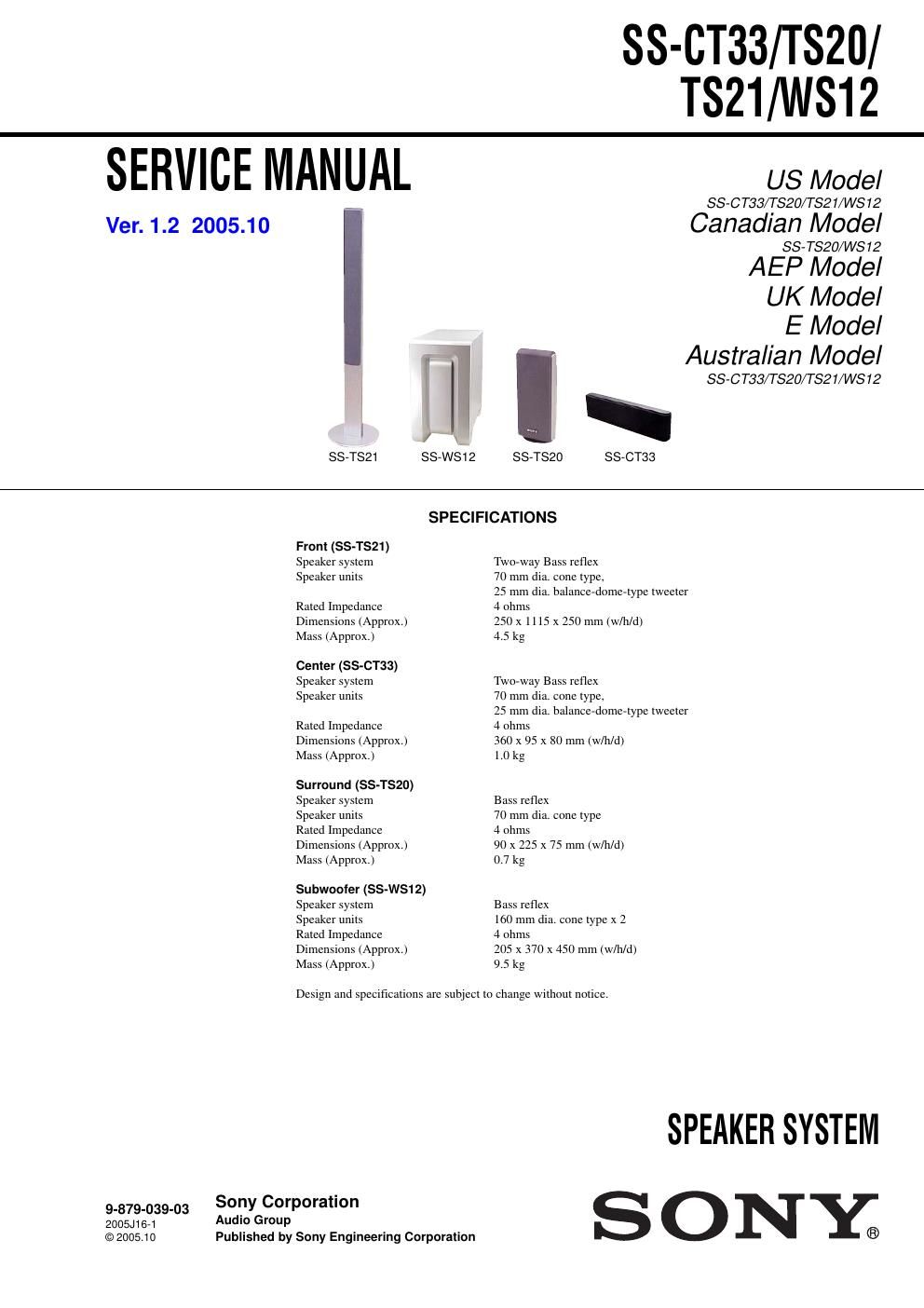

Sony ss ws 12 service manual

Page 1

2 SS-CT33/TS20/TS21/WS12 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.-XX and -X mean standardized parts, so they may have some difference from the original one. SS-CT33 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12-048-751-01 SCREW +BVTP 3.5X14 TYPE2 24-255-212-01 FRAME, GRILLE 34-874-614-82 SCREW 44-255-211-01 PLATE, ORNAMENTAL 51-694-836-11 TERMINAL, SPEAKER64-255-886-01 FOOT 7A-4715-726-A CABINET ASSY 8A-4715-725-A OVERALL ASSY SP1 X-2022-128-1 SPEAKER ASSY (2.5cm) SP2 1-825-871-11 SPEAKER (7cm) not suppliednot suppliednot suppliednot supplied not supplied not supplied not supplied 23 3 3 3 45 6 7 8 SP1 1 1 1 not supplied SP2
