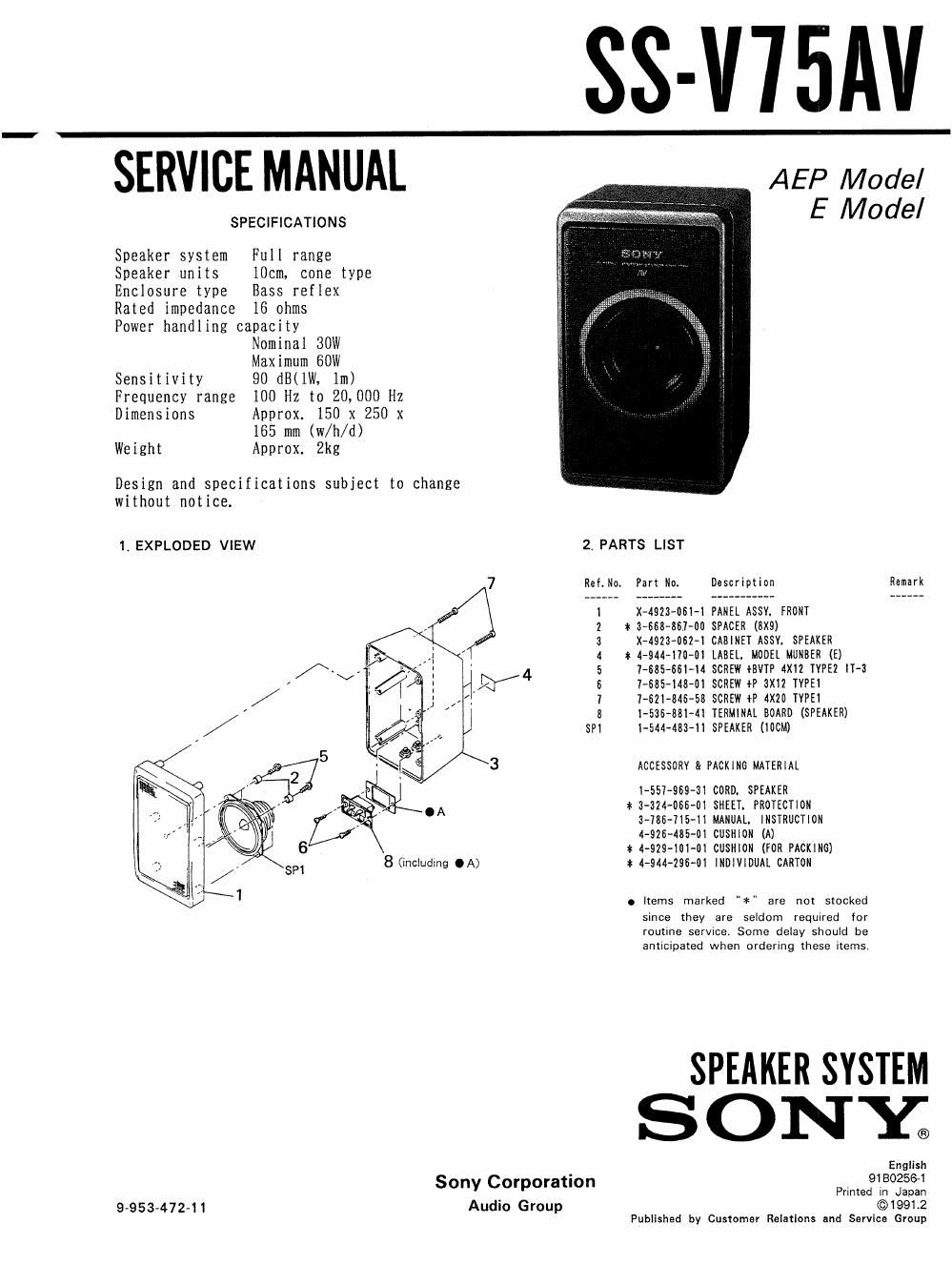

SERVICE MANUAL

SPECIFICATIONS

Speaker system Full range
Speaker units 10cm, cone type
Enclosure type Bass reflex
Rated impedance 16 ohms
Power handling capacity
Nominal 30W
Maximum 60W
Sensitivity 90 dB(lW, 1m)
Frequency range 100 Hz to 20,000 Hz

Dimensions Approx. 150 x 250 x
165 mm (w/h/d)
Weight Approx. 2kg

Design and specifications subject to change
without notice

1 EXPLODED VIEW

8 (including .A)

SS-V'I5AV

AEP Model
E Model

2. PARTS LIST

Ref. No.

Sony Corporation

9953472-11

Audio Group

Part Nut Description Remark
X-4923-061-l PANEL ASSV, FRONT
1: 346846740 SPACER (8X9)
X-ASZB-Dfilel CABINET ASSY. SPEAKER
:4-944-170-01 LABEL. MODEL MURDER (EI
7-885-661-l4 SCREW HWY? 4X12 TYPEZ IT-8
7-685-I48-01 SCREW (4 3Xl2 TVPEI
7-62l-846-58 SCREW +P 4K2!) TVPEI
l-535~881-4l TERMINAL BOARD (SPEAKER)
1-544-483-ii SPEAKER (IOCM)

ACCESSORV A PACKING MATERIAL

FEW-959* CORD. SPEAKER

i 3-324-066-01 SHEET. PROTECIIDN
3-786-715~l1 MANUAL. INSYRUCTION
4-926485-01 CUSHION (A)

t 4-929-l01-DI CUSRIDN (FOR PACKING)

* 4-944-296-01 INDIVIDUAL CARTON

. Items marked *" are not stocked
since they are seldom required for
routine service, Some delay should be
anticipated when ordering these items,

SPEAKER SYSTEM
SONY?

English

91802561

Printed in Japan

©19912

Published by Customer Relations and Service Group
