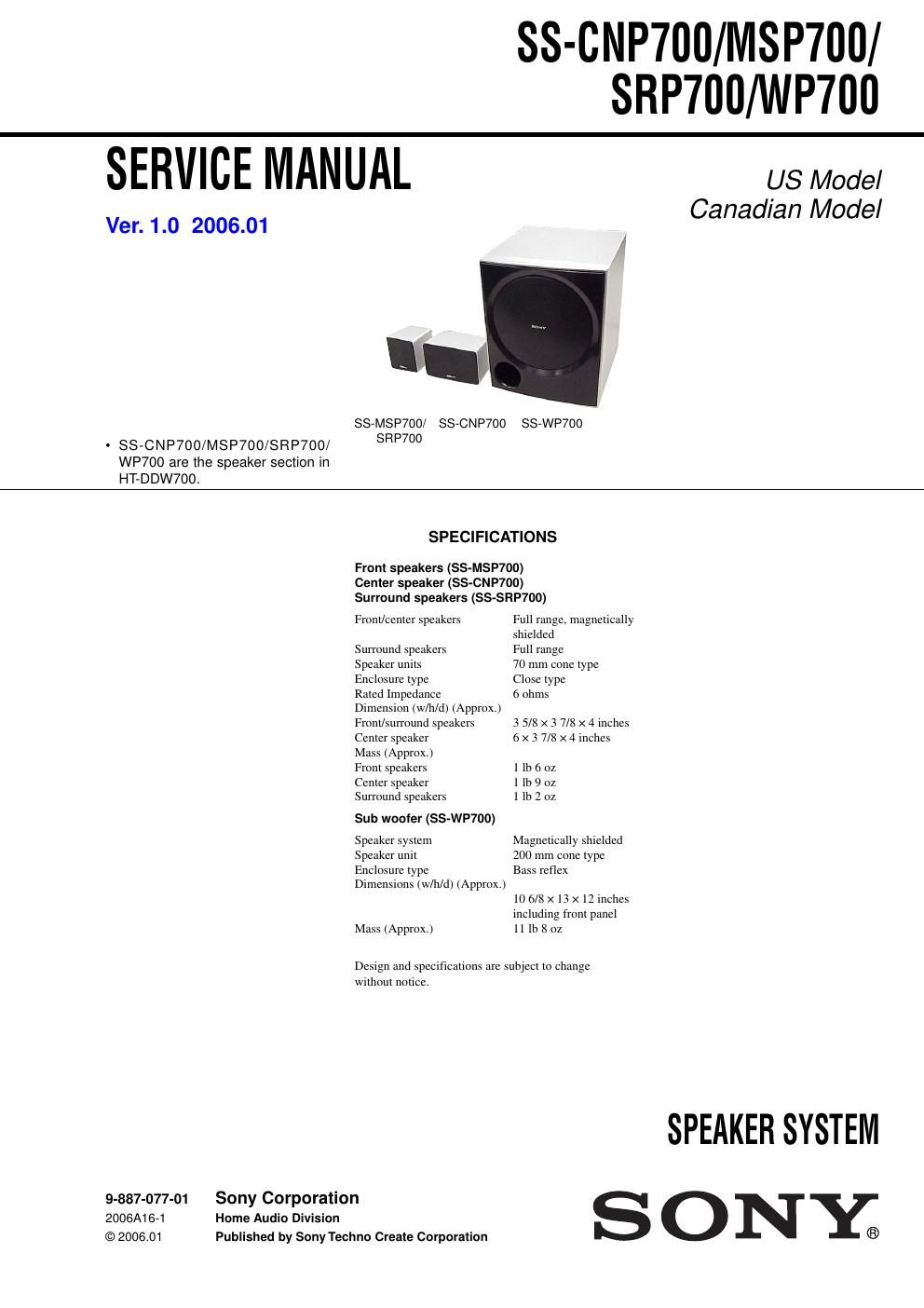

Extracted text from sony ss srp 700 service manual (Ocr-read)
Page 1
2
SS-CNP700/MSP700/SRP700/WP700
SS-CNP700/MSP700/SRP700
EXPLODED VIEWS
NOTE:
-The mechanical parts with no reference number
in the exploded views are not supplied.--XX, -X mean standardized parts, so they may
have some differences from the original one.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1A-1154-979-A OVERALL ASSY (SS-MSP700)
1A-1154-983-A OVERALL ASSY (SS-SRP700)2A-1154-981-A OVERALL ASSY (SS-CNP700)
1
2
Page 2
3
SS-CNP700/MSP700/SRP700/WP700
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-1156-547-A FRONT PANEL ASSY
52 1-826-423-11 LOUD SPEAKER (20cm)53 4-245-976-01 SCREW (4X16) (TYPE 1), +BVTP
SS-WP700
5153
52
not
supplied
