Page 1
2
TABLE OF CONTENTS
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
ร- LA SรCURITร!
LES COMPOSANTS IDENTIFรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES SONT
CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIรSES SONY
DONT LES NUMรROS SONT DONNรS DANS CE MANUEL OU
DANS LES SUPPรMENTS PUBLIรS PAR SONY.

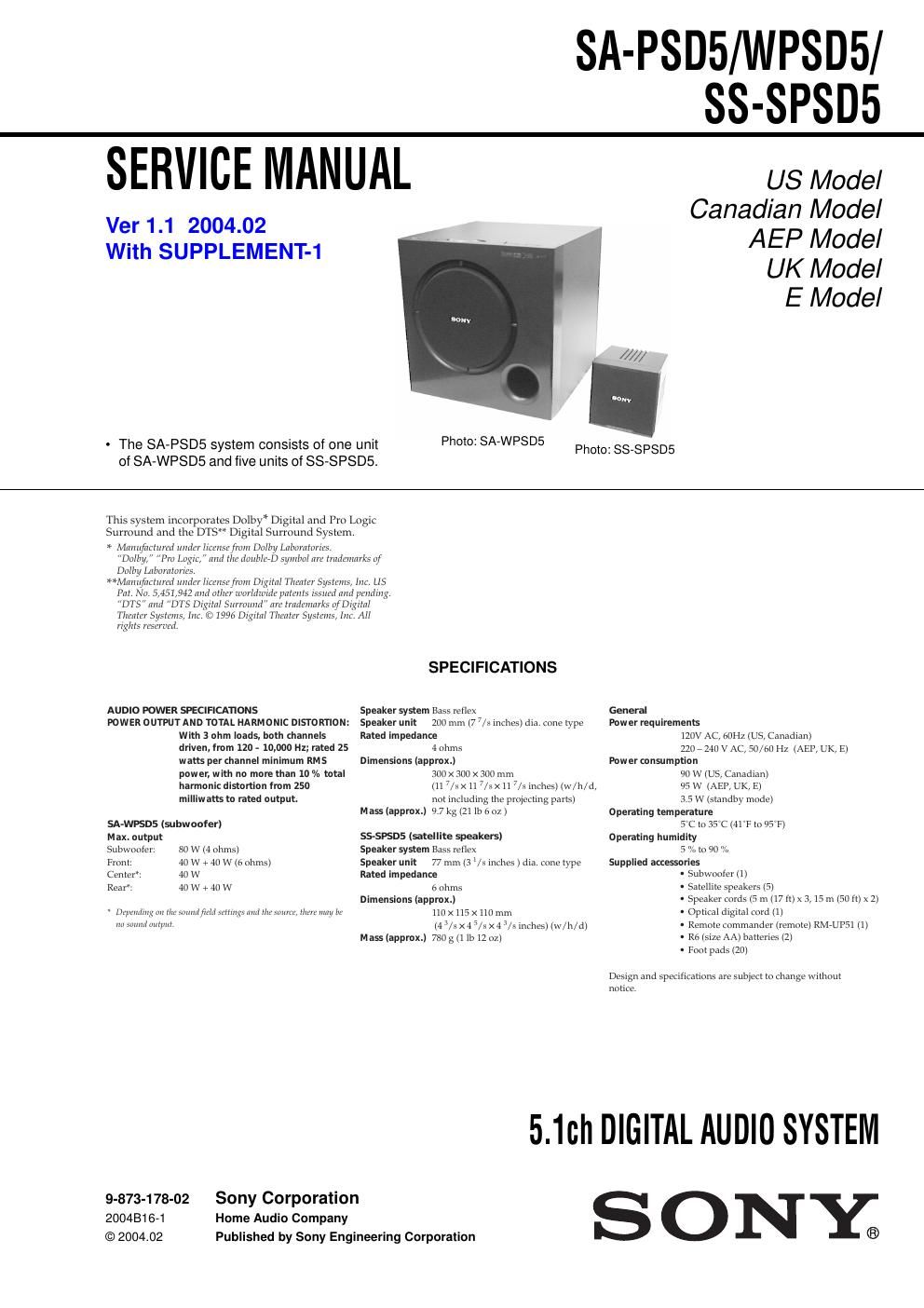

SA-PSD5/WPSD5/SS-SPSD5
Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat. Flexible Circuit Board Repairing
- Keep the temperature of soldering iron around 270หC
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering. After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having
a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15 ยตF
1.5 k-ฆAC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY CHECK-OUT ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท2
1. GENERAL ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท3
2. DIAGRAMS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
2-1. Circuit Boards Locationยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
2-2. Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท5
2-3. Printed Wiring Board
- Digital Section (Side A) - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
2-4. Printed Wiring Board
- Digital Section (Side B) - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท7
2-5. Schematic Diagram - Digital Section (1/2) - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท8
2-6. Schematic Diagram - Digital Section (2/2) - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท9
2-7. Schematic Diagram - LCD Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท10
2-8. Printed Wiring Board - LCD Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท11
2-9. Schematic Diagram - Key Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท12
2-10. Printed Wiring Board - Key Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท13
2-11. Schematic Diagram - IN/OUT Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท14
2-12. Printed Wiring Board - IN/OUT Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท15
2-13. Schematic Diagram - Pre Amp Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท16
2-14. Printed Wiring Board - Pre Amp Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท17
2-15. Schematic Diagram - Power Section (1/2) - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท18
2-16. Schematic Diagram - Power Section (2/2) - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท19
2-17. Printed Wiring Board - Power Section - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท20
2-18. IC Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท21
2-19. IC Pin Function Descriptionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท23
3. EXPRODED VIEWS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท25
3-1. SA-WPSD5 (FRONT SECTION)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท25
3-2. SA-WPSD5 (AMP SECTION)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท26
3-3. SS-SPSD5ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
4. ELECTRICAL PARTS LIST ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท28
Page 2
3
SA-PSD5/WPSD5/SS-SPSD5
SECTION 1
GENERAL
18
GB
Index to Parts and Controls
Top panel/Front panel
1SOUND FIELD button (11)
Selects the sound field.
2FUNCTION button (9)
Selects the input signal.
3?/1 (POWER) switch and indicator (9)
Turns on and off the power of the system.
4Display window (7, 9, 11, 14)
Indicates the speaker setting, input signal, sound field
mode, etc.
5MASTER VOL (volume) +/- buttons (9)
Adjust the volume.
6MUTING button (9)
Mutes the sound.
7
remote sensor (4)
Accepts the remote control signals.
Rear panel
8SPEAKER jacks (5)
Connect to the supplied satellite speakers.
9AUDIO IN 1/2 jacks (6)
Connect to the audio output of a TV, VCR, PSone, etc.
0DIGITAL IN OPTICAL 1/2 jacks (5, 6)
Connect to the DIGITAL OUT (OPTICAL) jack of the
PlayStation 2, DVD player, etc.
qaBASS CONTROL knobs (10)
Make fine adjustment of the bass sound. Refer to the pages indicated in parentheses for details.
Subwoofer 1
2
34
5
6
7 8
9
q;qa
ONLY FOR
SS-SPSD5 FRONT R CENTERSPEAKERFRONT L
REAR R REAR L 2
OPTICAL2 MID
LOW HIGH
MIN MAX LEVEL FREQUENCY 1 1
L
R
BASS CONTROL
AUDIO INDIGITAL IN
19
GB
Remote 1TV button (15)
Turns the TV on and off.
2SHIFT button (7, 10, 14, 15)
Switches the function of the buttons on the remote.
3TV CH +/- (TV/VIDEO) buttons (15)
Changes the TV channel.
To change the TV input, press - while pressing SHIFT.
4REAR +/- buttons (10)
Adjust the rear speakers volume.
5CENTER +/- buttons (10)
Adjust the center speaker volume.
6XPAUSE button (13)
Pauses playing a disc.
7NPLAY button (13)
Plays a disc.8./>PREV/NEXT buttons (13)
Press to go to the next chapter or track, or to go back
to the previous chapter or track.
9TITLE button (13)
Displays the title menu on the TV screen.
0
