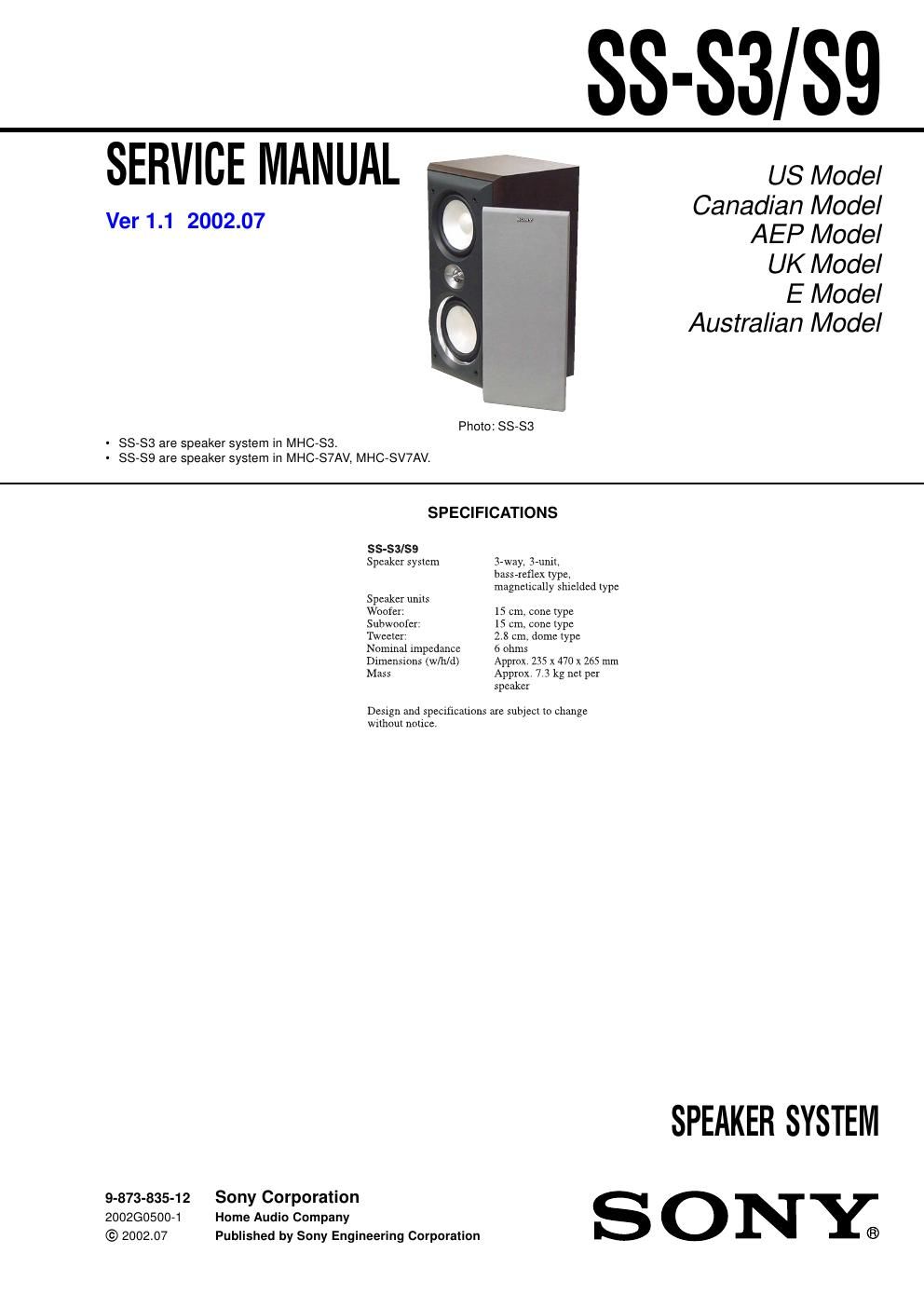

SS-S3/S9
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
FRONT PANEL SECTION Ver 1.1
3four tapping screws
(3.5 Γ 14)
2four catchers
1grille frame assy
tapping screw
catcher
6front panel
sectionhole B
pliers
hexagon wrench hole A
hole C
hole Fig. A
Fig. B hole D
5two terminal
pliers
hexagon wrench
hole
4To remove the front panel section,
stick a hexagon wrench into the hole A, B, C and D
and pull up with pliers as shown in the Fig. A and B.
At that time, do not try to remove it at once,
but pull up by each hole as A- B- C- D
to remove gradually.
Page 2
3
SS-S3/S9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 A-4412-719-A FRAME ASSY, GRILLE
2 4-912-253-01 CATCHER
3 4-874-614-21 SCREW (4) (3.5X14), TAPPING
4 A-4412-720-A PANEL ASSY, FRONT (SS-S9)
4 A-4412-887-A PANEL ASSY, FRONT (SS-S3)
5 4-874-614-31 SCREW (4) (3.5X12), TAPPING
6 4-218-300-01 PACKING (B)
7 A-4412-886-B CABINET ASSY, SPEAKER
8 1-537-332-11 TERMINAL BOARD
SP1 1-529-979-11 SPEAKER (15cm) (WOOFER)
SP2 1-529-980-11 SPEAKER (2.5cm) (TWEETER)
SP3 1-529-978-11 SPEAKER (15cm) (SUB WOOFER)ACCESSORIES
************
1-558-848-11 CORD, SPEAKER
4-235-868-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, GERMAN, SPANISH,
DUTCH, SWEDISH, ITALIAN, PORTUGUESE,
TURKISH, POLISH, HUNGARIAN, GREEK,
FINNISH, DANISH, CZECH, RUSSIAN)
(AEP, UK)
EXPLODED VIEWS AND PARTS LIST
- The mechanical parts with no reference num-
ber in the exploded views are not supplied. NOTE:
- Items marked * are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.- Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
--
Parts Color Cabinet's Color
3 1
8
7
2
4
SP2
SP3
5
SP1
not supplied
3
3
6
