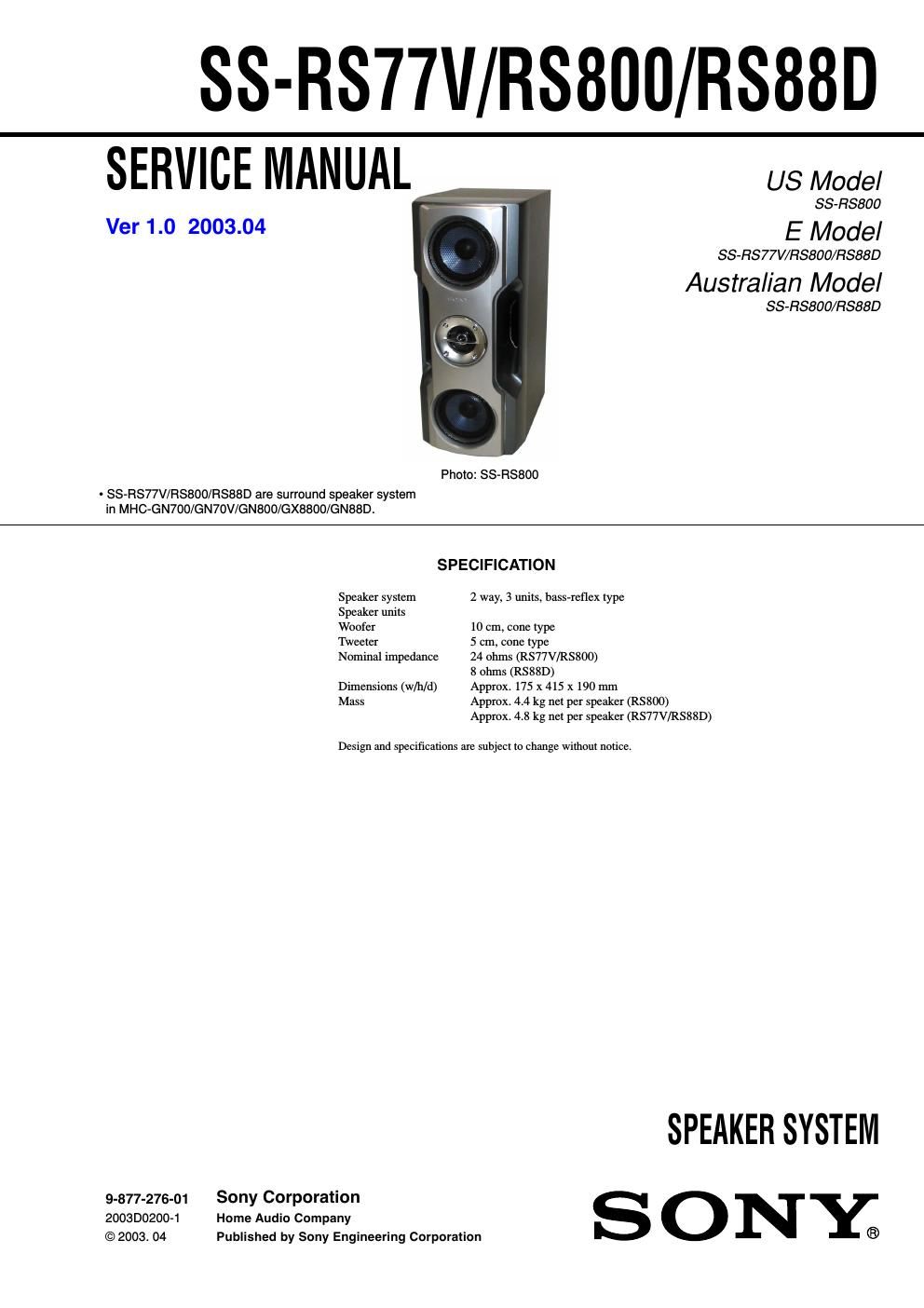

sony ss rs 77 v service manual

Extracted text from sony ss rs 77 v service manual (Ocr-read)

Page 1

2 SS-RS77V/RS800/RS88D Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ EXPLODED VIEWS NOTE : --XX, -X mean standardized parts, so they may have some difference from the original one. -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.-The mechanical parts with no reference number in the exploded views are not supplied. not supplied SP1 2 2 2 2 1 SP3 SP2 1A-4736-145-A FRONT PANEL ASSY 24-874-614-21 SCREW (1) (3.5X14), TAPPING SP1 1-825-271-11 SPEAKER (10cm) (RS77V/RS88D) SP1 1-825-272-11 SPEAKER (10cm) (RS800)Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ SP2 1-825-271-11 SPEAKER (10cm) (RS77V/RS88D) SP2 1-825-272-11 SPEAKER (10cm) (RS800) SP3 1-529-692-11 SPEAKER (5cm)
