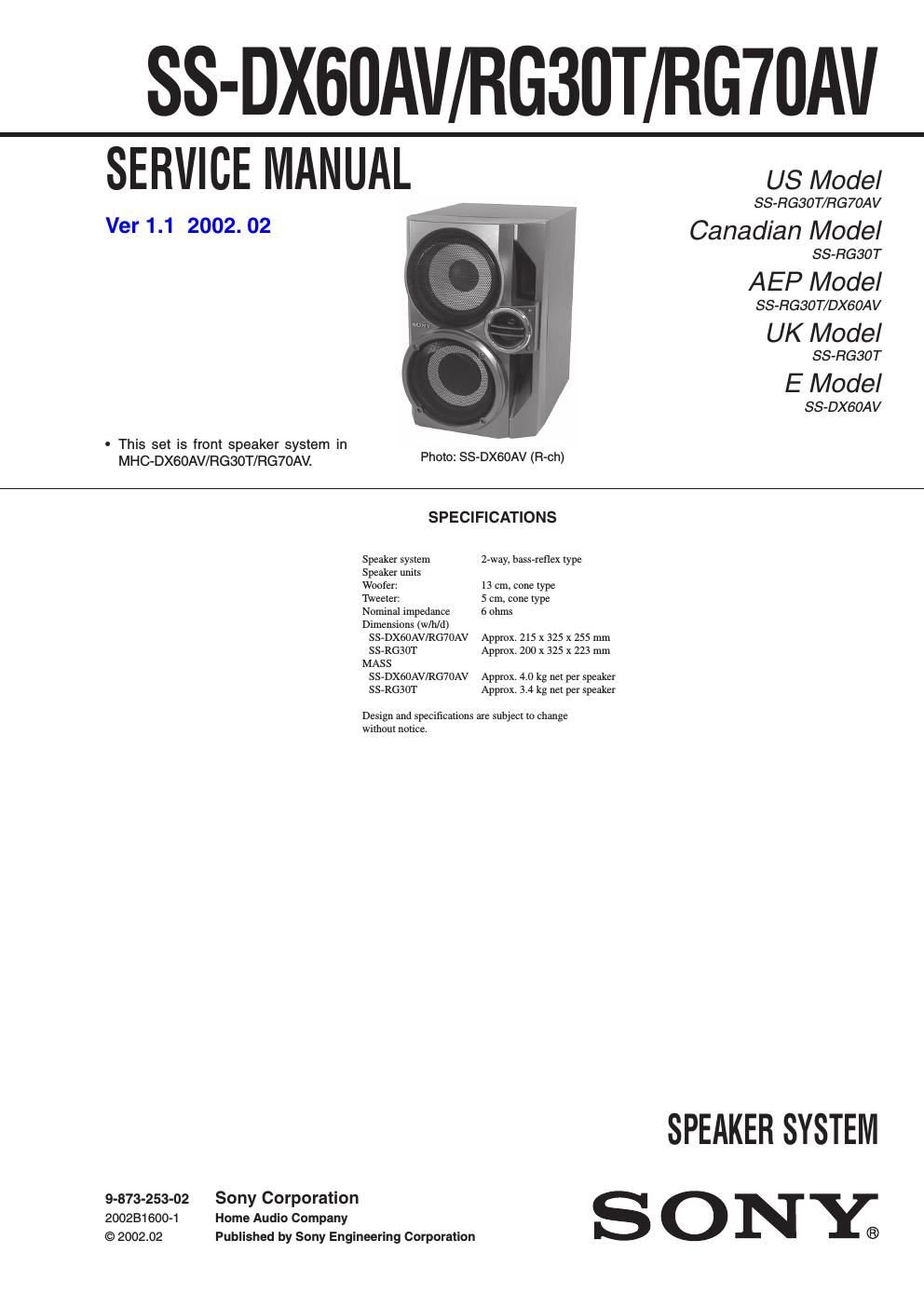

sony ss rg 70 av service manual

Extracted text from sony ss rg 70 av service manual (Ocr-read)

Page 1

2 SS-DX60AV/RG30T/RG70 AV EXPLODED VIEW AND PA RTS LIST N O TE:- The mechanical parts with no reference num- ber in the exploded vi ews a re not supplied. 1 2 2 2 SP103 SP101 SP102 3 4 2 4 not supplied 5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4953-745-1 PANEL (L) ASS Y, FRONT (DX60 AV/RG70 AV) 1 X-4953-746-1 PANEL (R) ASS Y, FRONT (DX60 AV/RG70 AV) 2 4-991-133-01 SCREW (3.5X16) (DX60 AV/RG70 AV) 3 X-4953-747-1 CABINET (L) ASS Y, SPEAKER (DX60AV/RG70 AV) 3 X-4953-748-1 CABINET (R) ASS Y, SPEAKER (DX60AV/RG70 AV) 4 4-234-052-01 PACKING (DUCT) (DX60 AV/RG70 AV) 5 A-4735-383-A SPEAKER ASSY (L) (RG30T) 5 A-4735-384-A SPEAKER ASSY (R) (RG30T) SP101 1-544-785-11 SPEAKER (13cm) (DX60 AV/RG70 AV) SP102 1-544-786-11 SPEAKER (13cm) (DX60 AV/RG70 AV) SP103 1-544-787-11 SPEAKER (5cm) (DX60 AV/RG70 AV) R ch V er 1.1 2002. 02
