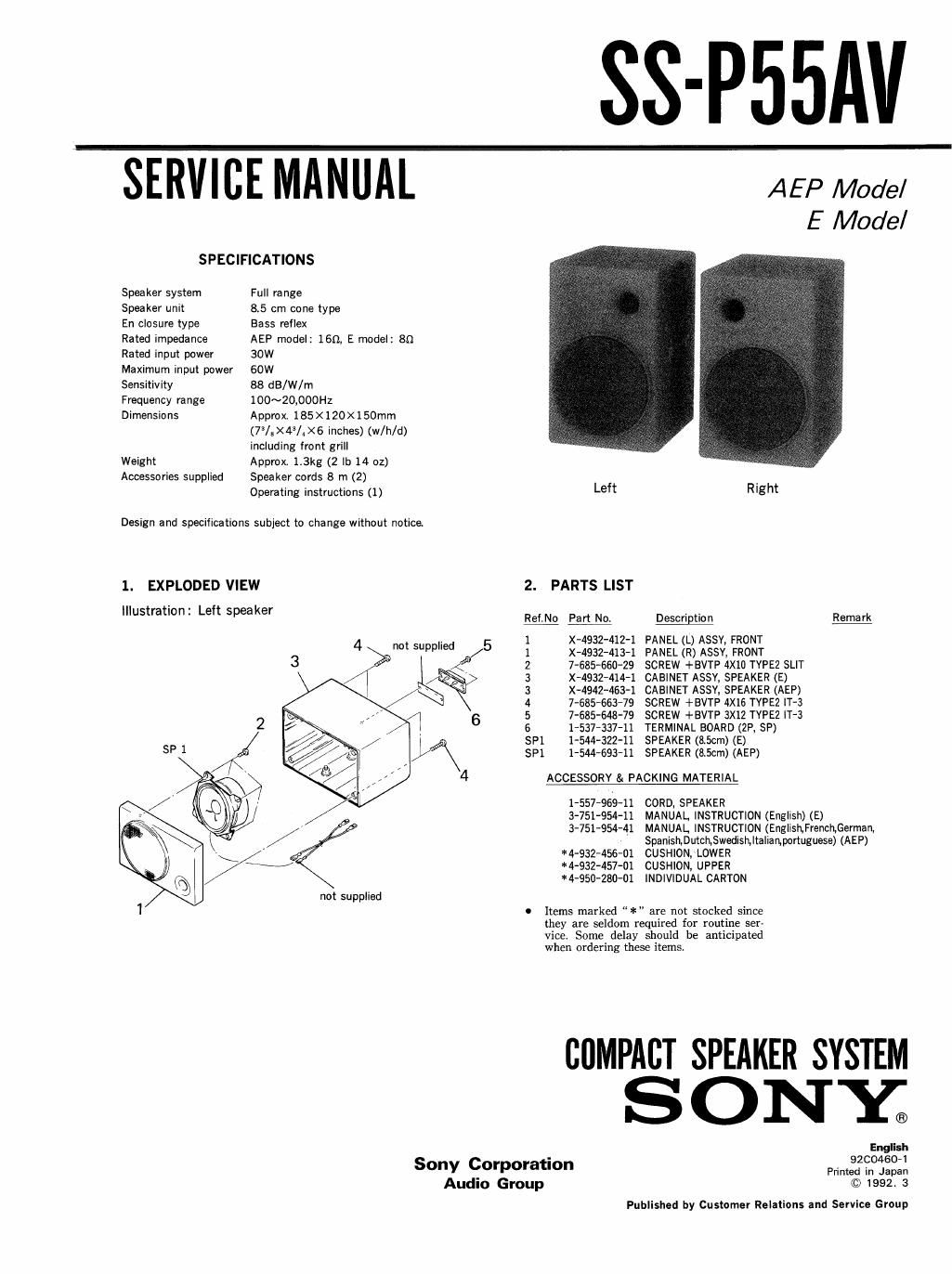

SS-P55AV

SERVICE MANUAL AEP Model

E Model

SPECIFICATIONS

Speaker system Full range

Speaker unit 85 cm cone type

En closure type Bass reflex

Rated impedance AEP model: 160, E model: 80.
Rated input power 30W

Maximum input power 60W

Sensitivity 88 dB/W/m

Frequency range 100~20,000Hz

Dimensions Approx 185x120><150mm

(7/3><4/.X6 inches) (w/h/d)
including front grill
Weight Approx 1.3kg (2 lb 14 oz)
Accessories supplied Speaker cords 8 m (2)

Operating instructions (1) Left Right
Design and specifications subject to change without notice.
1. EXPLODED VIEW 2. PARTS LIST
IIIL'St'am": Le speaker Ref.No Part No. Description Remark
. X-4932-412-I. PANEL (L) ASSV, FRONT
4 1 suppl'ed /5 x-4932-413-1 PANEL (R) Assr, FRONT

1
l
2 7-685-660-29 SCREW +BVTP 4X10 TYPE2 SLIT
3 X-4932-414-1 CABINET ASSY, SPEAKER (E)

3 X-4942-4631 CABINET ASSY, SPEAKER (AEP)
4 7-685-663-79 SCREW +BVTP 4X16 TYPEZ IT-3
5 7-685-648-79 SCREW +BVTP 3X12 TYPEZ IT-3
1-537-337-11 TERMINAL BOARD (2P, SP)

SP1 1544-322-11 SPEAKER (8.5cm) (E)

SP1 1-544-69341 SPEAKER (8.5cm) (AEP)

m

ACCESSORY & PACKING MATERIAL

1-557-96941 CORD, SPEAKER
3-751-954-11 MANUAL INSTRUCTION (English) (E)
3-751-954-41 MANUAL INSTRUCTION (EnglishFrencItGerman,
Spanish.DuthESwedish.Italianportugusse) (AEP)
*4-932-456-01 CUSHION,LOWER
*4-932-457-01 CUSHION, UPPER
*4-950-280-01 INDIVIDUAL CARTON

not supplied
0 Items marked *" are not stocked since
they are seldom required for routine ser-
vice Some delay should be anticipated
when ordering these items.

cuMPAci SPEAKER SYSTEM
S 0 NY;

English

. 92604604

Sony Corporation Printed in Japan
Audio Group © 1992 3

Published by Customer Relations and Service Group
