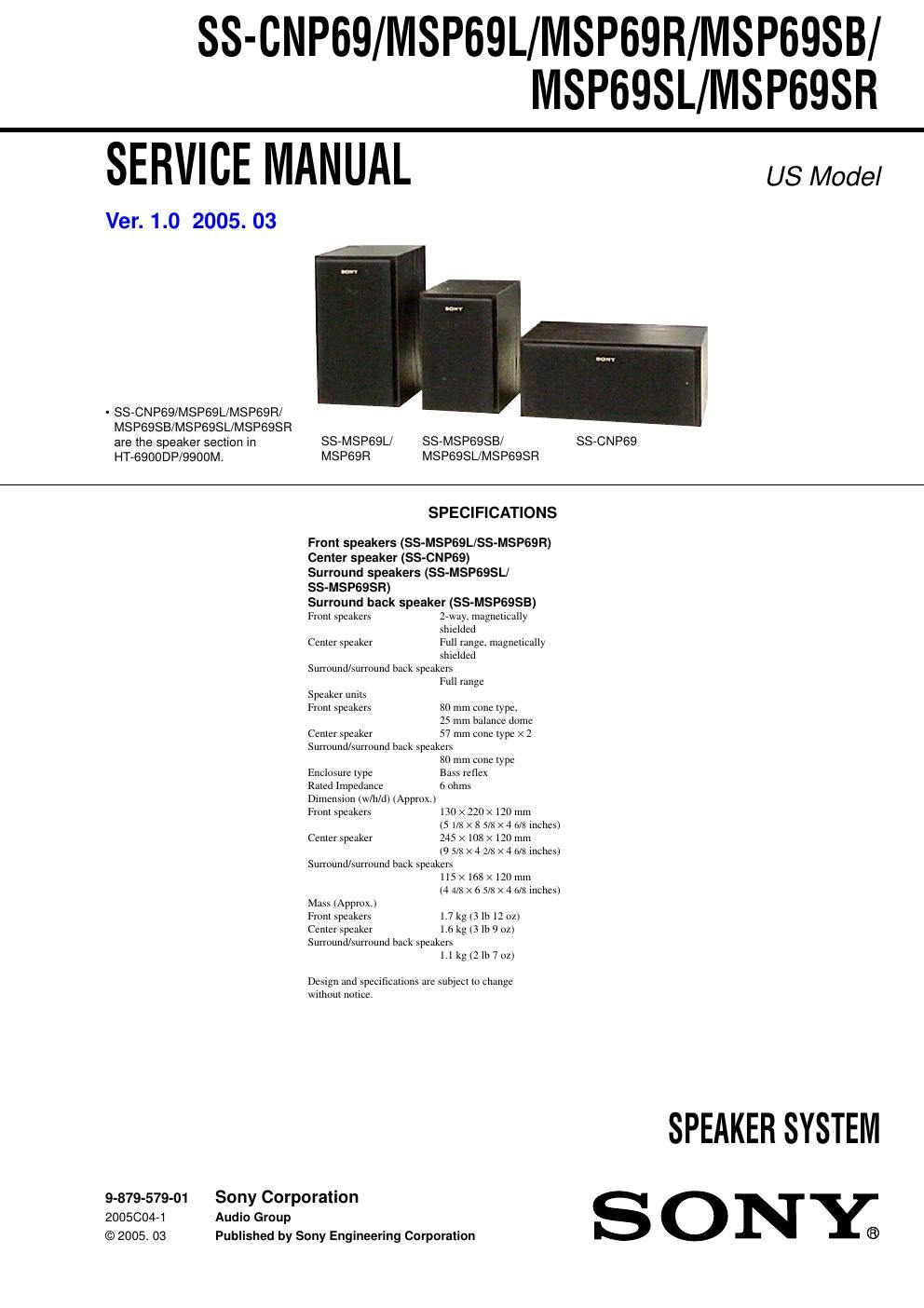

Page 1
2
SS-CNP69/MSP69L/MSP69R/MSP69SB/MSP69SL/MSP69SRSECTION 1
EXPLODED VIEW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
-
The mechanical parts with no reference
number in the exploded views are not supplied.
1 A-1086-879-A OVERALL ASSY (CNP69)
2 4-874-614-12 SCREW (1) (3.5X14), TAPPING
3 1-826-142-11 LOUD SPEAKER (5.7cm) (CNP69)
4 A-1090-407-A GRILLE FRAME ASSY (CNP69)
5 1-694-516-11 TERMINAL, SPEAKER (EXCEPT CNP69)
6 A-1084-010-A GRILLE FRAME ASSY (MSP69L/MSP69R) 7
1-826-141-11 LOUD SPEAKER (8cm) (MSP69L/MSP69R)
8 1-826-140-11 LOUD SPEAKER (2.5cm) (MSP69L/MSP69R)
9 A-1090-408-A GRILLE FRAME ASSY
(MSP69SB/MSP69SL/MSP69SR)
10 1-825-953-11 SPEAKER (8cm) (MSP69SB/MSP69SL/MSP69SR)
11 4-986-971-01 SCREW (3.5) (EXCEPT CNP69)
4 5
2
2
2
11
2
2
2 2
2
2 1
67
8
10 9
SS-CNP69
SS-MSP69SB/MSP69SL/MSP69SR SS-MSP69L/MSP69R
not supplied
not supplied
not suppliednot
supplie
d
not supplied
not supplied
not supplied
3
5
2
11
2
not
supplied
