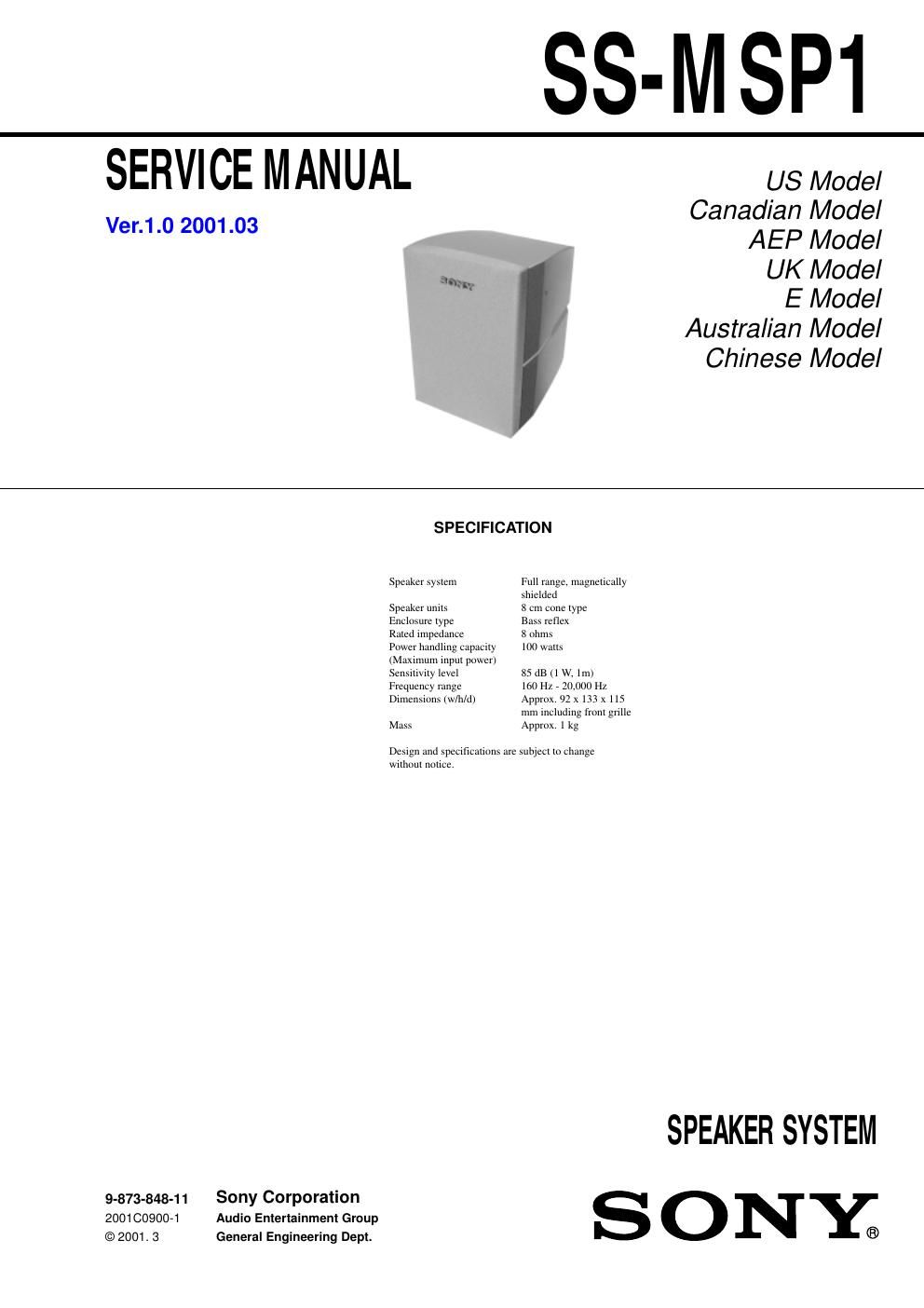

Sony ss msp 1 service manual

Page 1

2 Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ EXPLODED VIEW AND PARTS LIST NOTE:- The mechanical parts with no reference num- ber in the exploded views are not supplied. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) -†‘-†‘ Parts Color Cabinet's Color 1 A-4412-740-A PANEL ASSY, FRONT (SILVER) 1 A-4412-738-A PANEL ASSY, FRONT (BLACK) 2 1-757-882-11 CORD (NETWORK) 3 4-986-971-01 SCREW (3.5) 4 A-4412-741-A CABINET ASSY (SILVER) 4 A-4412-739-A CABINET ASSY (BLACK) 5 1-694-516-11 TERMINAL, SPEAKER 6 4-229-803-11 PACKING SP1 1-529-981-11 SPEAKER (8CM) SS-MSP1 SP1 12 33 3 45 6

Page 2

3 SS-MSP1 MEMO
