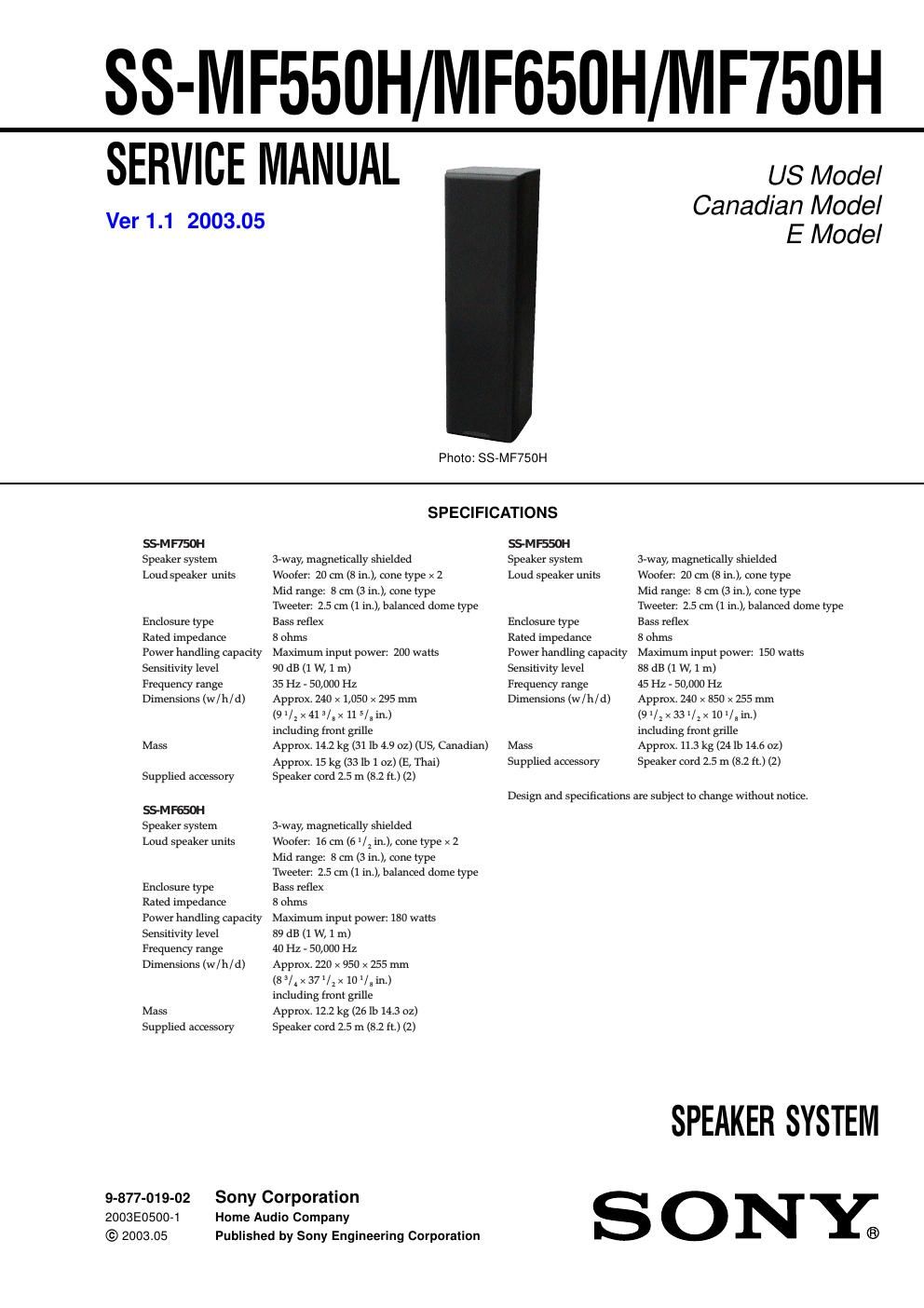

Page 1
2
SS-MF550H/MF650H/MF750H
EXPLODED VIEWS
-Items marked * are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
NOTE:
-
-XX and -X mean standardized parts, so they
may have some difference from the original
one.
- Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
-†‘-†‘
Pa rts Color Cabinet's Color
(1) SS-MF550H
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-4955-372-1 GRILLE FRAME ASSY (US, Canadian)
1 X-4955-548-1 GRILLE FRAME ASSY (E, Thai)
3 4-235-904-01 SCREW (4X25)
4 4-235-903-01 SCREW (3.5X20)
5 A-4737-358-A CABINET ASSY, SPEAKER (US, Canadian) 5
A-4737-562-A CABINET ASSY, SPEAKER (E, Thai)
6 4-210-830-01 CATCHER
SP1 1-825-318-11 SPEAKER (20cm)
SP2 X-4955-367-1 TW ASSY (M/T FRAME) (2.5cm, 8cm)
1 3
4
5
6
not suppliednot supplie
d
not supplied
SP1 SP2
not supplied
V
er 1.1
Page 2
3
SS-MF550H/MF650H/MF750H
(2) SS-MF650H
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4955-371-1 GRILLE FRAME ASSY (US, Canadian)
51 X-4955-544-1 GRILLE FRAME ASSY (E, Thai)
53 4-235-904-01 SCREW (4X25)
54 4-235-903-01 SCREW (3.5X20)
55 A-4737-357-A CABINET ASSY, SPEAKER (US, Canadian)55 A-4737-519-A CABINET ASSY, SPEAKER (E, Thai)
56 4-210-830-01 CATCHER
SP4 1-825-317-11 SPEAKER (16cm)
SP5 1-825-317-11 SPEAKER (16cm)
SP7 X-4955-367-1 TW ASSY (M/T FRAME) (2.5cm, 8cm)
5153
54
55
56
not supplie d
not supplie d
not supplied
not supplied
SP4
SP5
SP7
53
V
er 1.1
