Sony ss mf 500 h service manual

This is the 4 pages manual for sony ss mf 500 h service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 4
left right

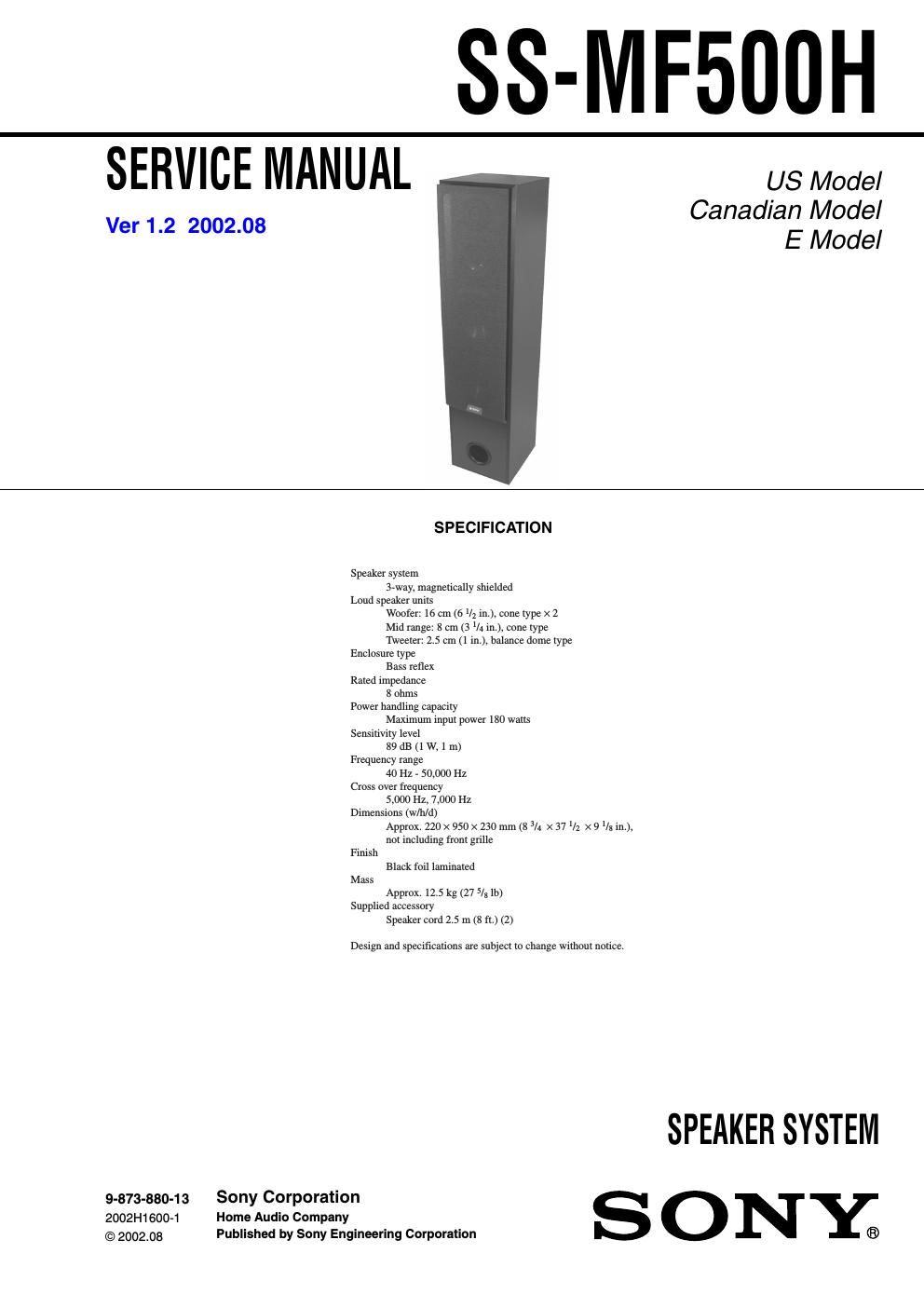

sony ss mf 500 h service manual

Extracted text from sony ss mf 500 h service manual (Ocr-read)

Page 1

2 Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ EXPLODED VIEW AND PARTS LIST NOTE:-The mechanical parts with no reference num- ber in the exploded views are not supplied. SS-MF500H Ver 1.2 2002.08 1 2223 4 5 5 6 SP1 SP1 SP2 SP3 1X-4953-626-1 SPEAKER CABINET ASSY 24-934-223-12 SCREW (4X20) 34-932-425-01 SCREW (3.5X20) 4X-4953-627-1 GRILLE FRAME ASSY 54-240-830-01 CATCHER 61-761-189-11 MOUNTED PC BOARD (NETWORK) SP1 1-529-999-11 SPEAKER (16cm) SP2 1-529-998-11 SPEAKER (2.5cm) SP3 1-544-773-11 SPEAKER (8cm)Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ ACCESSORIES ************ 1-574-558-11 SPEAKER CORD (2.5m) 4-233-331-01 MANUAL, INSTRUCTION (ENGLISH,FRENCH,SPANISH,PORTUGUESE, TRADITIONAL CHINESE,SYMPLIFIED CHINESE)

Page 2

3 SS-MF500H MEMO
