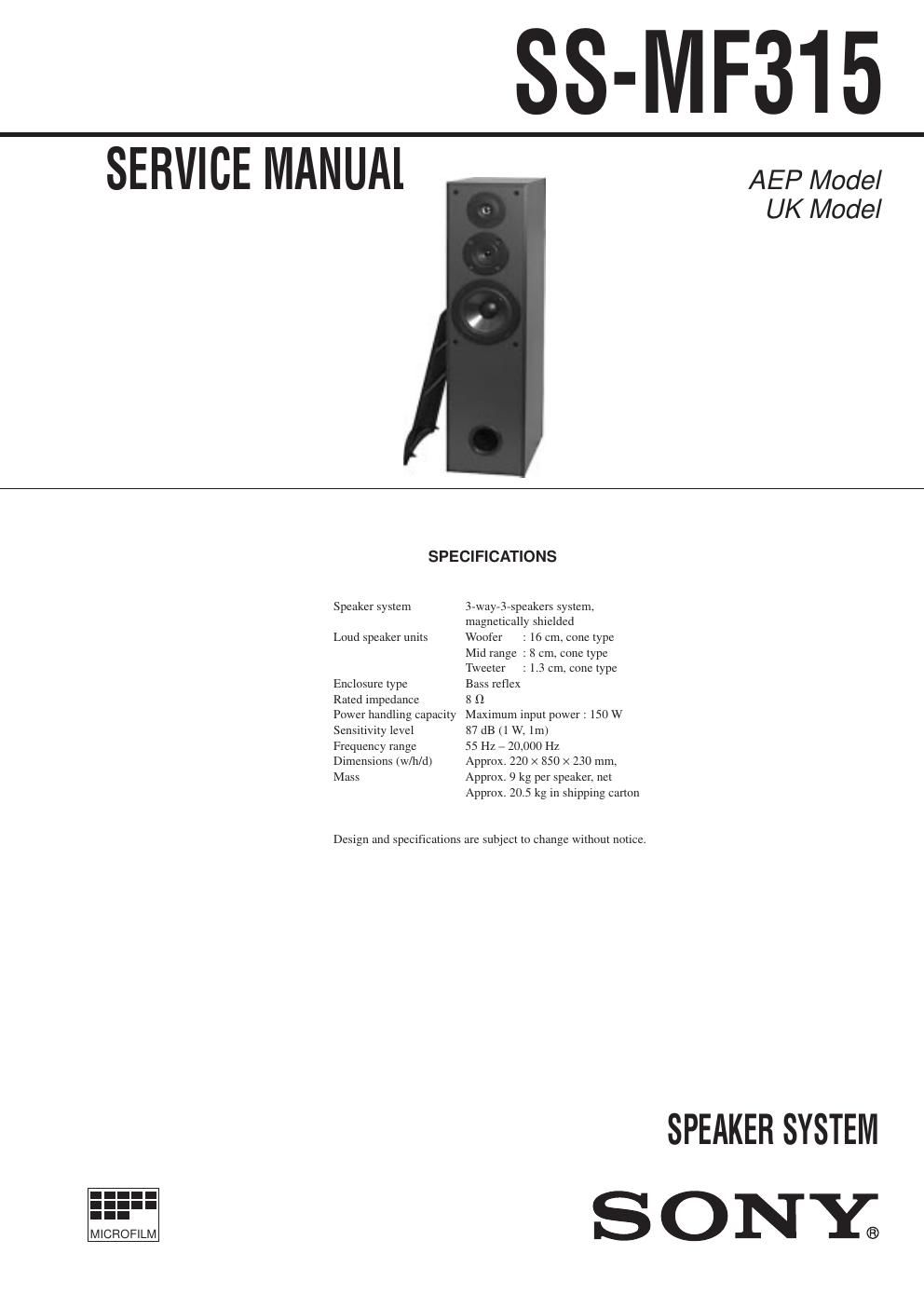

Sony ss mf 315 service manual

Page 1

2 Sony Corporation Home Audio Company 9-928-821-31 99F7549-1 Printed in Hungary ©1999.6 Published by Quality Assurance Dept. SS-MF315 EXPLODED VIEW AND PARTS LIST 1 X-4951-234-1 FRAME ASSY, GRILLE 2 4-222-556-01 SCREW +P 3.5 ´ 15 3 4-220-849-01 DUCT 4 4-220-563-01 CATCHER 5 1-791-508-11 INTERCONNECTING CORD 6 4-217-524-01 CABINET, SPEAKER (BLACK) 6 4-221-280-01 CABINET, SPEAKER (MAPLE) 7 1-527-529-11 TERMINAL BOARD SP1 1-529-326-11 SPEAKER (16 cm) (WOOFER) SP2 1-529-275-11 SPEAKER (8 cm) (MID RANGE) SP3 1-529-256-11 SPEAKER (1.3 cm) (TWEETER)ACCESSORIES & PACKING MATERIALS ******************************** 1-751-495-1 CORD, SPEAKER 3-866-061-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,SPANISH,PORTUGUESE, GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH, FINNISH,RUSSIAN,POLISH,CZECH, HUNGARIAN) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SP1 SP2 SP3 6 2 2 2 2 2 2 1 7 4 4 3 5
