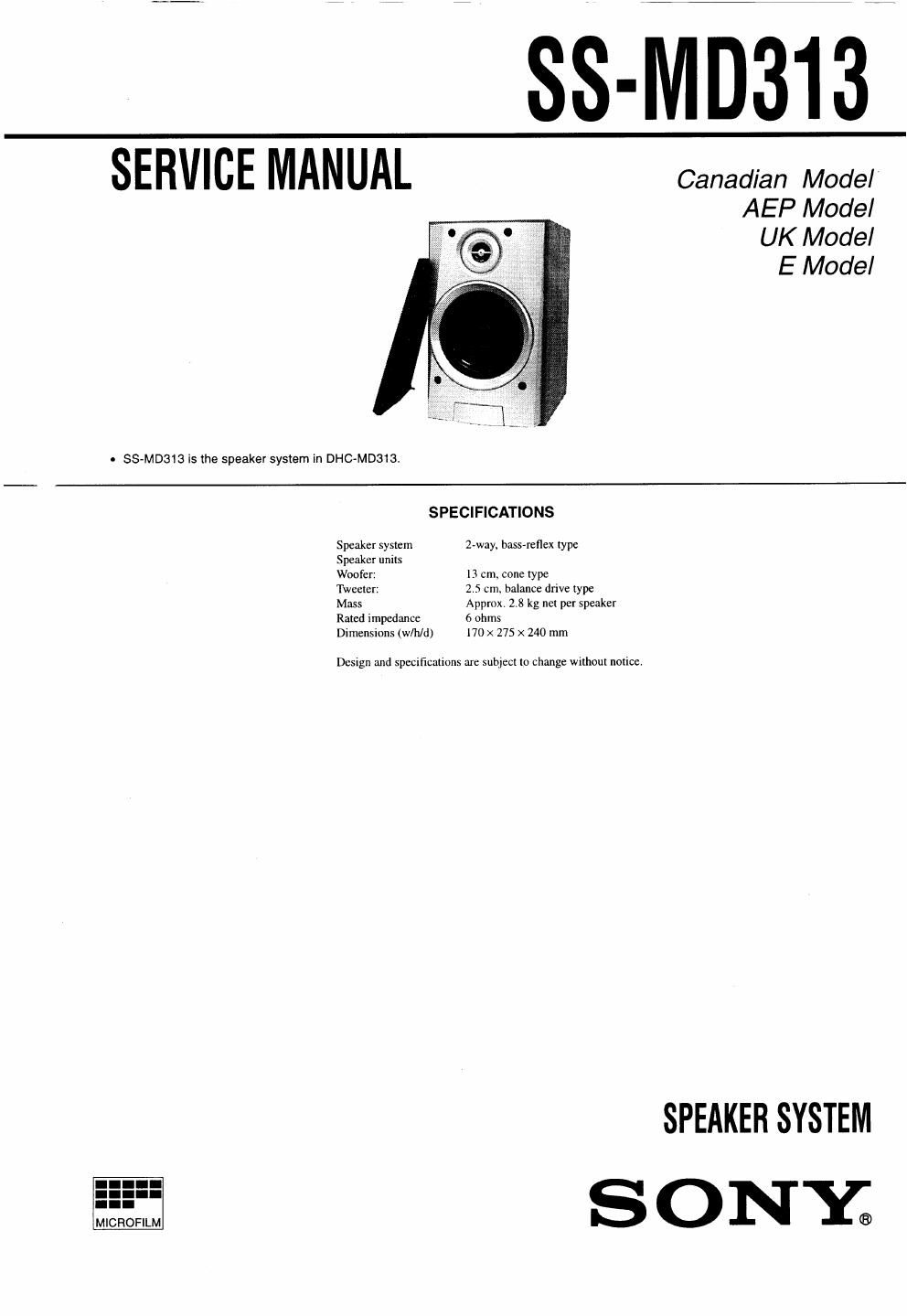

_SS-MD313
SERVICE IVTANUAL Mode,
AEP Model
UK Model
E Model
- SS-MD313 is ihe speaker system in DHC-MDS13.
SPECIFICATIONS
Speaker system 2-way. bassAreflex type
Speaker units
Woofer: 13 cm, cone type
Tweeter: 2.5 cm, balance drive type
Mass Approx 28 kg net per speaker
Rated impedance 6 ohms
Dimensions (wlh/d) 170 x 275 X 240 mm
Design and specificaiions are subject to change without notice.
SPEAKER SYSTEM
EXPLODED VIEW AND PARTS LIST
NOTE:
0 ~XX and -X mean standardized pans, so they . Abbreviation
may have some difference from the original AED: North European
one.
- Items marked * are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
. The mechanical parts with no reference num-
ber in the exploded views are not supplied.
/
1
_e_N9_R i. . Baum Deminmn JEELR k mm m Malian EsmaLk
1 X-494B-899-1 FRAME ASSY, GRILLE * e A-4384-826-A CABINETASSY, SPEAKER
z X»494s-aga-1 PANEL Assv, FRONT (EXCEPT German, AED)
* a 4-963-07501 CATCHER * 6 A-4384-827-A CABINET Assv, SPEAKER (German, AED)
4 4-374-61421 SCREW(6) (3.5)(14), TAPPING SP1 1-505-727-21 SPEAKER (2.50m)
5 9-911-840»xx PACKING SP2 1-505-773-11 SPEAKER (12cm)
Sony Corporation 97Loooso47-1D
9-920-957-12 Home A&V Products Company Primed in Japan @1991 12
Published by General Engineering Dept.
_ 2 _ (Snlbaura)
