Sony ss mb 300 h service manual

This is the 4 pages manual for sony ss mb 300 h service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 4
left right

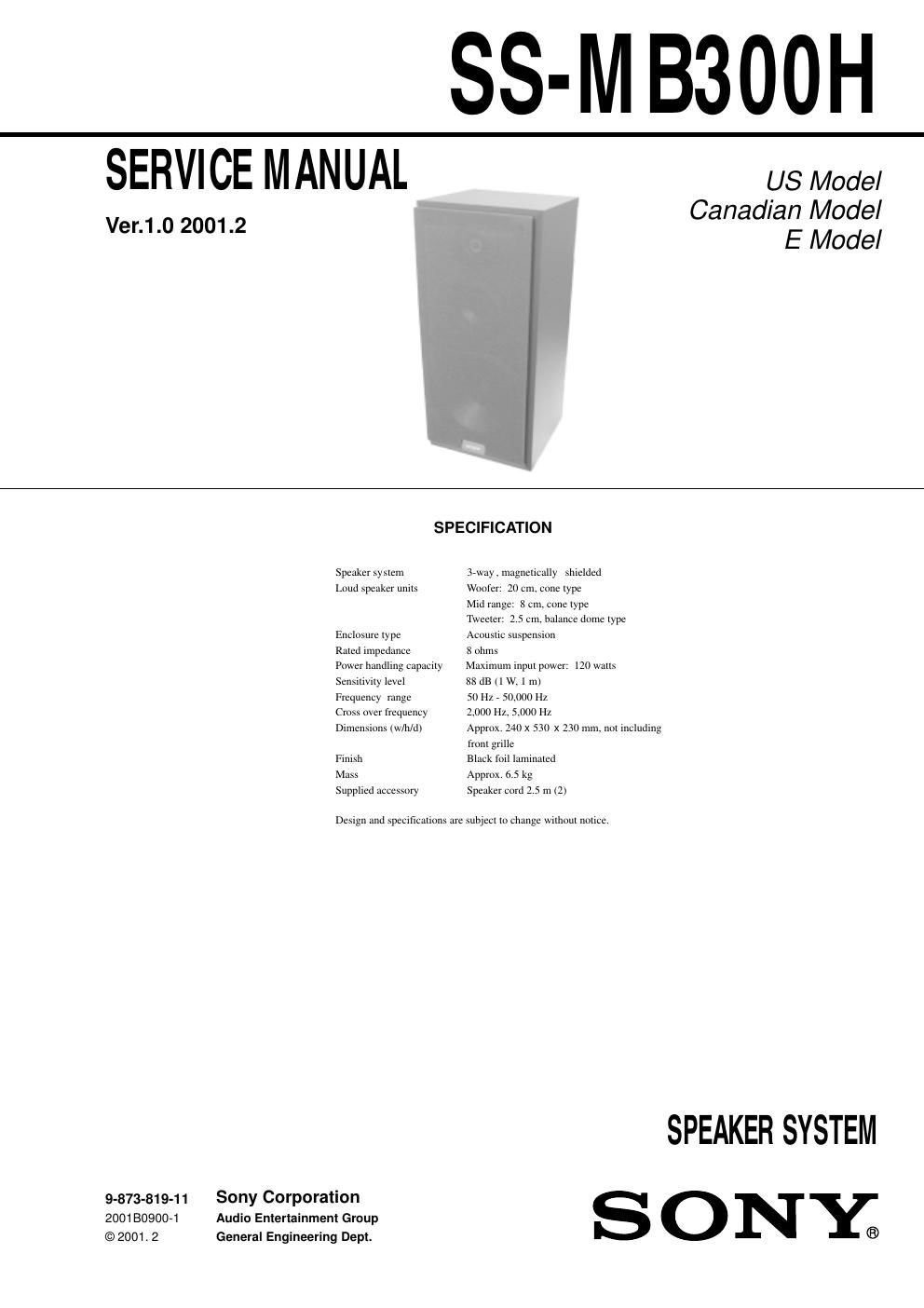

sony ss mb 300 h service manual

Extracted text from sony ss mb 300 h service manual (Ocr-read)

Page 1

2 Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ EXPLODED VIEW AND PARTS LIST NOTE:- The mechanical parts with no reference num- ber in the exploded views are not supplied. SS-MB300H 1 2 22 2 3 34 5 4 SP1SP3 SP2 1 X-4953-585-1 FRAME ASSY, GRILLE 2 4-934-223-01 SCREW (4X20), TAPPING 3 4-932-425-01 SCREW (3.5X20) 4 4-210-830-01 CATCHER 5 A-2004-825-A CABINET ASSY SP1 1-544-774-11 SPEAKER (20CM) SP2 1-544-775-11 SPEAKER (8CM) SP3 1-529-998-11 SPEAKER (2.5CM)ACCESSORIES & PACKING MATERIALS ******************************* 1-769-433-11 CORD, SPEAKER (2.5M) 4-233-921-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, PORTUGUESE, TRADITIONAL CHINESE, SYMPLIFIED CHINESE) Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“
