Page 1
- 2 -
9-959-703-11

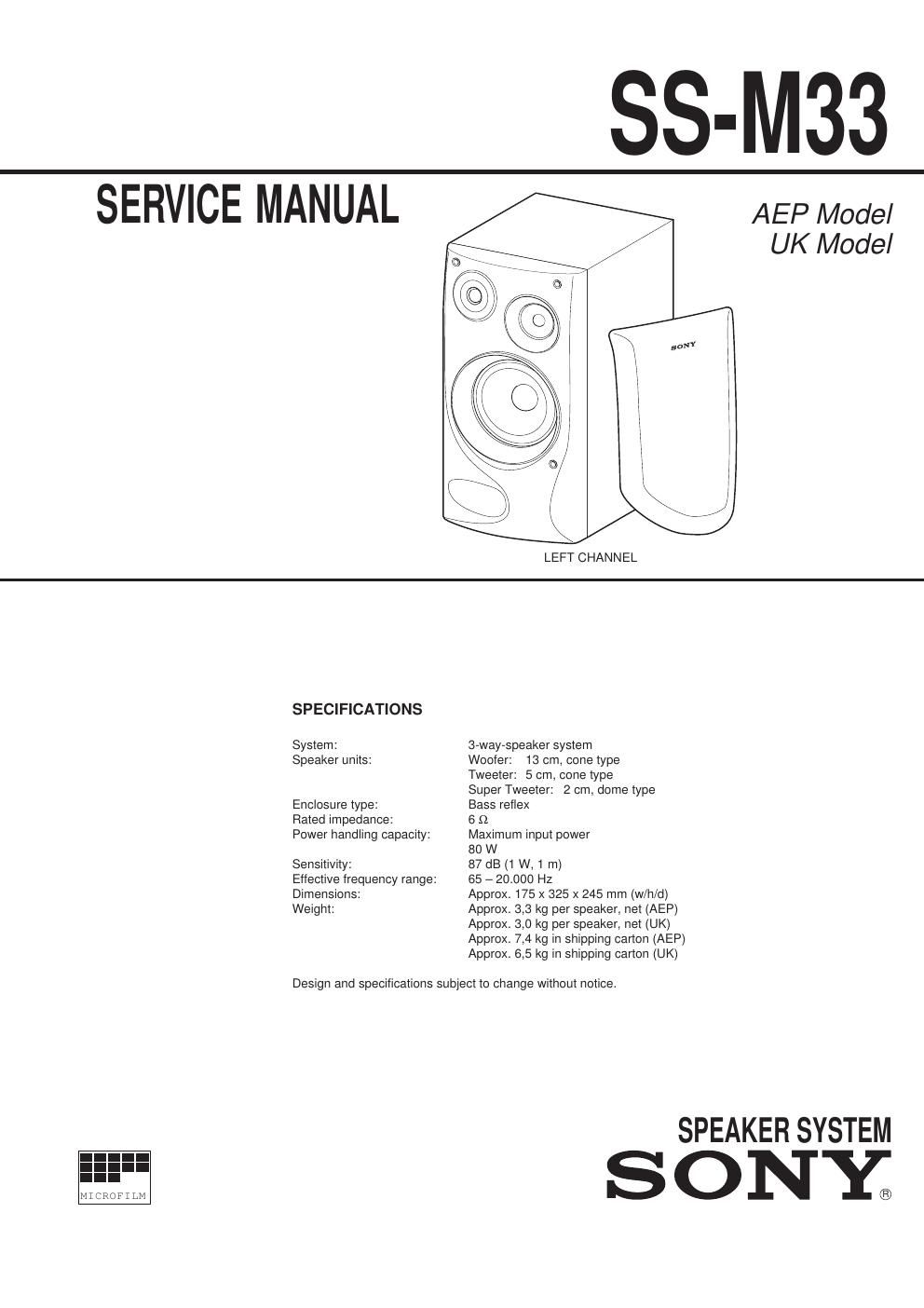

SS-M33
1. SCHEMATIC DIAGRAM
SP2 Tweeter
SP1 Woofer
2. EXPLODED VIEW AND PARTS LIST
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
Ref. No. Part No. Description Remark
1 X-4944-785-1 SPEAKER CABINET (AEP)
1 X-4944-806-1 SPEAKER CABINET (UK)
2 X-4944-781-1 FRONT PANEL (L) ASSY
X-4944-782-1 FRONT PANEL (R) ASSY
3 X-4944-783-1 GRILLE FRAME ASSY (L) (AEP)
X-4944-784-1 GRILLE FRAME ASSY (R) (AEP)
3 X-4944-804-1 GRILLE FRAME ASSY (L) (UK)
X-4944-805-1 GRILLE FRAME ASSY (R) (UK)
4 1-537-529-11 TERMINAL BOARD
5 1-765-648-11 INTERCONNECTING CORD (AEP)
5 1-765-647-11 INTERCONNECTING CORD (UK)
6 4-965-620-01 GASKET
7 4-960-359-01 PACKING
8 4-960-364-01 SCREW + P 3.5 X 8 (AEP)
8 4-960-366-01 SCREW + P 3.5 X 9.5 (UK)
9 4-960-361-01 SCREW + P 4.0 X 15 (AEP)
9 4-960-367-01 SCREW + P 4.0 X 12 (UK)
10 9-965-619-01 DUCT Ref. No. Part No. Description Remark
11 4-969-428-01 CUSHION (AEP)
11 4-969-560-01 CUSHION (UK)
SP1 1-504-157-21 SPEAKER (13 cm CONE)
SP2 1-504-504-21 SPEAKER (5 cm CONE)
SP3 1-544-293-51 SPEAKER (2 cm DOME)
*4-965-622-01 CARTON (AEP)
*4-965-802-01 CARTON (UK)
4-965-621-01 CUSHION
*4-957-982-01 POLYETHYLENE BAG (AEP)
*4-958-144-01 POLYETHELENE BAG (UK)
3-758-430-11 INSTRUCTION MANUAL (AEP)
3-758-473-11 INSTRUCTION MANUAL (UK)
1-751-495-11 SPEAKER CORD (AEP)
1-751-496-11 SPEAKER CORD (UK) 2,2 mF
Left channel unit
1
2 34 5
6 7
9 SP1 SP2
SP3
8
10
11
+
+ +
SP3 Super Tweeter
English
94G7557-1
Printed in Germany
© 1994.7
Published by Home A&V Div. Quality Engineering Dept.
Consumer A&V Products Company
Home A&V Division
Sony Corporation
