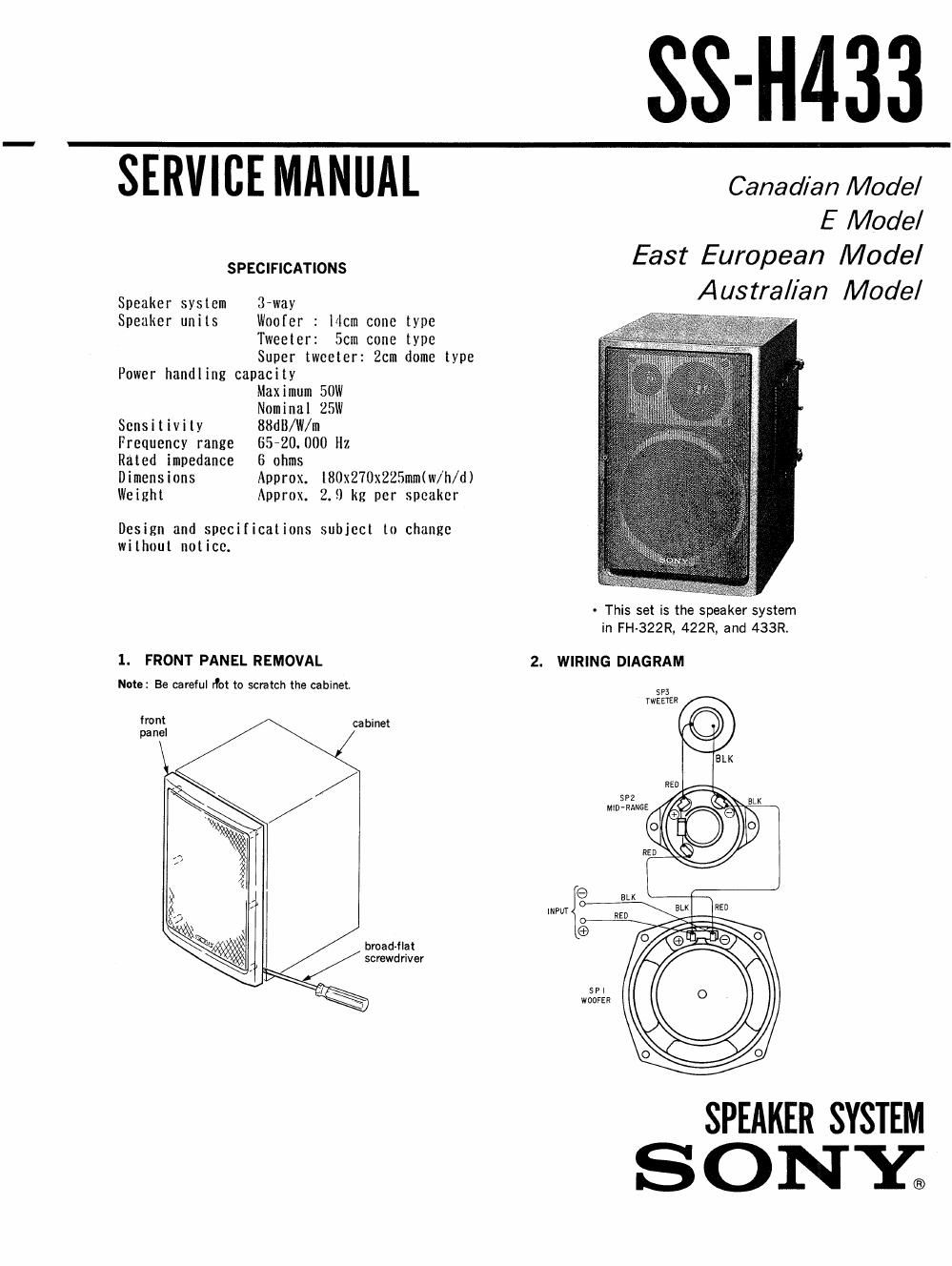

Page 1

S-H433

SERVICEMt-t-NUAL

SPECIFICATIONS

Speaker system 3-way
Speaker units Woofer : t4cm cone type
Tweeter: 5cm cone type
Super tweeter: 2cm dome type
Power handling capacity
Maximum 50W
Nominal 25w
Sensitivity 88dIt/W/m
Frequency range 65-20.000 Hz
Rated impedance 6 ohms
Dimensions Approx. l80x270x22r )mmtw/h/d)
WMMt Mmm.29kgwrsmum

Design and specifications subject to change
without notice.

1. FRONT PANEL REMOVAL

Note: Be careful not to scratch the cabinet,

fro nt
pa net

cabinet

broadvflat
screwd river

Canadian Model

E Model

East European Model
Austral/an Model

- This set is the speaker system
in FH-322R, 422R, and 433R.

2. WIRING DIAGRAM

SP3
IWEETER

SPEAKER SYS:M

SONY

Page 2

SS-H433

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 The mechanical parts with no reference 0 -XX, -X mean standardized pans, so

number in the exploded views are not

supplied. the original one
0 Items marked t are not stocked since 0 Color Indiation of Appea
they are seldom required for routine Example:

service. Some delay should be antici-
pated when ordering these items.

1
Parts Color

they may have some differences from

rance Parts

KNOB, BALANCE (WHITELJRED)

T
Cabinet's Color

No. Part Nm

1 X-494l-240-1
X-4941-241-1

9-911-844-XX
X-494l-242-1
4-870-003-00

.uwm

1-575-228-11
4-942-654-01
4-874-614-61

Noam

9-956-408-1 1

Description 52;.
PANBL(R)ASSY, FRONT 8
PANEL(L)ASSY, FRONT 9
PACKING SP1
CABINET ASSY, SPEAKER SP2
CLIPPER, CORD SP3

CORD, SPEAKER
PANEL, SIDE
SCREW +BVTP 3.5X16

Sony Corporafion

Audio Group
__2__

Part No. Description

4-874-614-11 SCREW +BVTP 3.5X14
7-685-646-79 SCREW +BVTP 3X8 TYPE2 SLIT

1-544-237-11 WOOEER
1-544-236-11 MIDRANGE
1-544-293-21 TWEETER

PACKIN BLOCK

4*920-151-01 SHEET, PRETECTION

* 4-932-444-01 CUSHION august.
91E0422-1
Printed in Japan
© 1991 5

Published by Customer Relations and Service Group
