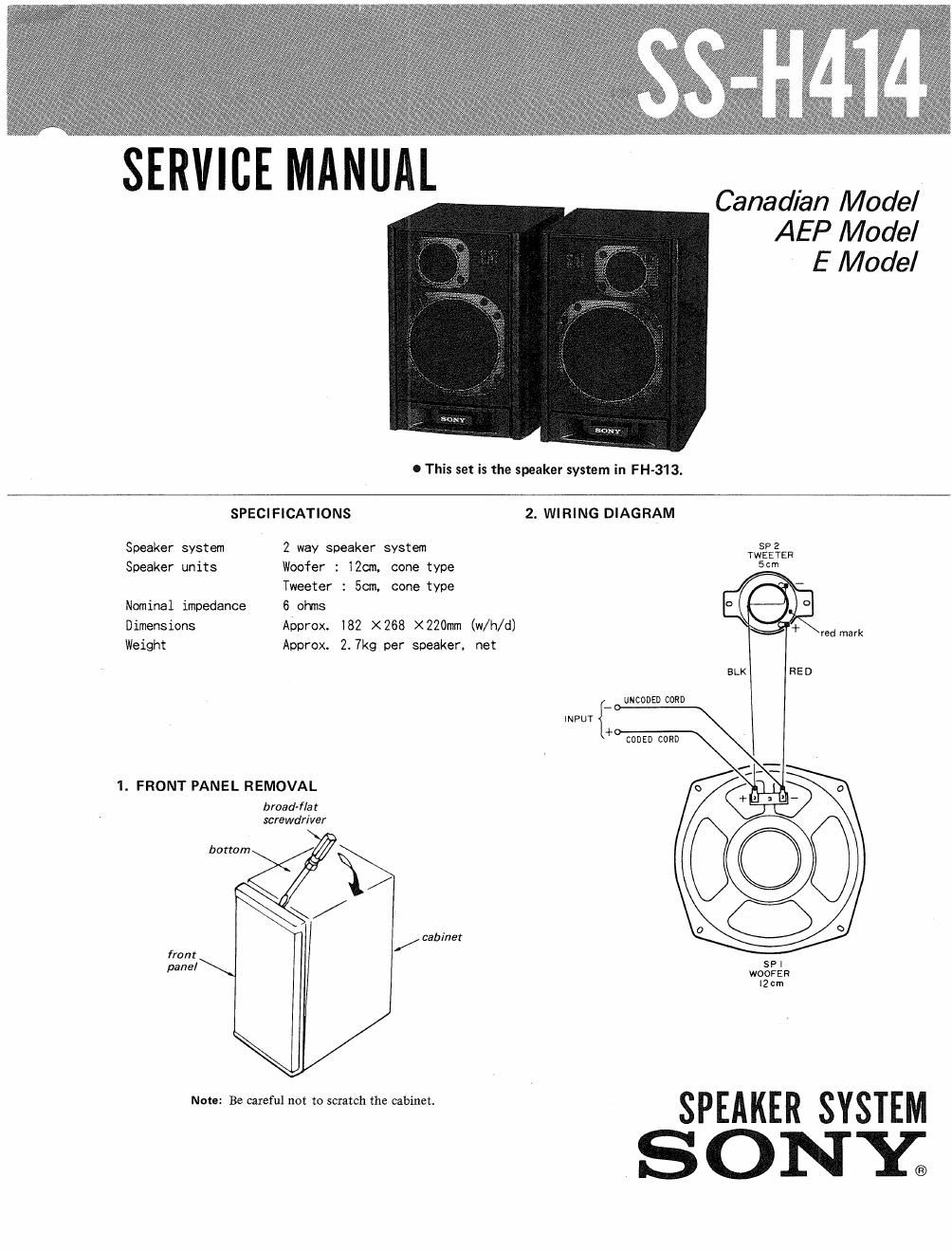

Page 1
SERVICE MANUAL
Canadian Model
AEP Model
E Model
0 This set is the speaker system in FH-313.
SPECIFICATIONS
Speaker system 2 way speaker system
Speaker units Woofer : 120m, cone type
Tweeter 2 50m, cone type
Nominal impedance 6 ohms
Dimensions Approx. 182 X268 X220mm (w/h/d)
Weight Approx. 2. 7kg per speaker, net
1. FRONT PANEL REMOVAL
broad-fie t
screwdrlver
bottom
X \/
\ /
cabinet
front /
panel
Note: Be careful not to scratch the cabinet.
2. WIRING DIAGRAM
- UNCODED CORD
' cooEn CORD
SP |
WOOFER
IZCm
SPEAKER SYSTEM
SONY;
Page 2
SS-H414
3. EXPLODED VIEW AND PARTS LIST
No. Part No. Description Remarks & Part No. Description
I X-4929-602-1 (E) .............. PANEL (LEFT) ASSY, FRONT 901 1-574-439-11 CORD, SPEAKER
X-4929-618-1 (Canadian,AEP)...PANEL (LEFT) ASSY, FRONT
SPT 1-544-077-T'l SPEAKER (1204)
2 X-4929-601-I (E) .............. PANEL (RIGHT) ASSY. FRONT SP2 1-544-078-11 SPEAKER (50M)
X-4929-617-1 (Canadian,AEP)...PANEL (RIGHT) ASSV, FRONT
*4-920-140-01 PACKING
*X-4929-603-1 CABINET ASSY, SPEAKER
4-929-606-01 PANEL. SIDE
4-870-003-00 CLIPPER, CORD ACCESSORY & PACKING MATERIAL
7-685-646-79 SCREW *BVTP 3X8 TVPEZ SLIT
4-874-614-11 SCREW (4,} (3,.5X14), TAPPING *4-857-137-01 CUSHION
4-874-614-61 SCREW (4) (3;5X16), TAPPING 4-920-151-OT SHEET, PROTECTION
wmwmmaw
English
. 89006384
Sony Corporation Printed in Japan
9.953.570. Audio Group © 1989.4
__ 2 _ Published by AN Engineering Service Dept.
