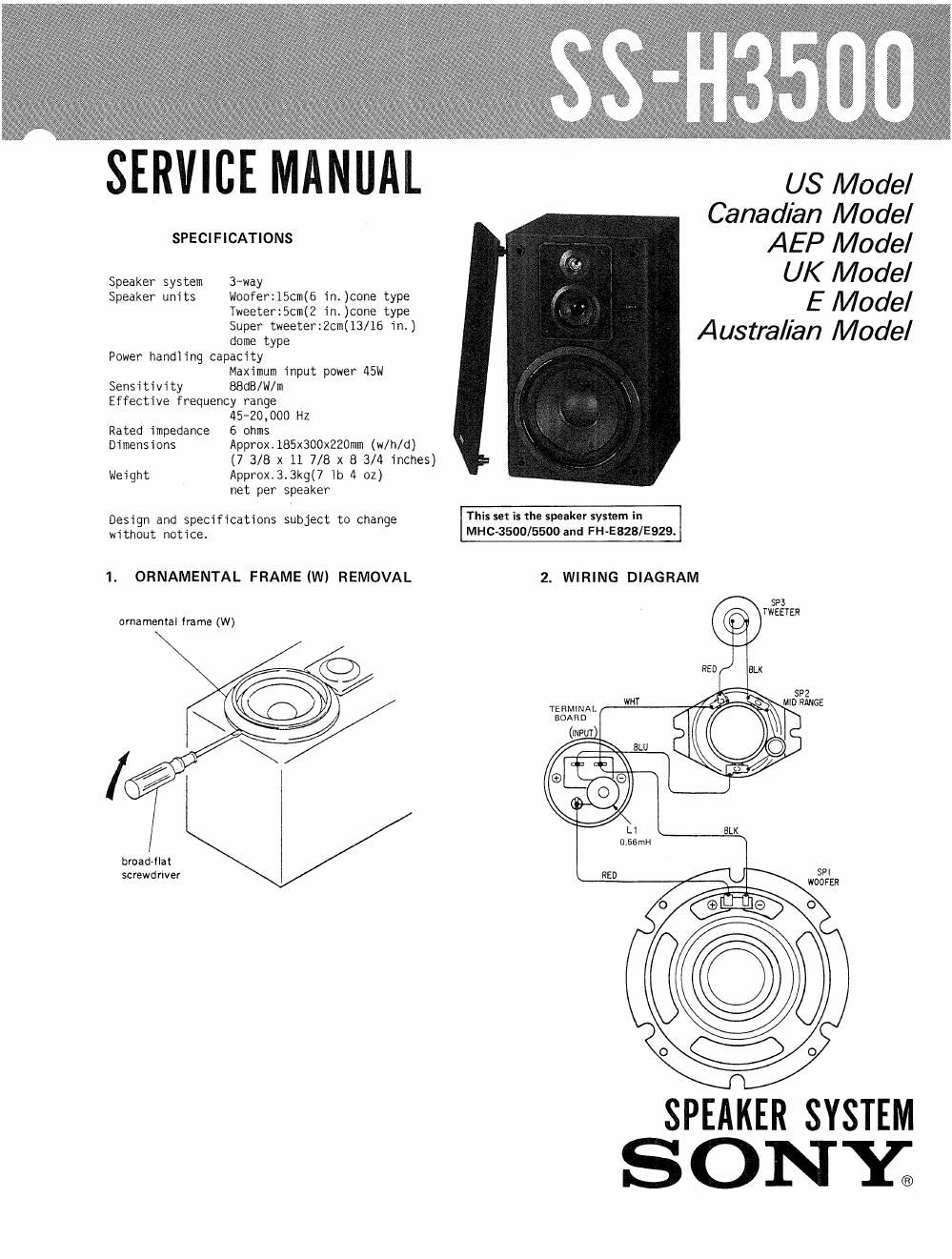

Page 1

SERVICE MANUAL us Model

Canadian Model
AEP Model

UK Model

E Model
Australian Model

SPECIFICATIONS

Speaker system 3-way

Speaker units Woofer215cm(6 in. )cone type
Tweeter:5cm(2 in,)cone type
Super tweeter:2cm(13/16 in.)
dome type

Power handling capacity
Maximum input power 45W

Sensitivity 88dB/Wm
Effective frequency range
45-20,000 Hz
Rated impedance 6 ohms
Dimensions Approx.185x300x220mm (w/h/d)
(7 3/8 x 11 7/8 x B 3/11 inches)
Weight Approx.3.3kg(7 lb 4 oz)
net per speaker
Design and specifications subject to change This 59! '9 Speake'symm 3"
without notice, MHC-3500/5500 and FH-E828/E929.
1. ORNAMENTAL FRAME (W) REMOVAL 2. WIRING DIAGRAM

ornamental frame (W)

TERMINAL

broadAflat
screwdriver

SPEAKER SYSTEM
ONY;

Page 2

SS-H35OO

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 The mechanical parts with no reference
number in the exploded views are not
supplied.

o Items marked "it" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

No Part No Description ELECTRICAL PARTS
I X-4929-630-1 FRAME ASSY, GRILLE Ref.N0. Part No. Description
2 4-929-680-01 FRAMEW), ORNAMENTAL
3 X-4929-631-3 FRAME ASSY, ORNAMENTAL 901 1n537-145-ll TERMINAL BOARD
4 X-4929-632-l CABINET ASSV, SPEAKER l. 1 1-459-866-11 COIL, NETWORK(0.56MMH)
5 4-874-614-11 SCREW(4)(3.5X14), TAPPING SP1 1-544'275-11 WOOFER
SP2 1-5441276-11 MID RANGE
6 4-932-425-01 SCREWBISXZO), TAPPING SP3 1-544-293-11 TWEETER
7 7-685-645-79 SCREW +BVTP 3X6 TVPEZ IT?!

ACCESSORY Sr PACKING MATERIAL

1-575-495-11 (AEP)~- CORD,SPEAKER
3-751619-11 (AEP)o-c

MANUAL, INSTRUCTION
*4857-137-01 CUSHION
*4-938-405-01 (AEP)~-

INDIVIDUAL CARTON

English

. 900061004

Sony Corporation Printed in Japan

9-955-844-11 Audio Group ©1990.4

Published by Customer Relations and Service Group

_2_
