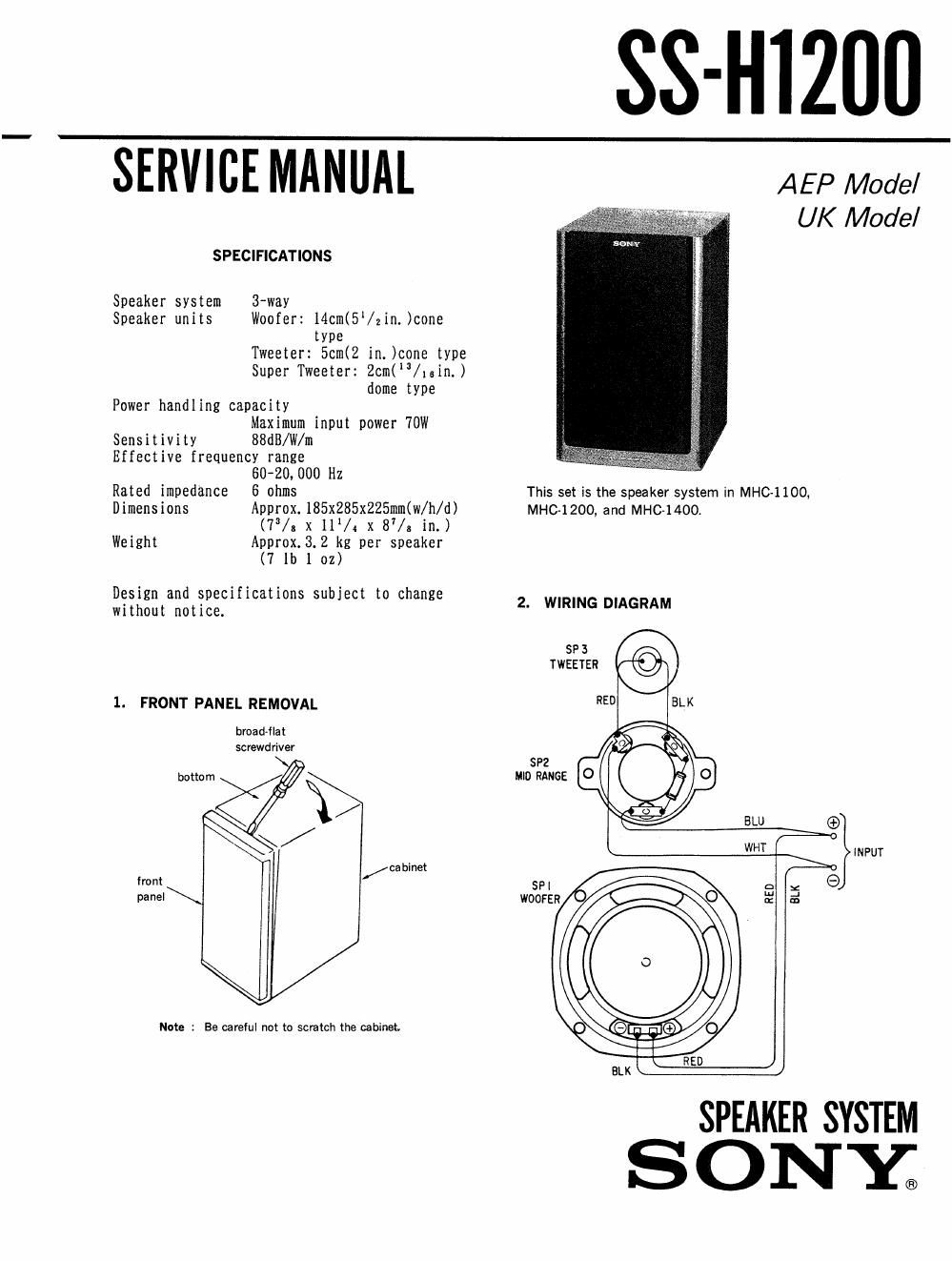

Page 1

SS-HIZUU

SERVICE MANUAL

SPECIFICATIONS

Speaker system 3-way
Speaker units Woofer: l4cm(5/2in. )cone
type
Tweeter: 5cm(2 in. )cone type
Super Tweeter: 2cm(/.ein.)
dome type
Power handling capacity
Maximum input power 70W
Sensitivity 88dB/W/m
Effective frequency range
60~20, 000 Hz
Rated impedance 6 ohms

Dimensions Approx. 185x285x225mm(w/h/d)
(7V3 x11'/4 x 87/. in.)

Weight Approx. 3.2 kg per speaker
(7 lb 1 oz)

Design and specifications subject to change
without notice.

1. FRONT PANEL REMOVAL

broad-flat
screwdriver
bottom
X \/
\ /
ca binet

fro nt /
pa nel

Note : Be careful not to scratch the cabinet

AEP Model
UK Model

This set is the speaker system in MHCJIOO,
MHC-1200, and MHC-1400i

2. WIRING DIAGRAM

SP 3
TWEETER

RED

SP2

MID RANGE
@
INPUT
SP l e
wooren

SPEAKER SYSTEM
S ON Y;

Page 2

S 1200

3. EXPLODED VIEW AND PARTS LIST

NOTE:

The mechanical parts with no reference
number in the exploded views are not
supplied.

Items marked "=3 " are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

0

XX, -X mean standardized parts, so
they may have some differences from
the original one.

Color Indication of Appearance Parts

Example:
KNOB, BALANCE (WHITE)...(RED)

7
Parts Color

T
Cabinets Color

RetNo Part No. Description Remarks Ref.No Part No Description Remarks
1 X-4941-545-1 PANEL ASSY. FRONT 6 X-4941-413-1 CABINET ASSY, SPEAKER
2 7682-248-09 SCREW +K3><8 7 1-537-145-11 TERMINAL BOARD (SPEAKER)
3 4-874rél4-11 SCREW +BVTP3.5><14 SP1 1-544-237~11 SPEAKER (130M)
4 *X-494l~441-1 FRAME ASSY, TW SP2 1544446-11 SPEAKER (50M)
5 7-685r646-79 SCREW +BVTP3><8 TYPE2 SLIT SP3 1-544-235-11 SPEAKER (ZCM)
ACCESSORY & PACKING MATERIALS
****$***$* *****¥i*$$**$*
1-575-49541 CORD, SPEAKER (UK)
3-753'187-11 MANUAL INSTRUCTION (UK)
4-920-151-01 SHEET, PROTECTION
*4-932-444-91 CUSHION
Engllsh
,, Sony corporation ed
9-956-338-11' Audlo Group © 1991 3

Published by Customer Relations and Service Group

_2*
