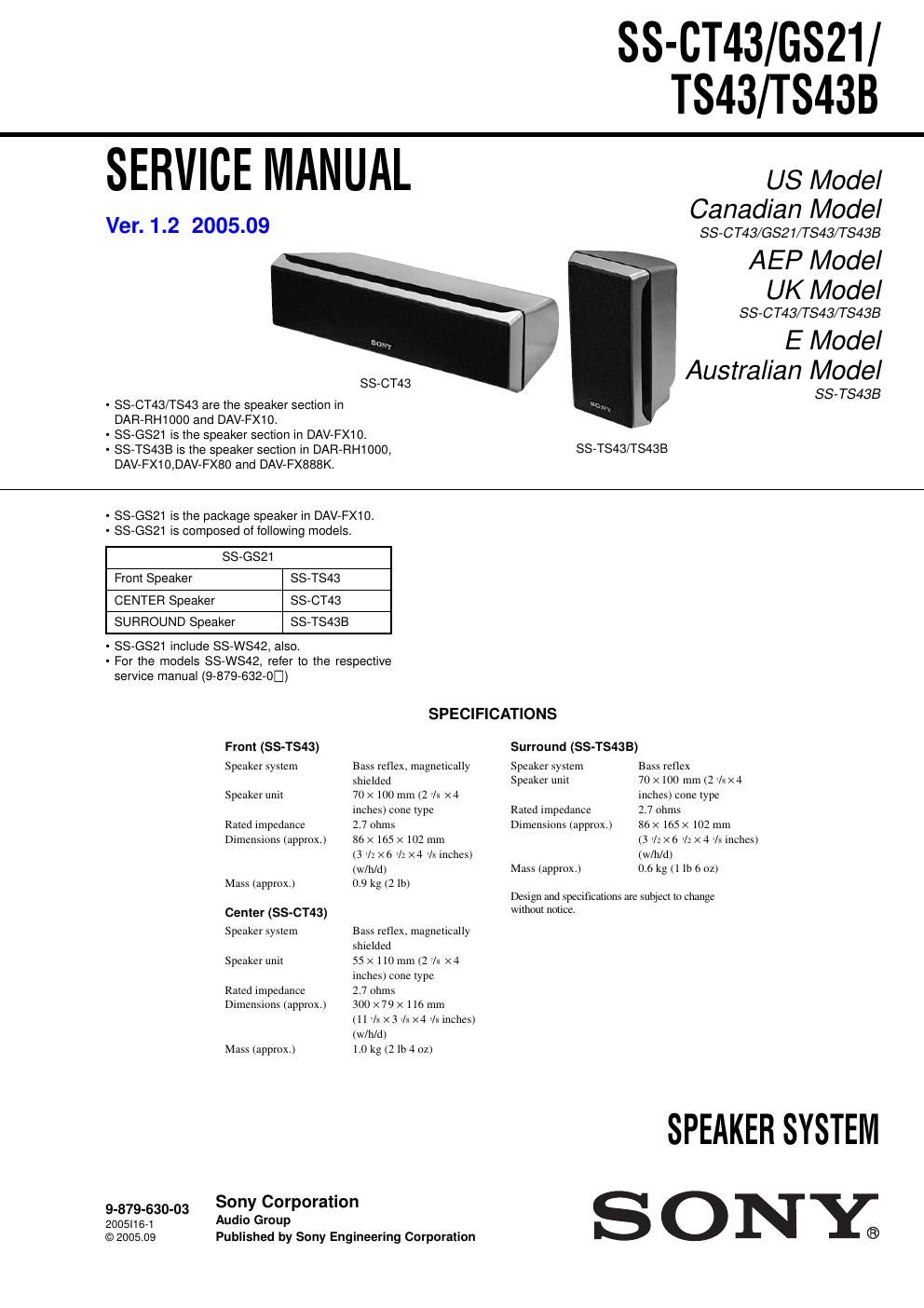

Sony ss gs 21 service manual

This is the 4 pages manual for sony ss gs 21 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 4
left right
sony ss gs 21 service manual

Extracted text from sony ss gs 21 service manual (Ocr-read)

Page 1

2 SS-CT43/GS21/TS43/TS43B EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.-XX and -X mean standardized parts, so they may have some difference from the original one. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1X-2055-023-1 ASSY, GRILLE FRAME (PUNCHING) 24-874-614-81 +BVTP 3.5X16 TYPE2 32-048-751-01 SCREW +BVTP 3.5X14 TYPE2 44-255-545-01 FOOT5A-1107-337-A OVERALL ASSY 61-694-836-11 TERMINAL, SPEAKER 1 2 2 2 3 4 not suppliednot supplied not supplied 5 6 SS-CT43

Page 2

3 SS-CT43/GS21/TS43/TS43B SS-TS43 SS-TS43B Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 5152 5255 53 54 54 54 SP1not supplied not supplied not supplied 51 X-2055-022-1 ASSY, GRILLE FRAME (PUNCHING) 52 4-874-614-81 +BVTP 3.5X16 TYPE2 53 2-048-751-01 SCREW +BVTP 3.5X14 TYPE2 54 4-255-545-01 FOOT 55 A-1107-336-A OVERALL ASSY (TS43)55 A-1107-338-A OVERALL ASSY (TS43B) SP1 1-826-185-11 SPEAKER (7X10cm) (TS43) SP1 1-826-188-11 SPEAKER (7X10cm) (TS43B)
