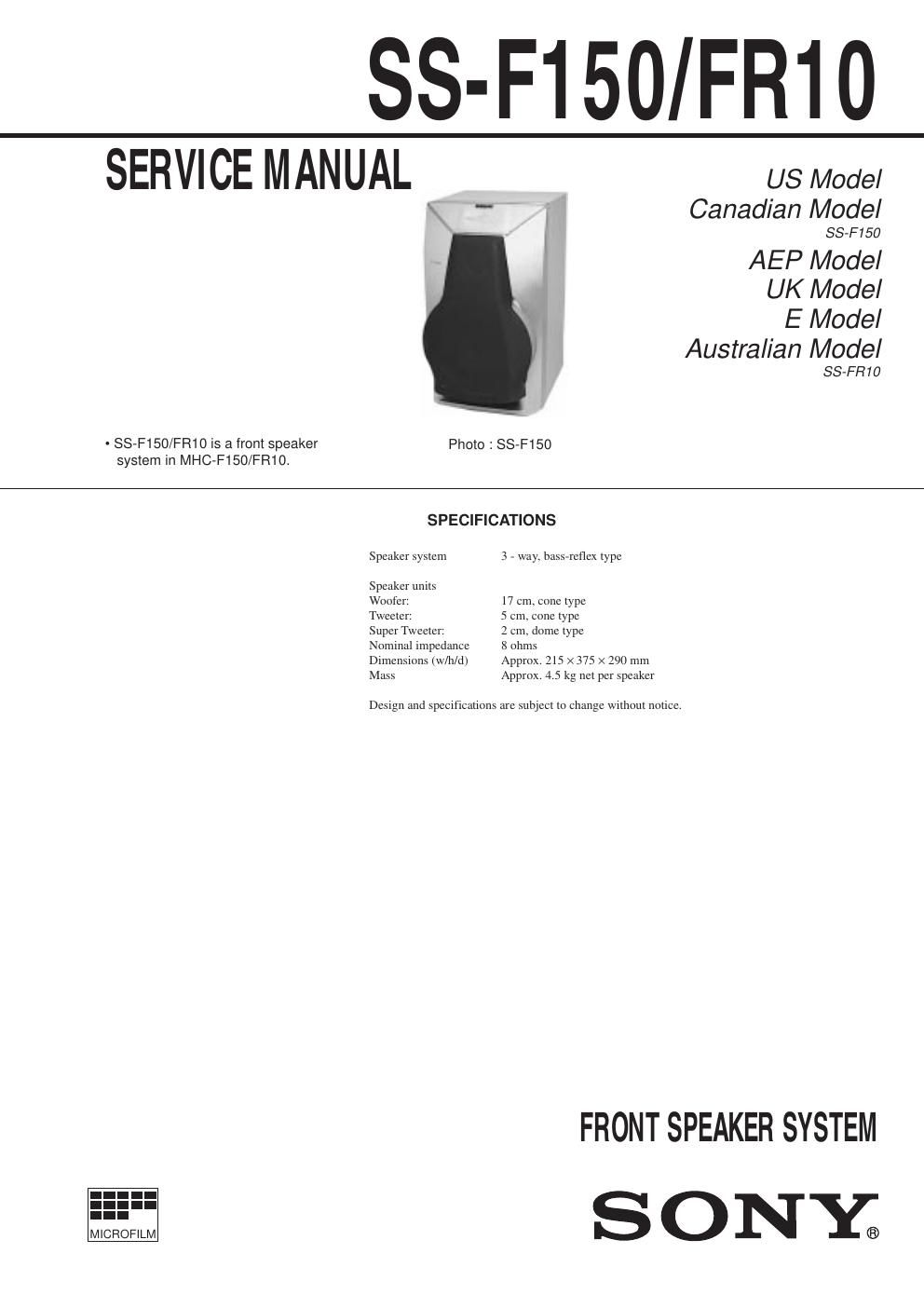

EXPLODED VIEW AND PARTS LIST
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-4949-939-1 FRAME ASSY, GRILLE
*2 4-963-075-01 CATCHER
3 X-4949-940-1 PANEL ASSY, FRONT (F150)
3 X-4950-128-1 PANEL ASSY, FRONT (FR10)
4 4-874-614-61 SCREW (4) (3.5 ´ 16), TAPPING
5 4-942-029-01 PACKING
*6 A-4411-060-A CABINET ASSY, SPEAKER
7 1-537-332-13 TARMINAL BOARD
8 4-900-329-01 PACKING
SP1 1-505-563-11 SPEAKER (2 cm)
SP2 1-505-861-11 SPEAKER (5 cm)
SP3 1-505-940-11 SPEAKER (16 cm)
ACCESSORIES & PACKING MATERIALS
*******************************
1-769-306-11 CORD, SPEAKER NOTE:
¥ Items marked Ò*Ó are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
2 2
1
48 57
4 36
SP1
SP2
SP3
