Sony ss ex 77 service manual

This is the 2 pages manual for sony ss ex 77 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
sony ss ex 77 service manual

Extracted text from sony ss ex 77 service manual (Ocr-read)

Page 1

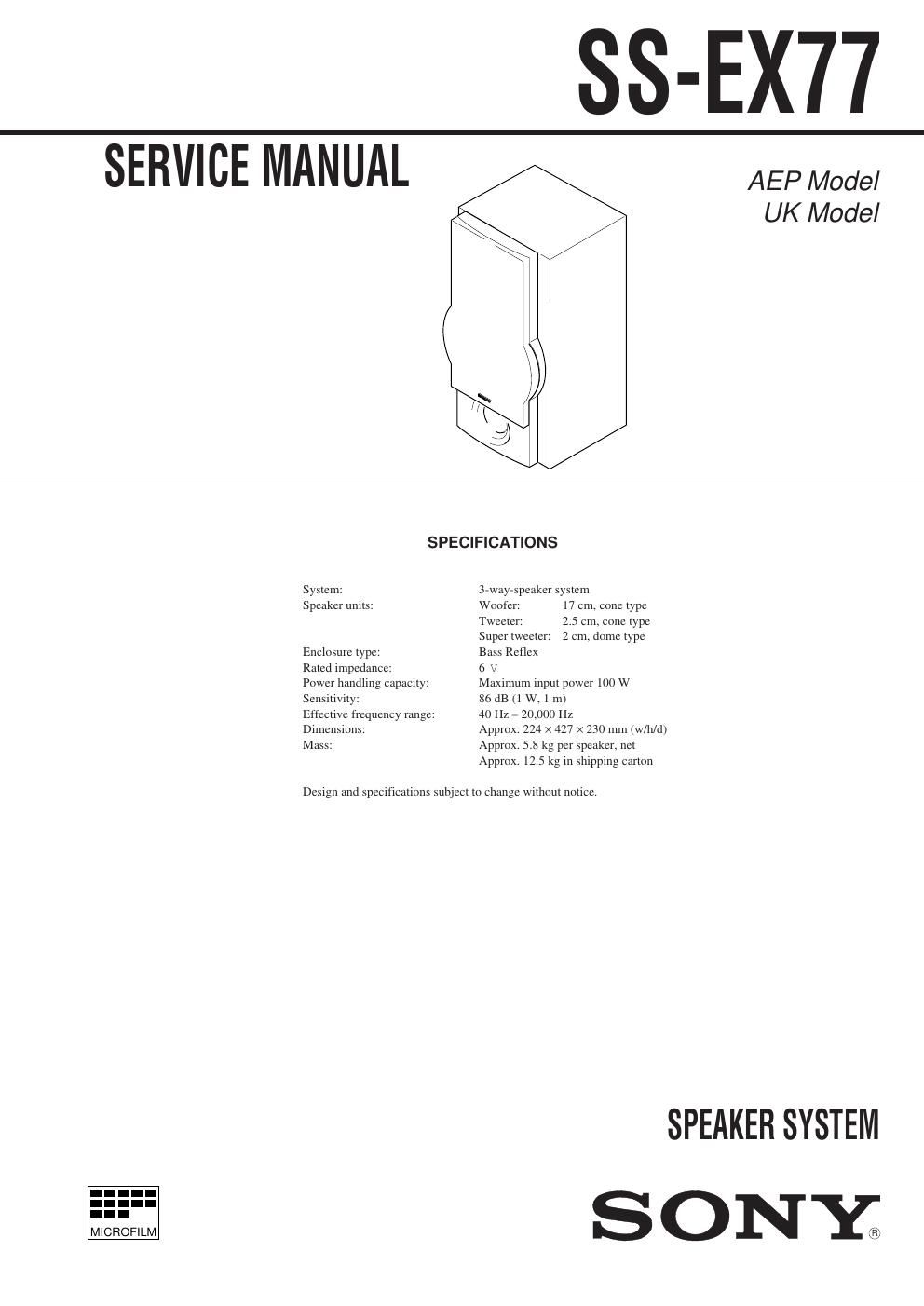

SS-EX77 Ñ 2 Ñ Sony Corporation Home A&V Products Company 97L7548-1 Printed in Germany © 1997. 12 Published by General Engineering Dept. (Shibaura) 9-922-747-11 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-859-983-01 INSTRUCTION MANUAL (ENGLISH,FRENCH,SPANISH,PORTUGUESE ,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH ,FINNISH,RUSSIAN,POLISH,CZECH ,HUNGARIAN) 1-777-149-11 SPEAKER CORD 1 X-4948-643-1 GRILLE FRAME ASSY 2 4-990-505-11 CATCHER 3 4-990-900-01 FRONT PANEL 4 4-960-364-01 SCREW + 3.5 X 8 5 4-960-363-01 SCREW + 3.5 X 16 6 4-990-902-01 DUCT 7 4-992-026-01 SPEAKER CABINET 8 4-995-650-01 ACOUSTIC ABSORBENT 9 1-589-850-11 MOUNTED P.C.B. 10 4-992-028-01 PACKING SP1 1-505-693-11 SPEAKER (16CM) SP2 1-505-692-11 SPEAKER (2CM, 2.5CM) 1 5 55 56 10789 SP1SP2 2 2234 4 2
