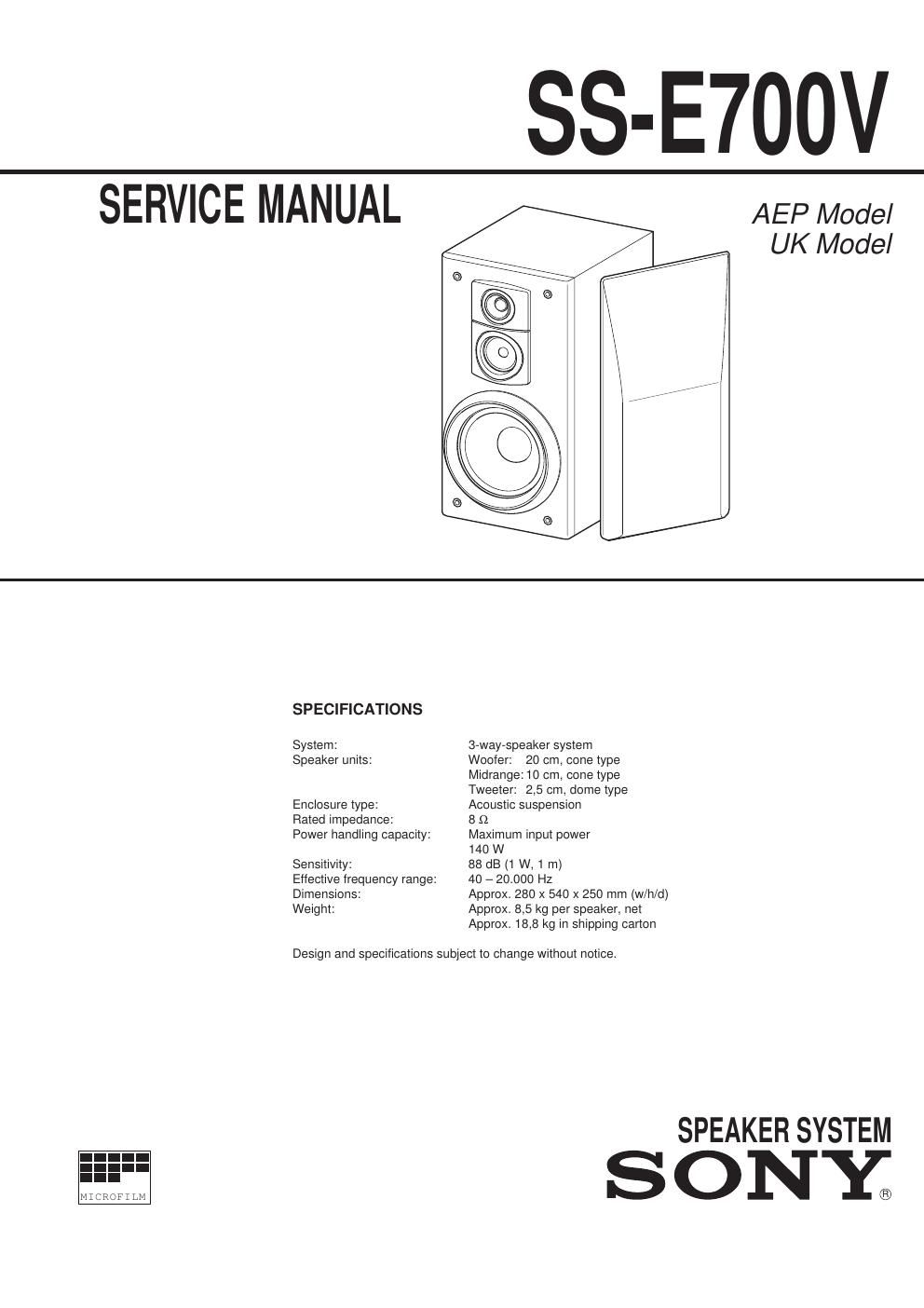

SS-E700V
9-959-760-11
NOTE:
¥ The mechanical parts with no reference
number in the exploded views are not
supplied.
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
1. EXPLODED VIEW AND PARTS LIST
Ref. No. Part No. Description Remark
1 X-4945-120-1 SPEAKER CABINET ASSY
2 X-4945-121-1 GRILLE FRAME ASSY
3 4-967-949-01 COSMETIC
4 4-967-950-01 COSMETIC
5 1-589-662-11 MOUNTED P.C.B.
6 1-537-529-11 TERMINAL BOARD
7 4-960-361-01 SCREW +P 4,0 X 15
8 4-960-365-01 SCREW +K 3,0 X 40
9 4-962-102-01 WASHER
10 4-962-104-01 WASHER Ref. No. Part No. Description Remark
SP1 1-504-638-11 SPEAKER (20 cm CONE)
SP2 1-504-208-11 SPEAKER (10 cm CONE)
SP3 1-504-270-21 SPEAKER (2,5 cm DOME)
1-751-496-11 SPEAKER CORD
3-759-145-01 INSTRUCTION MANUAL
*4-967-953-01 CUSHION (U)
*4-967-954-01 CUSHION (B)
*4-967-952-01 CARTON
*4-968-587-01 POLYETHYLENE BAG
1 2
4 3
6
5 7
7
7
SP1 SP2 SP3
89 10
