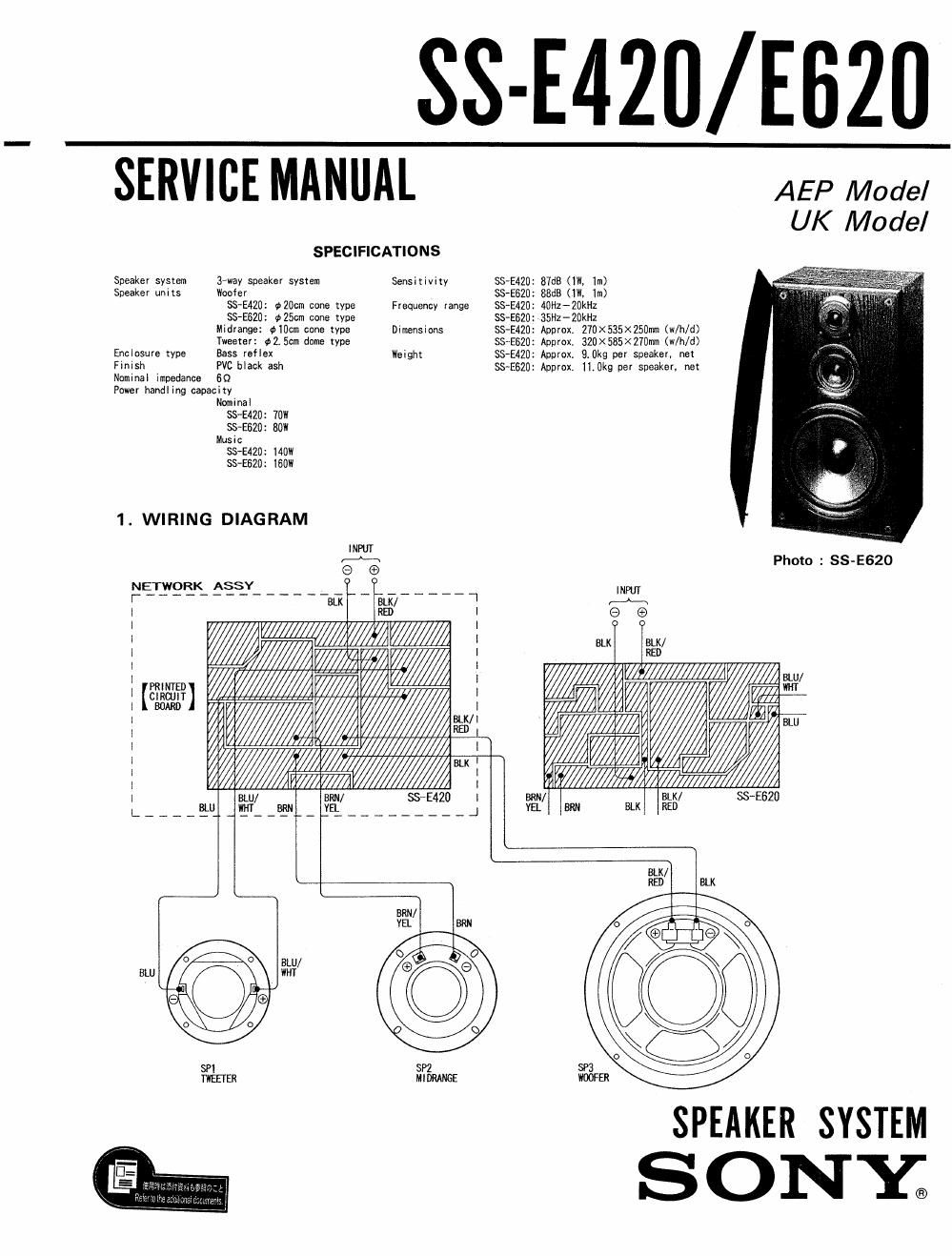

Sony ss e 620 service manual

Page 2

SS-E420/ E620

2. EXPLODED VIEW AND PARTS LIST

NOTE:

' The mechanical parts with no reference
number in the exploded views are not

supplied.
' Color Indication of Appearance Parts
Example:
KNOB, BALANCE(WHITE)H.(RED) 1 1
i 1
Parts color Cabinets color
I
No_. Part No. Description No_. Part No. Description
I 1331504824 FRAME ASSY, GRILLE (SS-E420) 10 T'81506I0I TERMINAL BOARD
I T-8150-483-1 FRAME ASSY, GRILLE (SS-E620) ii T-8151-653~I SCREW (+RK3.0> 2 T-8151-455-i SCREW (+P4.0><25), TAPPING SP1 T-8110-535-1 SPEAKER UNIT (TWETER:2,5cm)
3 T-8151-523-1 RING, COSMETIC (WDOFBT) (SS-E420) SP2 T-8110-475-1 SPEAKER UNIT (MIDRANGEflOcm)
3 T-815l-524-1 RING, COSMETIC (WDOFER) (SS-E620) SP3 T-8110-478-l SPEAKER UNIT (WO0FER:20cm) (SS-E420)
4 T815I~522~I RING, COSMETIC (MIDRANGE) SP3 T'8I10-479-I SPEAKER UNIT (WOOFERz250m) ($-E620)
5 T-8151-654-I SCREW, ROUND HEAD WOOD
6 T-8150-387-I WASHER (HEAD PAPER)
7 T-8150-509-A NETWORK ASSY (SS~E420)
7 T-8150*510-A NETWORK ASSY (SS-E620) ACC£$ORY 8 PACKING MATERIAL
8 T-8150'809-I WASHER (RUBBE? CORK) T'8I5l-578-1 MANUAL. INSTITJCTION (SS-E420)
9 T~8150"476-A BOX ASSY, SPEAKER (SS-E420) T8I51'579"I MANUAL, INSTRUCTION (SS-E620)
9 T-8150-477-A BOX ASSY, SPEAKER (SS'EGZO) T-8IIO-547-1 CORD. SPEAKER
' English
Sony Corporation 91H1859-1
Audio Group Printed in Japan
9-956-671-1 1 © 1991 8

_ 2 _ Published by Customer Relations and Service Group
