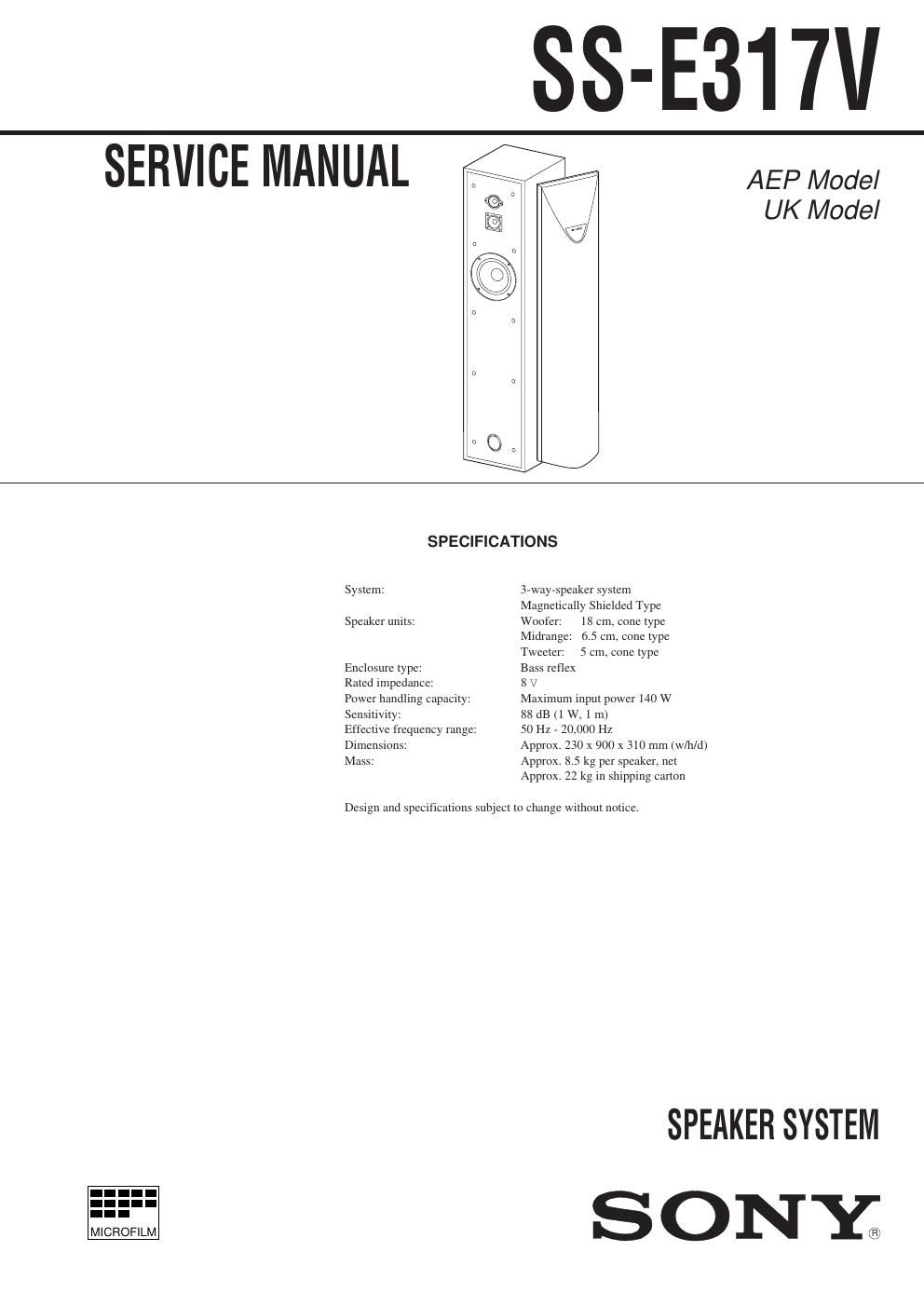

Sony ss e 317 v service manual

This is the 2 pages manual for sony ss e 317 v service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
sony ss e 317 v service manual

Extracted text from sony ss e 317 v service manual (Ocr-read)

Page 1

SS-E317V Ñ 2 Ñ Sony Corporation Home A&V Products Company 97I7554-1 Printed in Germany © 1997. 9 Published by General Engineering Dept. (Shibaura) 9-922-712-11 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-751-496-11 SPEAKER CORD 3-859-984-11 INSTRUCTION MANUAL (ENGLISH,FRENCH,SPANISH,PORTUGUESE ,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH ,FINNISH,RUSSIAN,POLISH,CZECH ,HUNGARIAN) 1 4-992-032-01 SPEAKER CABINET 2 X-4948-648-1 GRILLE FRAME ASSY 3 1-761-013-11 TERMINAL BOARD 4 4-961-778-01 DUCT 5 4-960-363-11 SCREW +B 3.5 X 22 SP1 1-505-768-11 SPEAKER (18 cm) (WOOFER) SP2 1-504-375-11 SPEAKER (6.5 cm) (MIDRANGE) SP3 1-504-378-11 SPEAKER (5 cm) (TWEETER) 43 5 SP3 SP2 SP1 21 5 5
