Sony ss e 107 v service manual

This is the 2 pages manual for sony ss e 107 v service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right

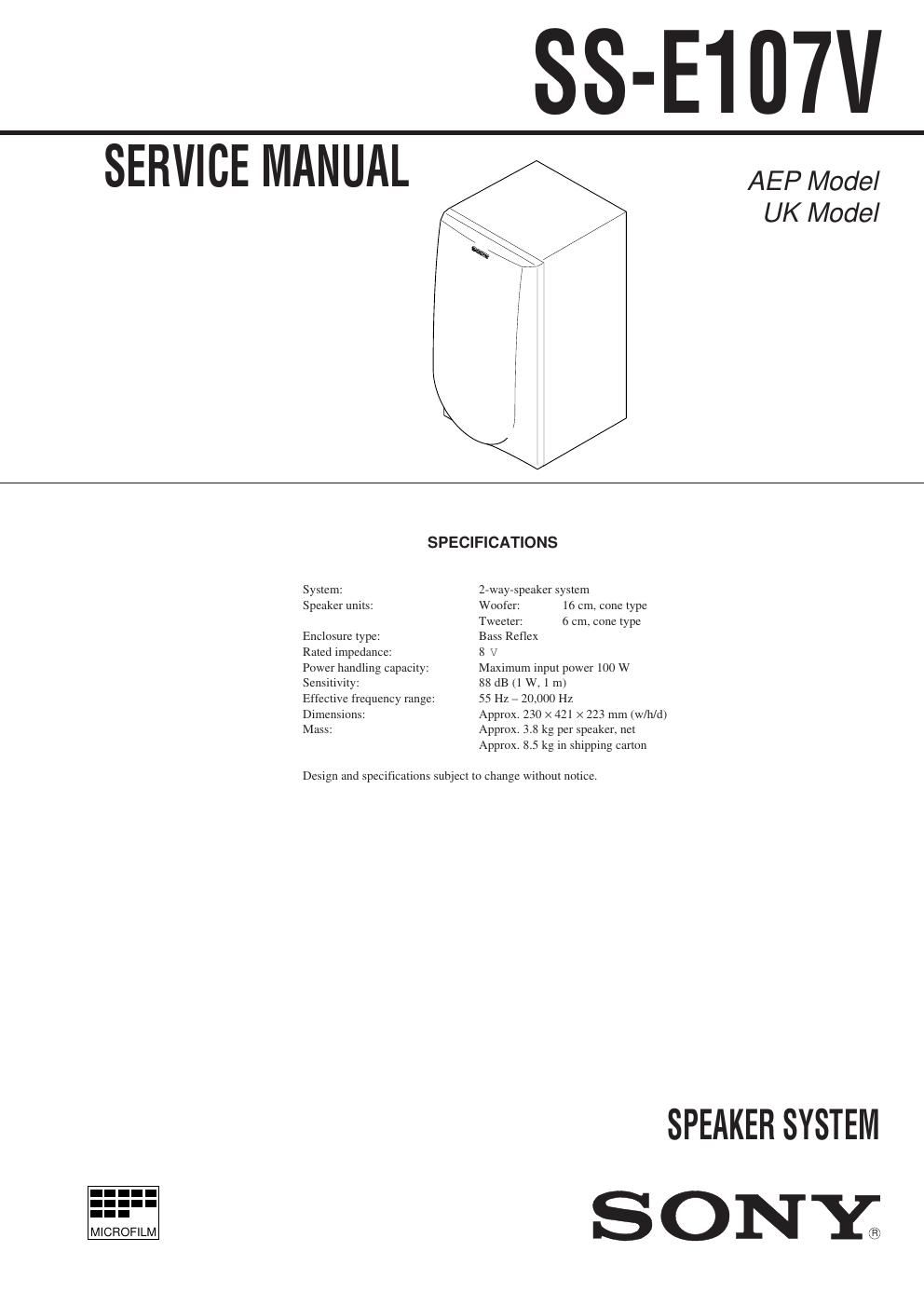

sony ss e 107 v service manual

Extracted text from sony ss e 107 v service manual (Ocr-read)

Page 1

SS-E107V Ñ 2 Ñ Sony Corporation Home A&V Products Company 97L7548-1 Printed in Germany © 1997. 12 Published by General Engineering Dept. (Shibaura) 9-922-748-11 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-861-475-01 INSTRUCTION MANUAL (ENGLISH,FRENCH,SPANISH,PORTUGUESE ,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH ,FINNISH,RUSSIAN,POLISH,CZECH ,HUNGARIAN) 1-751-496-11 SPEAKER CORD 1 X-4949-588-1 SPEAKER CABINET ASSY 2 X-4949-589-1 GRILL FRAME ASSY 3 1-783-188-11 INTERCONNECTING CORD 4 4-960-363-11 SCREW + B 3.5 X 16 5 1-553-954-11 TERMINAL BOARD SP1 1-504-834-11 SPEAKER (16CM) SP2 1-504-374-11 SPEAKER (6CM) 1 2 4 43 5 SP2 SP1
