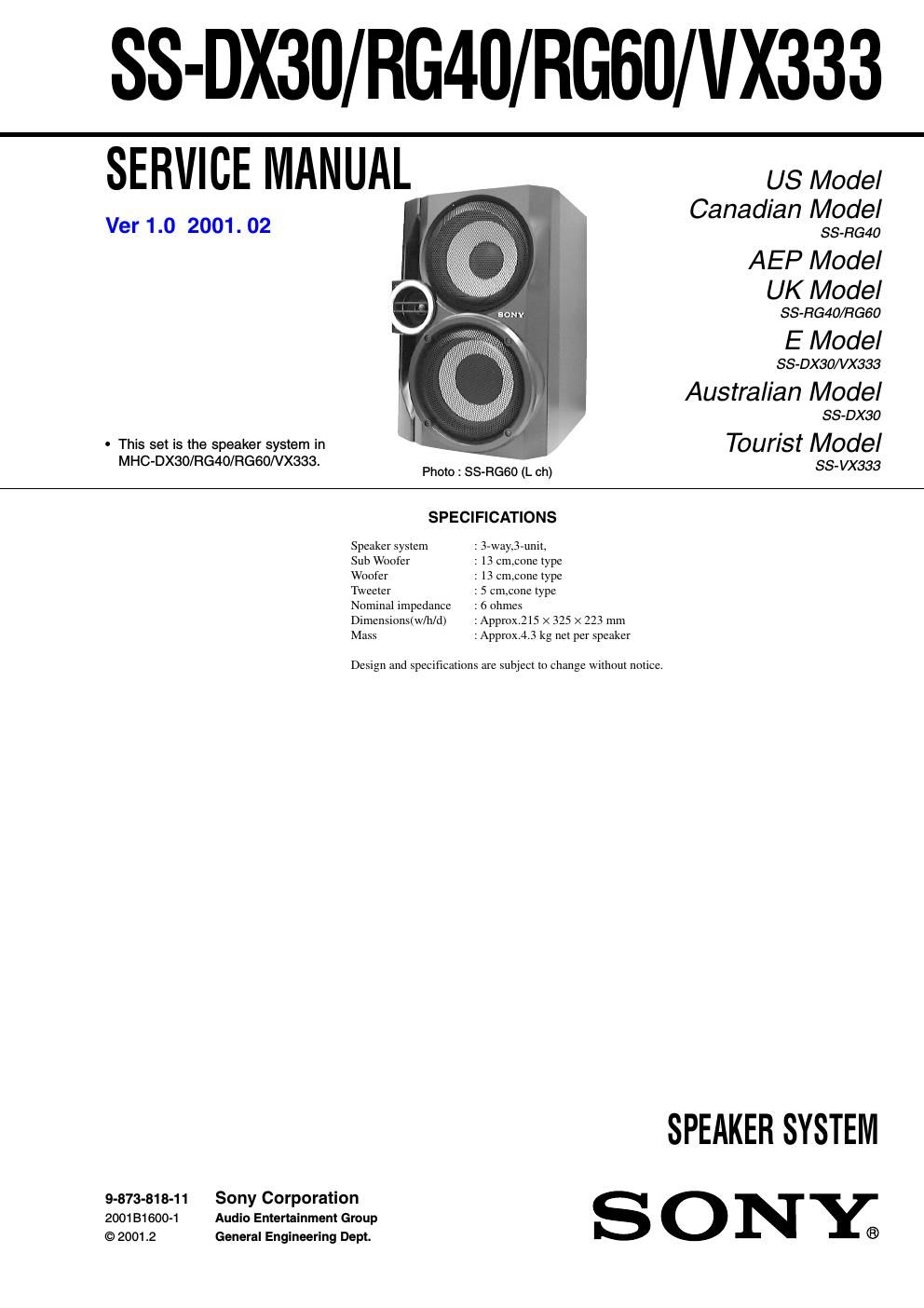

sony ss dx 30 service manual

Extracted text from sony ss dx 30 service manual (Ocr-read)

Page 1

2 SS-DX30/RG40/RG60/VX333 EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 A-4412-773-A FRONT PANEL (R) ASSY (DX30,VX333) 1 A-4412-777-A FRONT PANEL (R) ASSY (RG40,RG60) 1 A-4412-775-A FRONT PANEL (L) ASSY (DX30,VX333) 1 A-4412-779-A FRONT PANEL (L) ASSY (RG40,RG60) 2 4-874-614-11 SCREW (4) (3.5X14), TAPPING 3 1-529-933-11 SPEAKER (13cm)(DX30,RG40,RG60) 3 1-529-935-11 LOUD SPEAKER (13cm)(VX333)4 1-529-932-11 SPEAKER (TWEETER) (5cm) 5 1-529-934-11 SPEAKER (13cm)(DX30,RG40,RG60) 5 1-529-936-11 LOUD SPEAKER (13cm)(VX333) 6 A-4412-654-A SPEAKER CABINET (R) ASSY 6 A-4412-657-A SPEAKER CABINET (L) ASSY 7 4-942-029-01 PACKING S 1 2 2 4 6 2 7 2 2 3 5 R ch

Page 2

3 SS-DX30/RG40/RG60/VX333 MEMO
