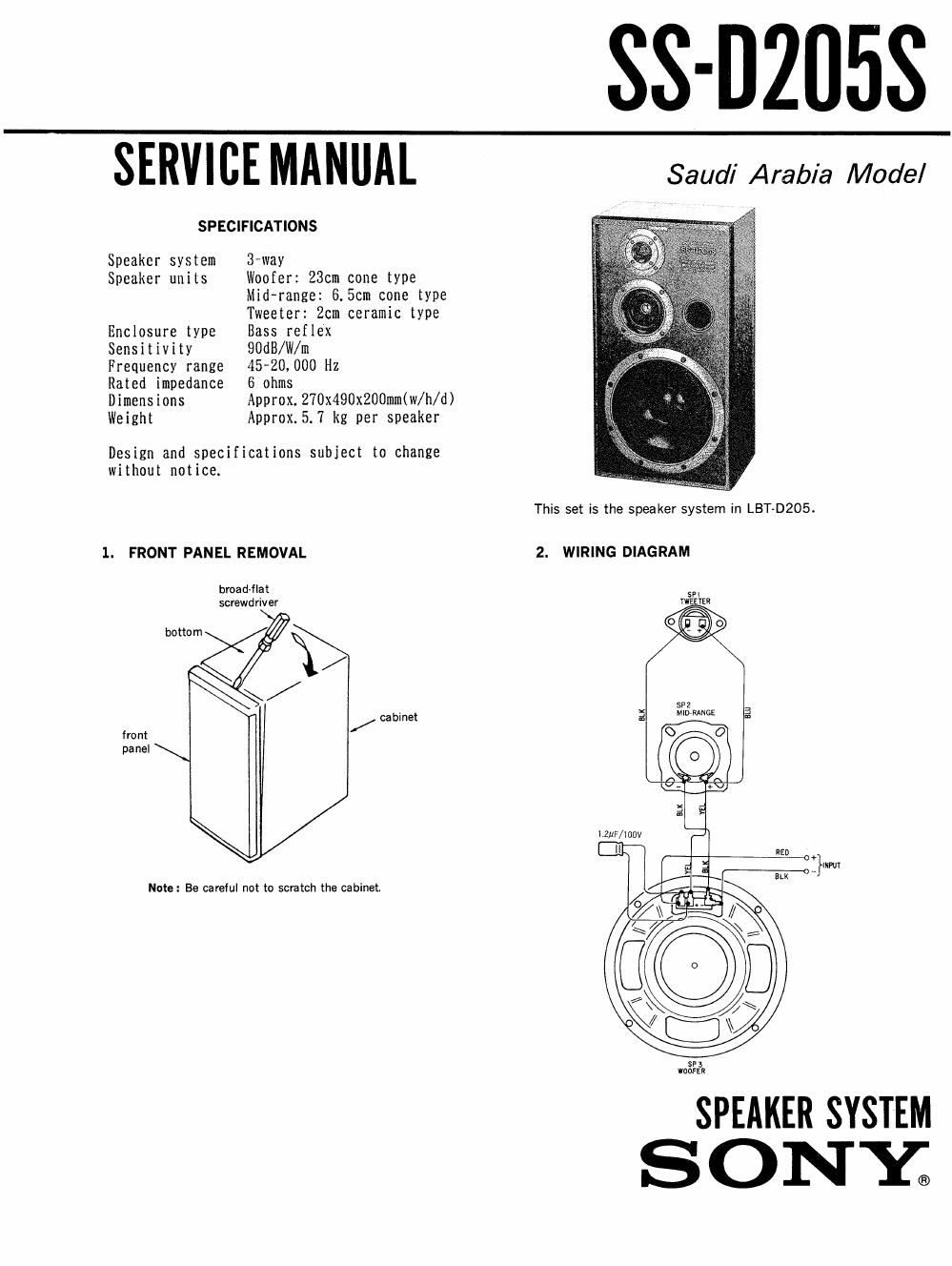

Page 1
88-02058
SERVICE MANUAL
SPECIFICATIONS
Speaker system Savoy
Speaker units Woofer: 23cm cone type
Mid-range: 6. 5cm cone type
Tweeter: 2cm ceramic type
Enclosure type Bass reflex
Sensitivity 90dB/W/m
Frequency range 45-20, 000 Hz
Rated impedance 6 ohms
Dimensions Approx. 270x490x200mm(w/h/d)
Weight Approx. 5.7 kg per speaker
Design and specifications subject to change
without notice.
1. FRONT PANEL REMOVAL
broa d-f lat
screwdriver
bottom
\/
\ /
ca bi net
fro nt /
pa nel
Note: Be caretui not to scratch the cabinet.
Saudi Arabia Model
This set is the speaker system in LBT-D205.
2. WIRING DIAGRAM
BLK
LZIIF/IUOV
I I use
+
. mew
nLk
\\ /\
/
6 D
rob/s
s? a
WDGFER
\
SPEAKER SYSTEM
SONE
Page 2
SS-DZOSS
3. EXPLODED VIEW AND PARTS LIST
NOTE:
0 .The mechanical parts with no reference 0 Items marked "k" are not stocked since
number in the exploded views are not they are seldom required for routine
suppliedL service. Some delay should be antici-
pated when ordering these iiems.
No. Part No. Description ELECTRICAL PARTS
I X-494l-436-I PANEL (L) ASSY, FRONT Ref.N0. Part No. Description
2 X-494l-437-l PANEL (R) ASSY, FRONT
901 I~575~822-11 CORD, SPEAKER
X-4926-421~1 CABINET (L) ASSY, SPEAKER
X~4926-422-1 CABINET (R) ASSY, SPEAKER SP1 1-544-094'21 WOOFER
SP2 lv544093-21 MID-RANGE
5 4929-125-11 SCREW (M4X16). TAPPING SP3 1-544-135-21 TWEETER
ACCESSORY & PACKING MATERIAL
*4-923-029~01 CUSHION
English
' 91F0403-1
SONY C_orporatlon Printed In Japan
9-956-467-11 Audio Group © 1991. 6
_2_ Published by Customer Relations and Service Group
