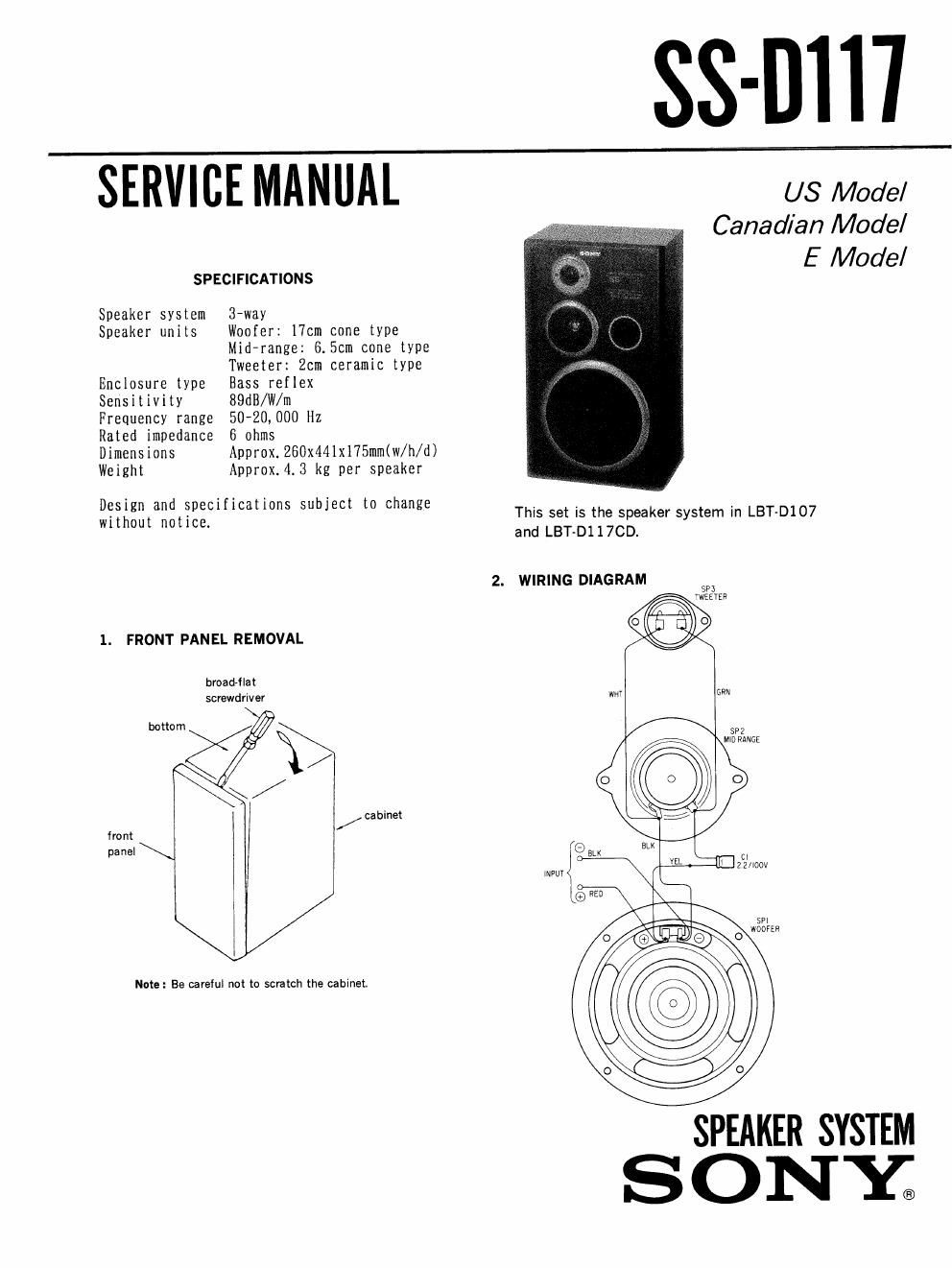

Page 1

mm A

SERVICE MANUAL us Model

Canad/an Model
E Model

SPECIFICATIONS

Speaker system 3-way

Speaker units Woofer: 17cm cone type
Mid-range: 5. 5cm cone type
Tweeter: 2cm ceramic type

Enclosure type Bass reerx

Sensitivity 89dB/W/m

Frequency range 50-20, 000 Hz

Rated impedance 6 ohms

Dimensions Approx. 260x441x175mm(w/h/d)

Weight Approx. 4.3 kg per speaker

Design and specifications subject to change

without notice. This set is the speaker system in LBT-D107

and LBT-D117CD.

2. WIRING DIAGRAM

SP}
YWEEYER

1. FRONT PANEL REMOVAL

broad-flat
screwdriver

cabinet

front
panel

Note: Be carefui not to scratch the cabinet.

SPEAKER SYSTEM
S 0 NY;

Page 2

SS-D117

3. EXPLODED VIEW AND PARTS LIST

NOTE:

0 The mechanical parts with no reference
number in the exploded views are not
supplied.

0 Items marked 11 are not stocked since
they are seldom required for routine
service. Some delay should be antici»
Dated when ordering these items.

Illust: R-CH

Ref. No.

Part No.

Description

-XX, -X mean standardized parts, so
they may have some differences from

the original one.

Color Indication of Appearance Parts

Example:

KNOB, BALANCE (WHITE)...IREDI

Parts Color

Part No.

l
Cabinets Color

Remark

Description

I X-4942-343-1
Z X-4942-344-I
3 * X-4942-354-1
A i: X-4942-355rl
5 4-874-6141'6!
6 1-575-696-II

9-957-1 38-1 1

PANEL (L) ASSY. fRONT
PANEL (R) ASSY. FRONT
CABINET (L) ASSY. SPEAKER
CABINET (R) ASSY. SPEAKER
SCREW (M3. 5X15)

CORD, SPEAKER (WITH (6))

Sony Corporation

Audio Group

izi

I-SAA-ASI-II SPEAKER (ISCM)
1-544-7I'l-l1 SPEAKER (60M)
1-544-453-11 SPEAKER (20M)

ACCESSORY R PACKING MATERIAL

* 4-936-544-01 CUSHION

English
92(204414
Printed in Japan
© 1992. 3

Published by Customer Relatlons and Service Group
