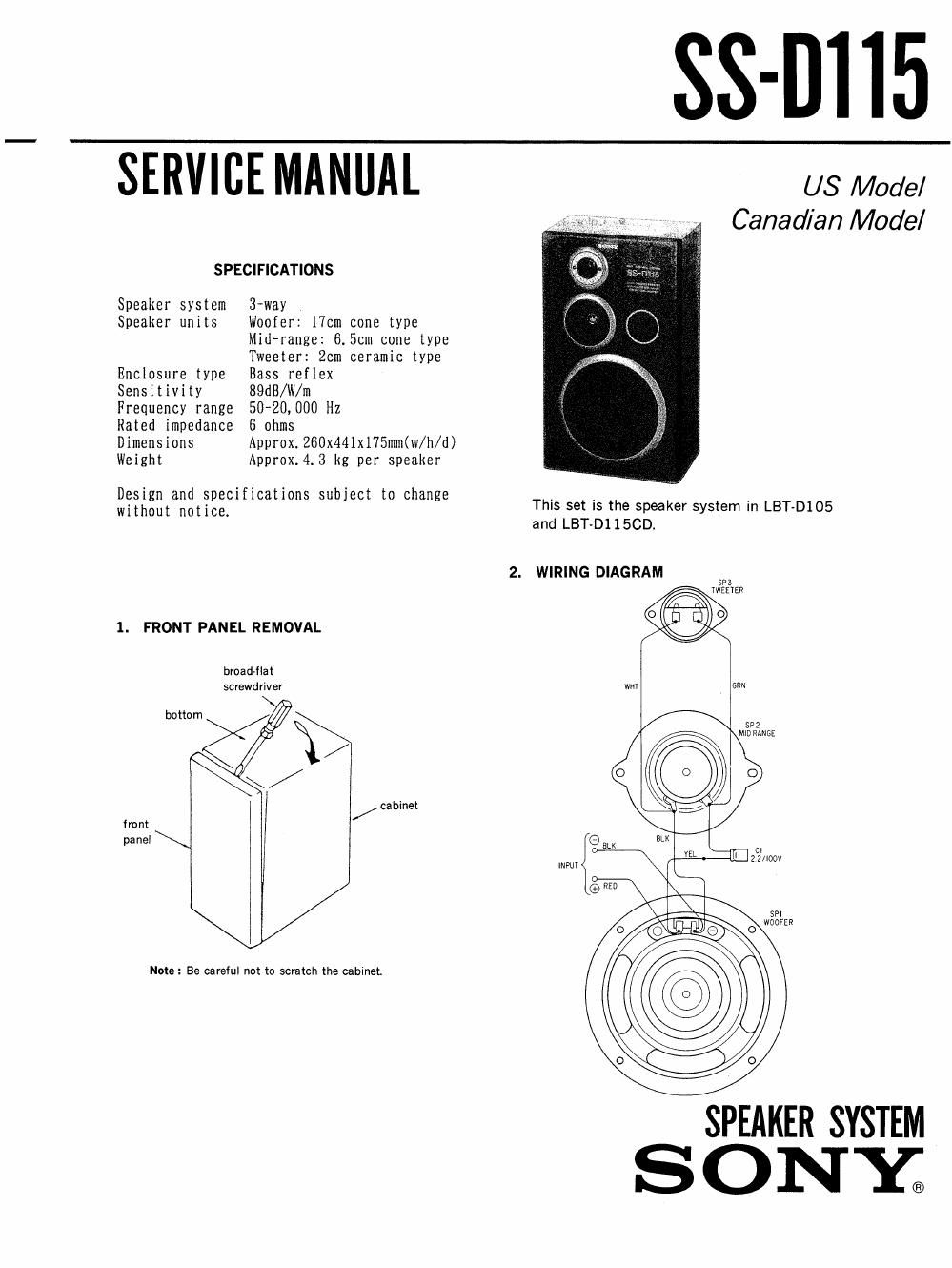

Page 1

SS-IIII5

SERVICE MANUAL

SPECIFICATIONS

Speaker system 3-way

Speaker units Woofer: I7cm cone type
Mldrrange: 6. 5cm cone type
Tweeter: 20m ceramic type

Enclosure type Bass reflex

Sensitivity 89dB/W/m

Frequency range 50*20, 000 Hz

Rated impedance 6 ohms

Dimensions Approx. 260x441x175mm(w/h/d)

Weight Approx. 4.3 kg per speaker

Design and specifications subject to change
without notice.

1. FRONT PANEL REMOVAL

broad-flat
screwd river

ca binet
/

front
panel

Note: Be careful not to scratch the cabinet

U8 Mode/
Canadian Mode/

This set is the speaker system in LBT-DlOS
and LBT-DllSCD.

2. WIRING DIAGRAM

SP2
Mm RANGE

mew

sPI
WDOFER

SPEAKER SYS:M

SONY

Page 2

SS-D115

3. EXPLODED VIEW AND PARTS LIST

NOTE:
0 The mechanical parts with no reference 0

number in the exploded views are not

supplied. the original one.
0 Items marked "* are not stocked since 0

they are seldom required for routine

service.

Example:
Some delay should be antici»

pated when ordering these items.

Illust: R~CH

1
Parts Color

~XX, -X mean standardized parts, so
they may have some differences from

Color Indication of Appearance Parts

KNOB, BALANCE (WHITE)...(RED)

I
Cabinets Color

Ref.No, Part No. Description Remark Ref.No Part No. Description Remark
1 X~4941-43l-I PANEL (I) ASSV. FRONT 3P1 1-544-135-21 SPEAKER (1.60M)
Z X-4941-432-i PANEL (R) ASSV, FRONT SP2 1-544-205>2I SPEAKER (GCM)
3 * X~4926-dll-l CABINET (L) ASSY. SPEAKER SP3 1-544469-11 SPEAKER (IGCM)
4 * X4926-4lZ-1 CABINET (R) ASSVI SPEAKER
5 4»374514~6I SCREW (M3i 5X16)
G 1575-685-11 CORD. SPEAKER (WITH ((1))
ACCESSORY & PACKING MATERIAL
2 4-936-544-01 CUSHION
English
. 91c0435-1
Sony Corporation Primedin Japan
9-956-306-11 Audio Group © 1991. 3

V2-

Published by Customer Relations and Service Group
