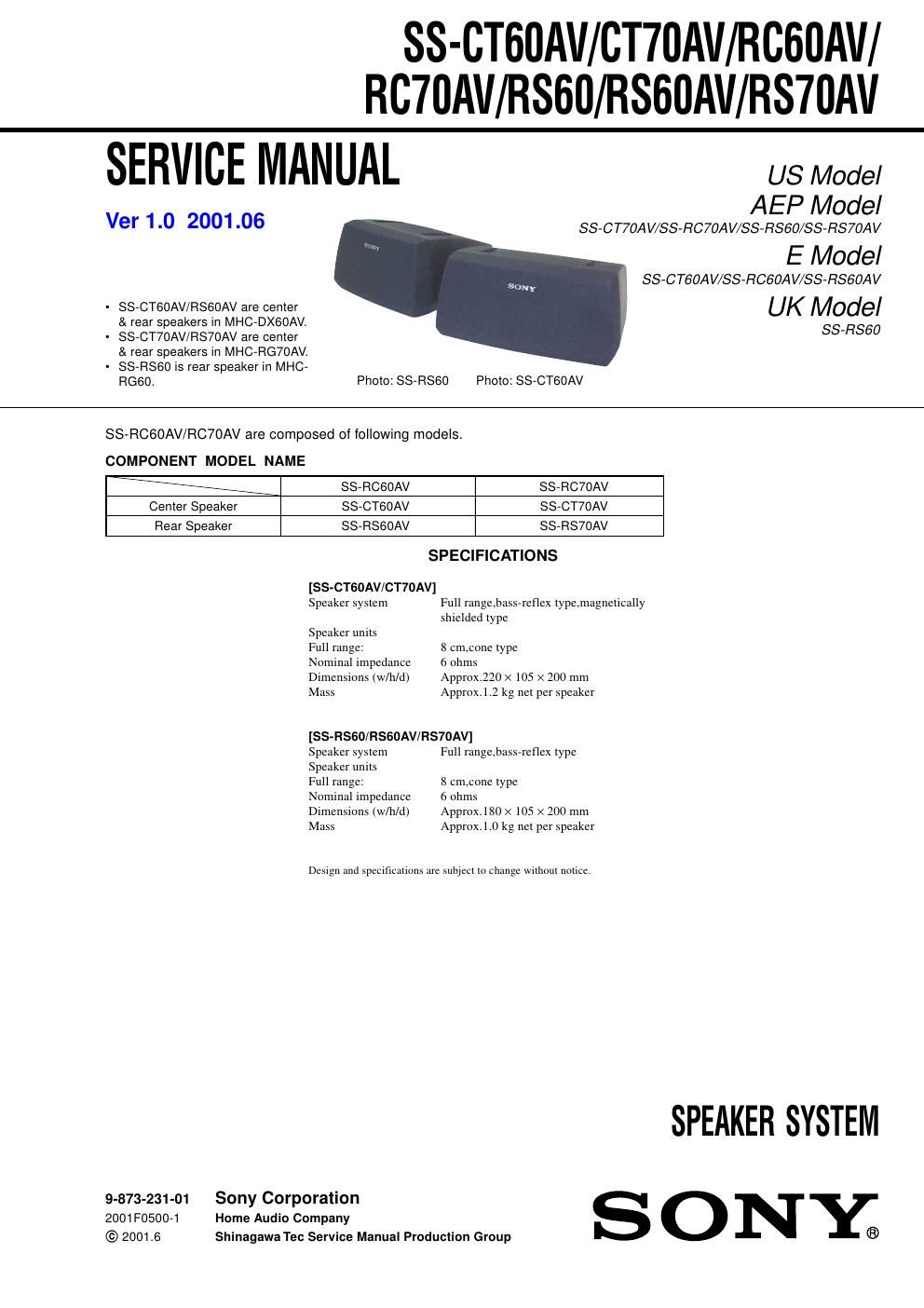

Extracted text from sony ss ct 60 av service manual (Ocr-read)
Page 1
2
SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV
EXPLODED VIEWS AND PARTS LIST
(1) SS-CT60AV/CT70AV
- Items marked * are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
- The mechanical parts with no reference num-
ber in the exploded views are not supplied. NOTE:
- -XX and -X mean standardized parts, so they
may have some difference from the original
one.
- Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
-†‘-†‘
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 7-685-648-79 SCREW +BVTP 3X12 SP1 1-544-926-11 SPEAKER (7cm)
1
not supplie d
not suppliednot supplied
SP1
Page 2
3
SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 7-685-648-79 SCREW +BVTP 3X12 SP2 1-544-927-11 SPEAKER (7cm)
(2) SS-RS60/RS60AV/RS70AV
51
not supplied
not supplied
not suppliedSP2
