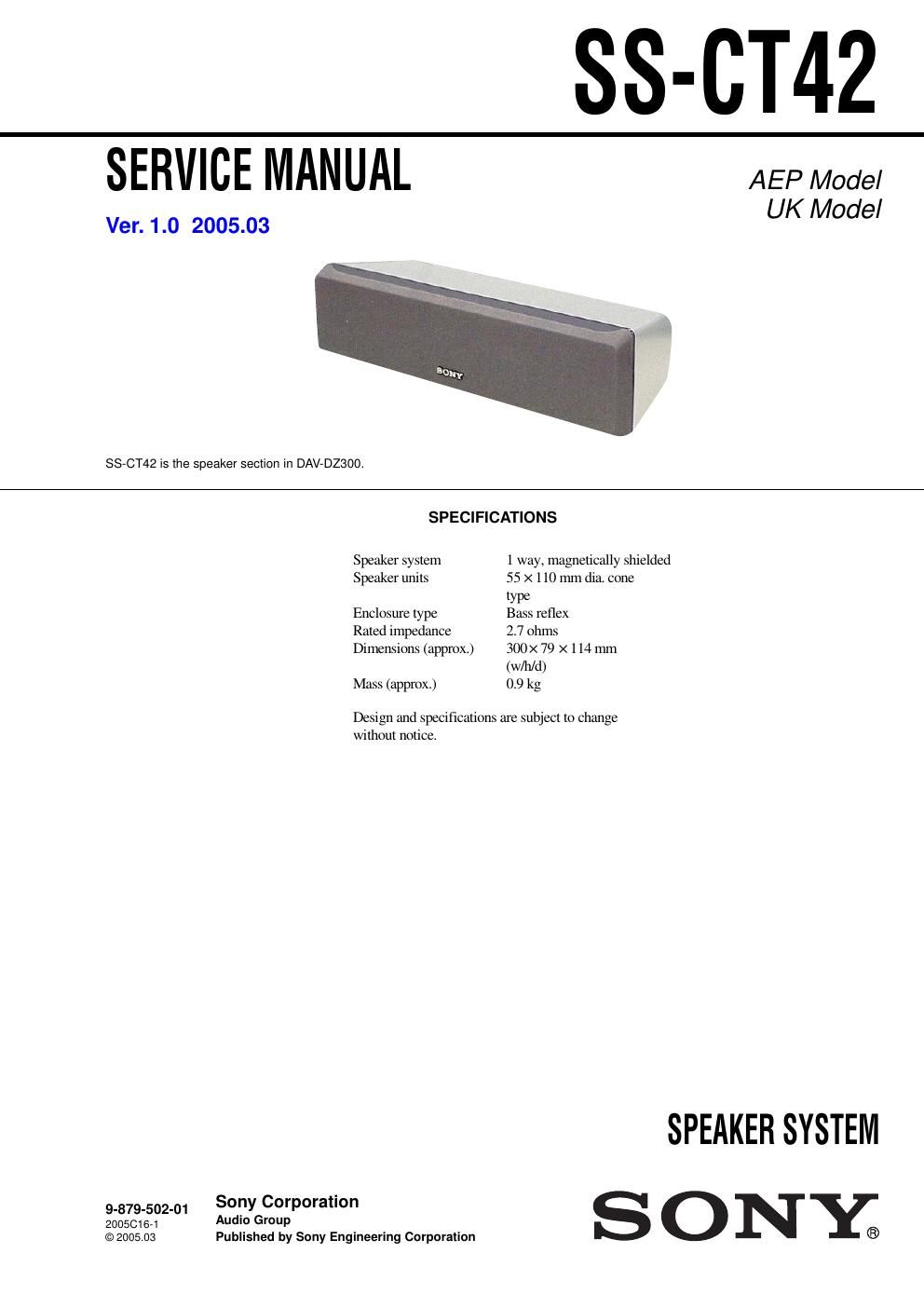

SS-CT42
EXPLODED VIEWS
NOTE:
-The mechanical parts with no reference
number in the exploded views are not supplied.-XX and -X mean standardized parts, so they
may have some difference from the original one.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1X-2050-737-1 ASSY, GRILLE FRAME (CLOTH)
24-874-614-81 +BVTP 3.5X16 TYPE2
32-048-751-01 SCREW +BVTP 3.5X14 TYPE244-255-545-01 FOOT
5A-1104-719-A OVERALL ASSY
SP1 1-826-187-11 SPEAKER (5.5X11cm)
1 2
2 2
3
4
SP1 not
suppliednot
suppliednot
suppliednot
supplied
not
supplied
not
supplied
5
