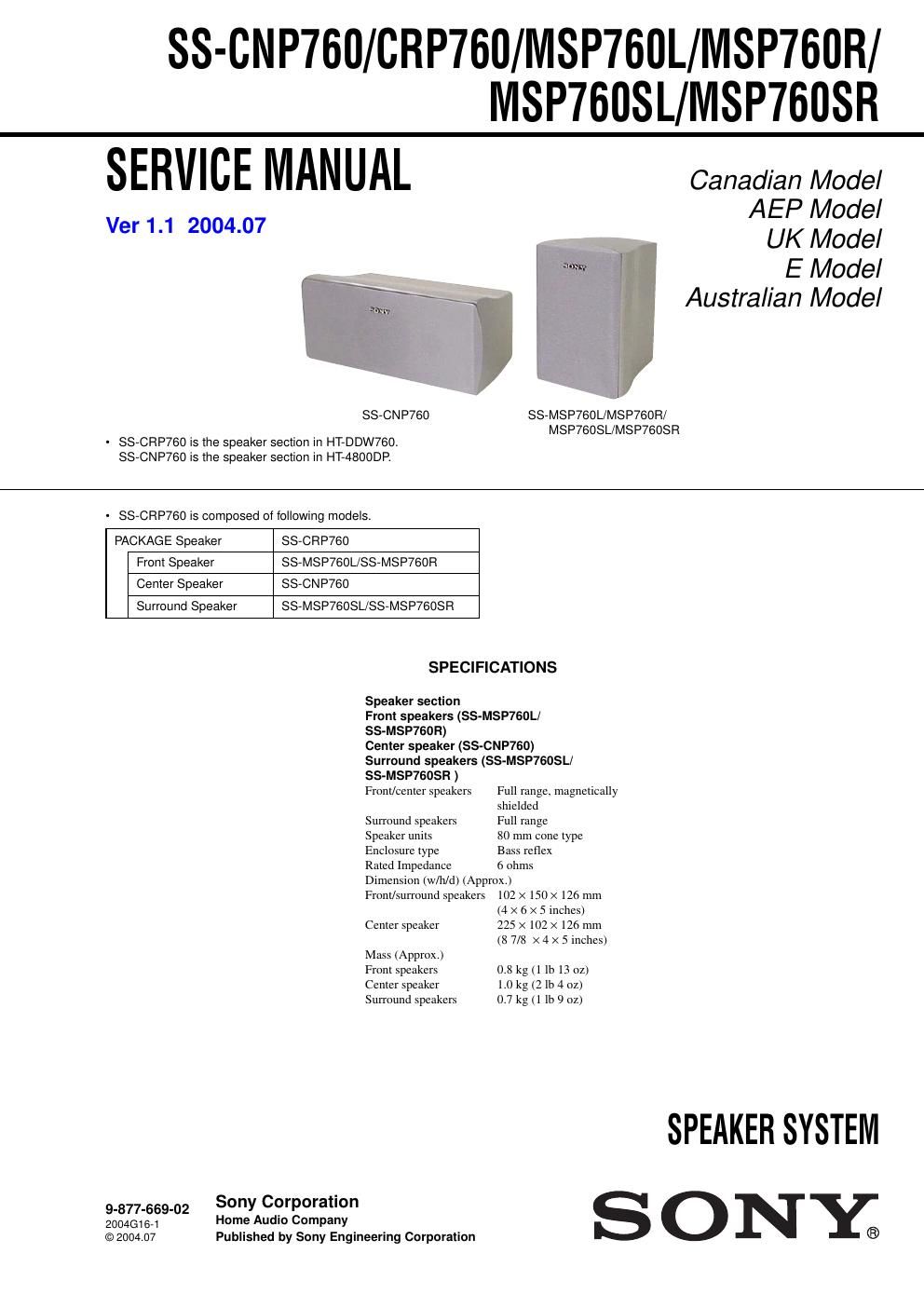

Extracted text from sony ss crp 760 service manual (Ocr-read)
Page 1
2
SS-CNP760/CRP760/MSP760L/MSP760R/MSP760SL/MSP760SREXPLODED VIEWS
NOTE:
-The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 A-4713-761-A OVERALL ASSY
2 1-694-516-11 TERMINAL, SPEAKER
3 4-246-231-01 SCREW (3.5X14)
4 4-986-971-02 SCREW (3.5)
SS-CNP760
--XX and -X mean standardized parts, so they
may have some difference from the original
one.
4 2
3
1
3
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
Page 2
3
SS-CNP760/CRP760/MSP760L/MSP760R/MSP760SL/MSP760SR
Ref. No. Part No. Description Remark
1 A-4713-765-A OVERALL ASSY
2 1-694-516-11 TERMINAL, SPEAKER
3 4-246-231-01 SCREW (3.5X14)
4 4-986-971-02 SCREW (3.5)
SS-MSP760L/MSP760R/MSP760SL/MSP760SR
4 3
2
3
not
supplied not
supplied
not
supplied
not
supplied
not
supplied
1
