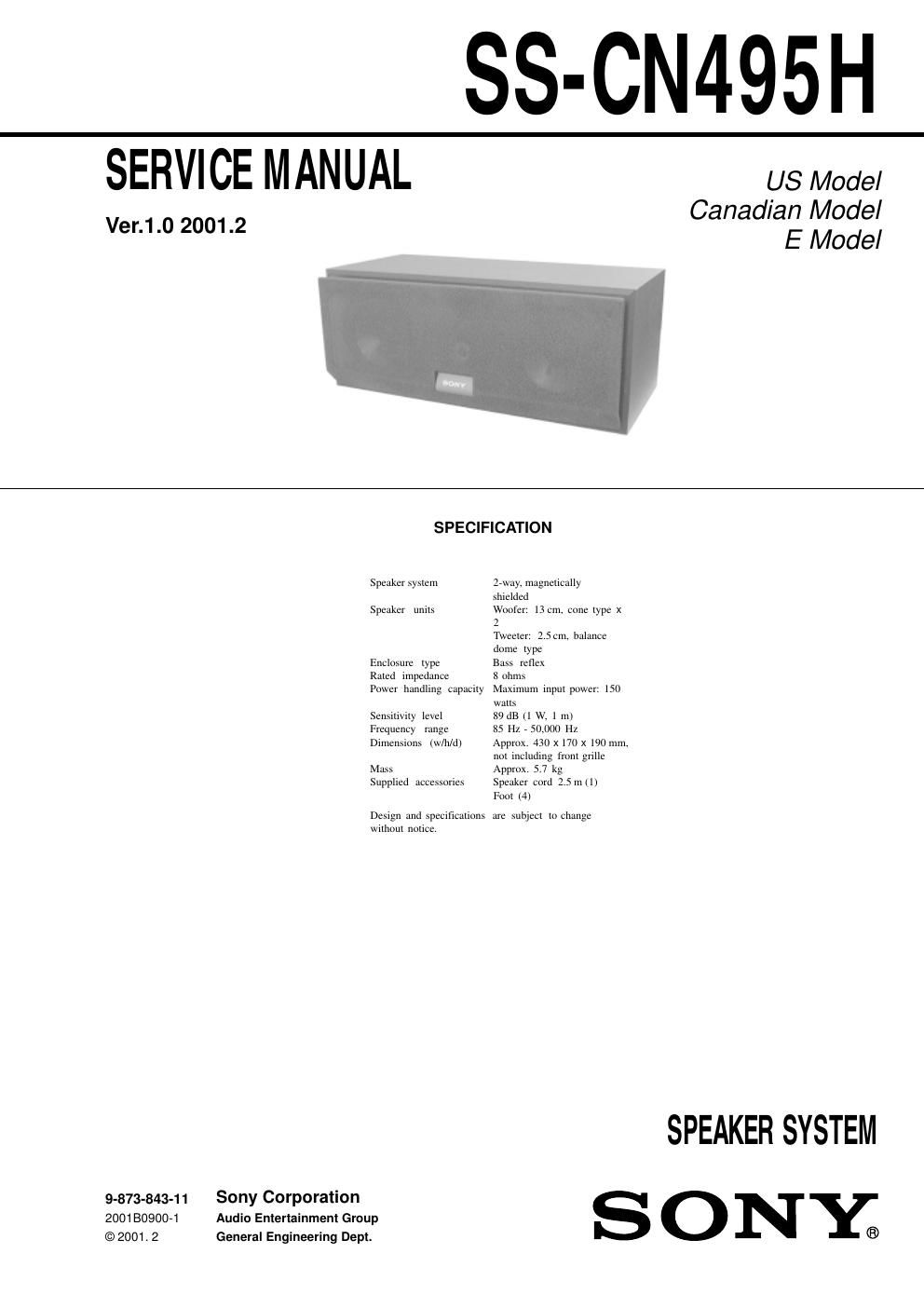

sony ss cn 495 h service manual

Extracted text from sony ss cn 495 h service manual (Ocr-read)

Page 1

2 Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“ EXPLODED VIEW AND PARTS LIST NOTE:- The mechanical parts with no reference num- ber in the exploded views are not supplied. 1 X-4953-665-1 FRAME ASSY, GRILLE 2 4-932-425-01 SCREW (3.5X20) 3 4-210-830-01 CATCHER 4 4-932-425-01 SCREW (3.5X20) 5 A-4735-225-A CABINET ASSY, SPEAKER 6 1-537-332-11 TERMINAL BOARD SP1 1-544-779-11 SPEAKER (13CM) SP2 1-544-779-11 SPEAKER (13CM) SP3 1-544-778-11 SPEAKER (2.5CM) SS-CN495H 1 2 2 2 23 3 4 45 6 SP1 SP2 SP3 ACCESSORIES & PACKING MATERIALS ******************************* 1-769-433-21 CORD, SPEAKER (2.5M) 4-972-322-01 FOOT (Y) 4-234-201-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH) Ref. No. Part No. Description Remark -“-“-“-“-“-“-“ -“-“-“-“-“-“-“ -“-“-“-“-“-“-“-“-“ -“-“-“-“-“-“

Page 2

3 SS-CN495H MEMO
