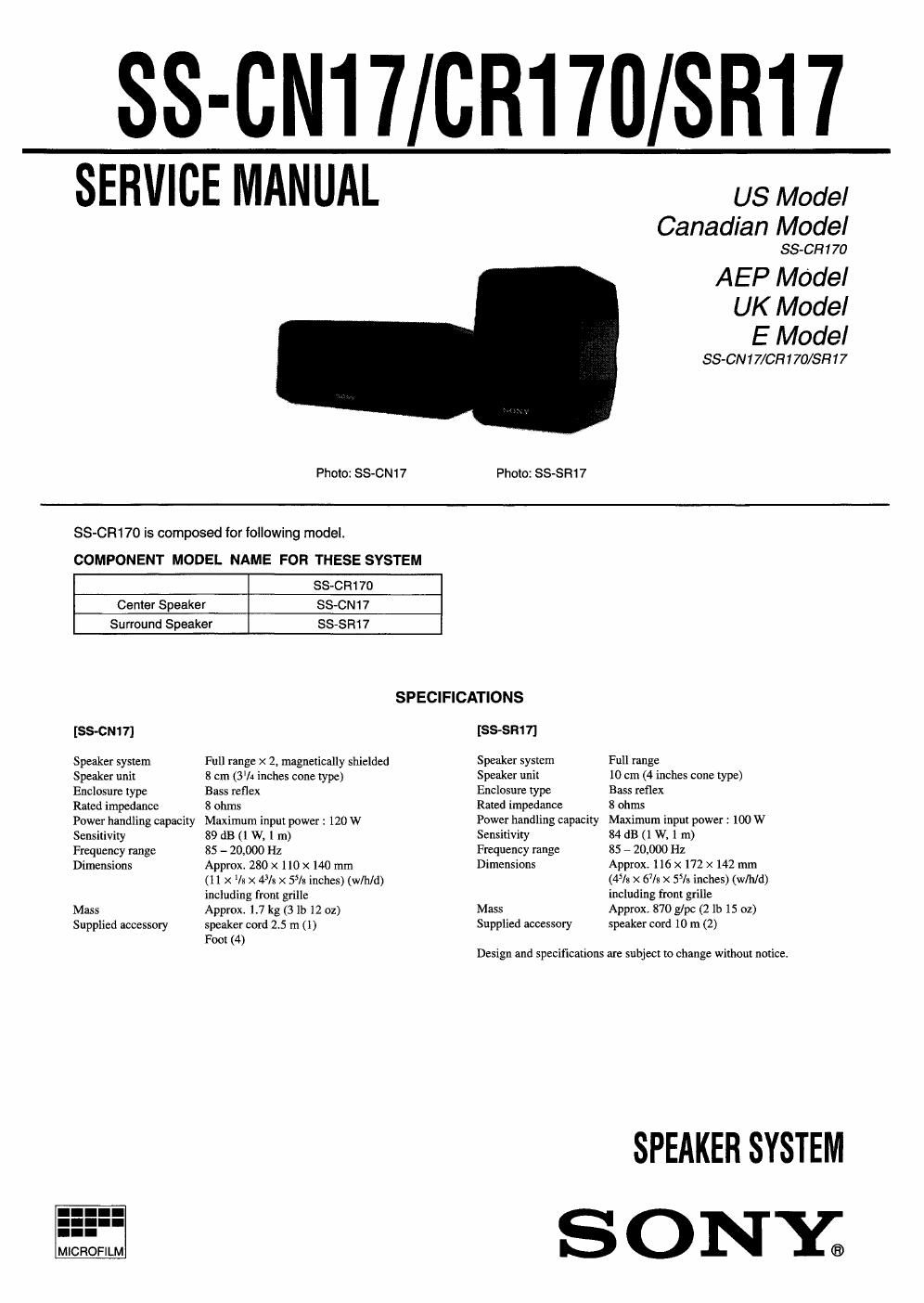

SS-CN17/CR170/_S___R17

SERVICE MANUAL us Model

Canadian Model

SS-CH170

AEP Model
UK Model
E Model

SS-CN17/CR170/SH17
Photo: SS~CN17 Photo: SS SS-CR170 is composed for following model.
COMPONENT MODEL NAME FOR THESE SYSTEM
SS-C R1 70
Center Speaker SS»CN17
Surround Speaker SS»SR17
SPECIFICATIONS
[SS-CN17) [SS-SR17]
Speaker system Full range X 2. magnetically shielded Speaker system Full range
Speaker unit 8 cm (3% inches cone type) Speaker unit 10 cm (4 inches cone type)
Enclosure type Bass reflex Enclosure type Bass reflex
Rated impedance 8 ohms Rated impedance 8 ohms
Power handling capacity Maximum input power : 120 W Power handling capacity Maximum input power : 100 W
Sensitivity 89 dB (1 W, l m) Sensitivity 84 dB (1 W, l m)
Frequency range 85 - 20.000 Hz Frequency range 85 - 20,000 Hz
Dimensions Approx. 280 x 110 x 140 mm Dimensions Approx 116 X 172 x 142 mm
(1 1 X la X 43/1; X 55/8 inches) (w/h/d) (4% X 67/3 X 5% inches) (wlhld)
including front grille including front grille
Mass Approx. 1.7 kg (31b l2 02) Mass Approx. 870 g/pc (2 lb 15 oz)
Supplied accessory speaker cord 25 m (l) Supplied accessory speaker cord 10 m (2)

Foot (4)
Design and specifications are subject to change without notice.

SPEAKER SYSTEM
